AXIS P1343-E Network Camera

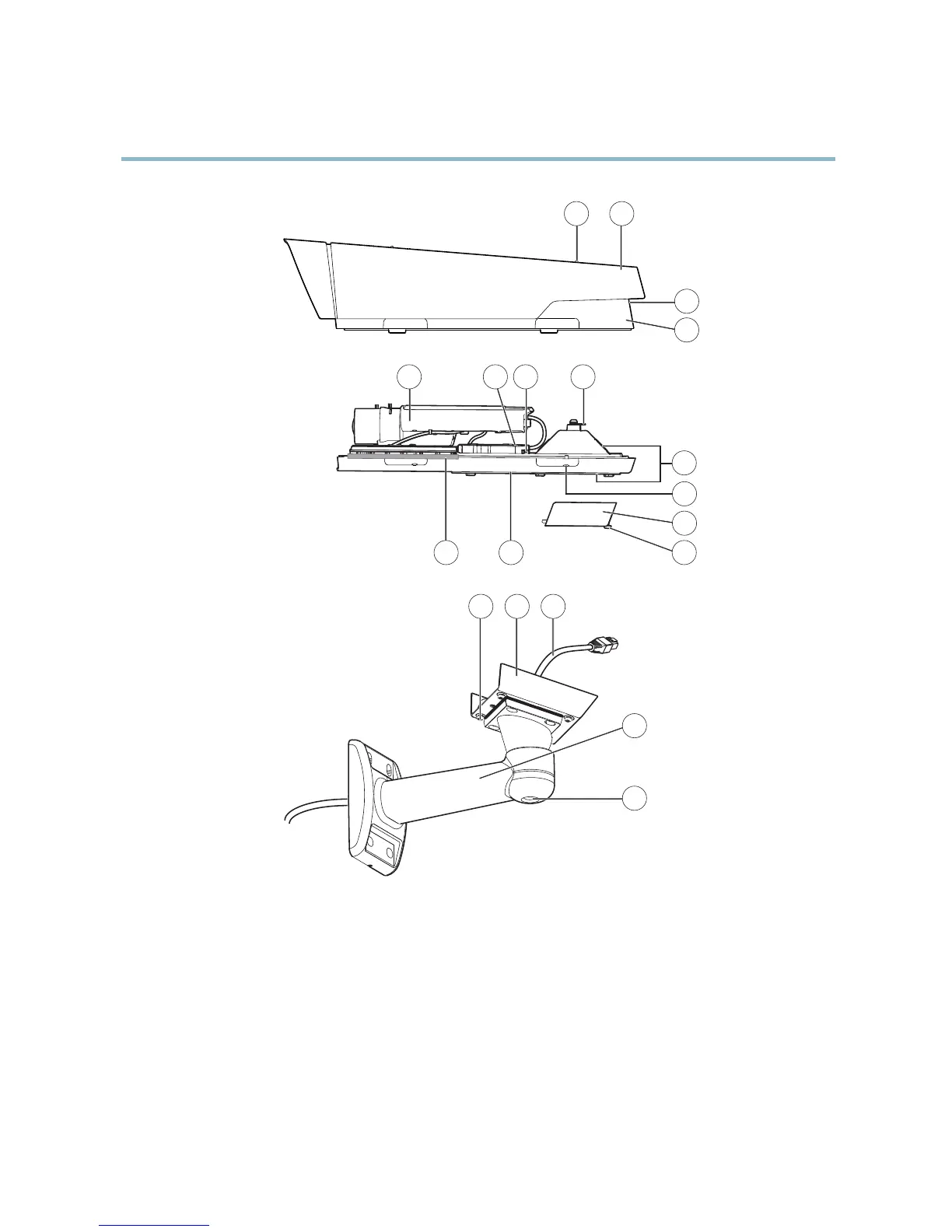

Hardware overview
10
1 2
3
4
5 76 8
9
11
12
14 13
18
19
15 16 17
1.
Sunshield adjustment screw (2x)
2.
Sunshield
3.
Product number (P/N) & Serial numb er (S/N). The serial number may be required during the installation.
4.
Top cover
5.
Network camera
6.
Housing LED indicator (fan and heater)
7.
Network connector
8.
Safety wire tab
9.
Cable holes
10.
Bottom cover screws ( 4x)
11.
Cable cover
12.
Cable cover screws (2x)
13.
Bottom cover
14.
Heaters. Caution! May be hot
