Axis P3346-VE - Hardware Overview

AXISP3346-VEFixedDomeNetworkCamera
HardwareOverview

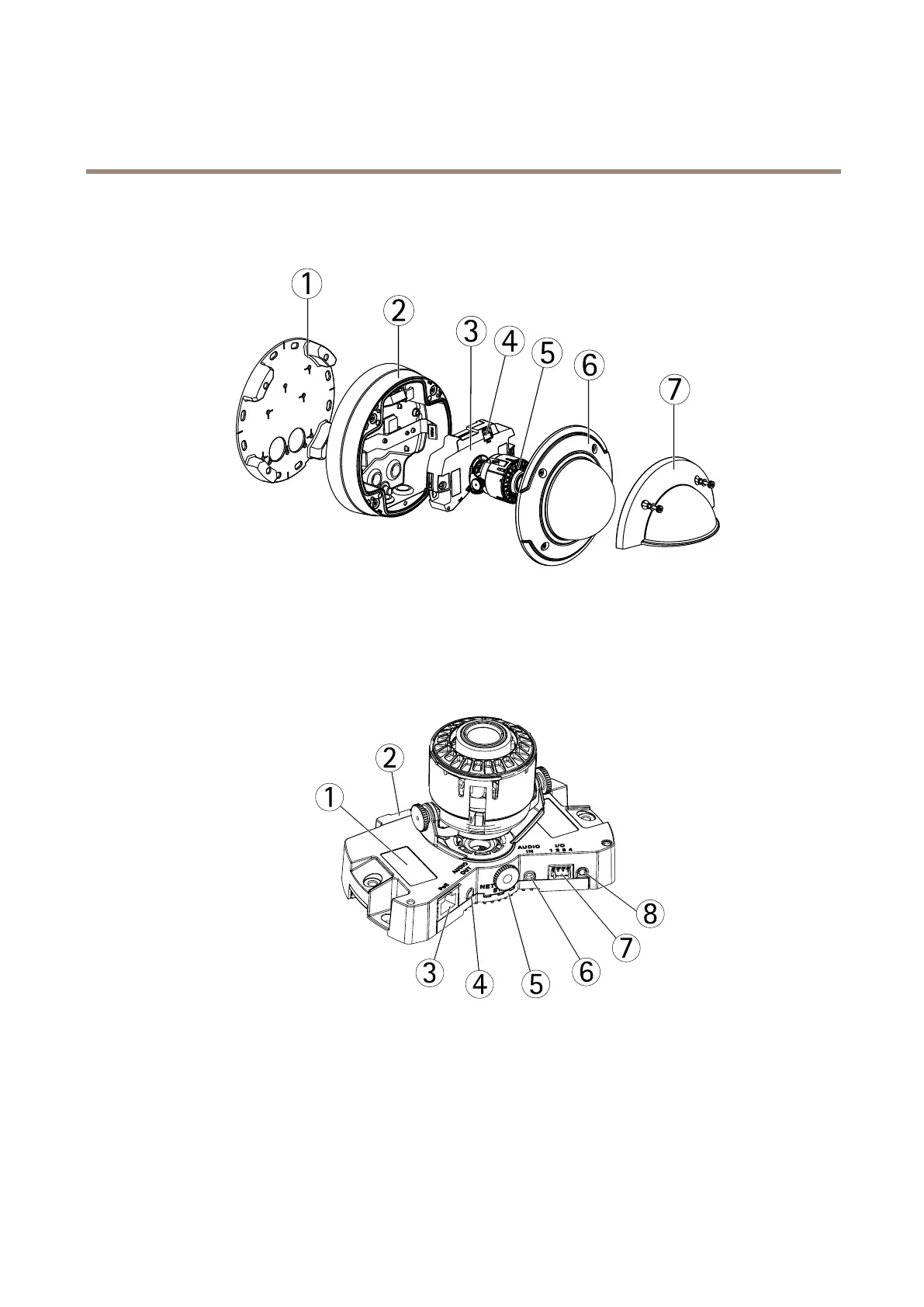

HardwareOverview
7
6
2
1
5
4
3
1
Mountingbracket
2
Unitcasing
3
Cameraunit
4
Fanoutputconnector
5
Heater.Caution!Theheatermaybehot.
6
Domecover
7
Weathershield
2
1
3
4
5
6
7
8
1
ProductIDandSerialnumber(S/N)
2
SDcardslot
3
Networkconnector(PoE)
4
Audioout
5
Network,StatusandPowerLEDindicators
6
Audioin
7
I/Oconnector
8
Controlbutton
