Axis P5512 - Hardware Overview

AXISP5512PTZDomeNetworkCamera
HardwareOverview
HardwareOverview
1
2
3
4
5
6
7
8
9
10
11

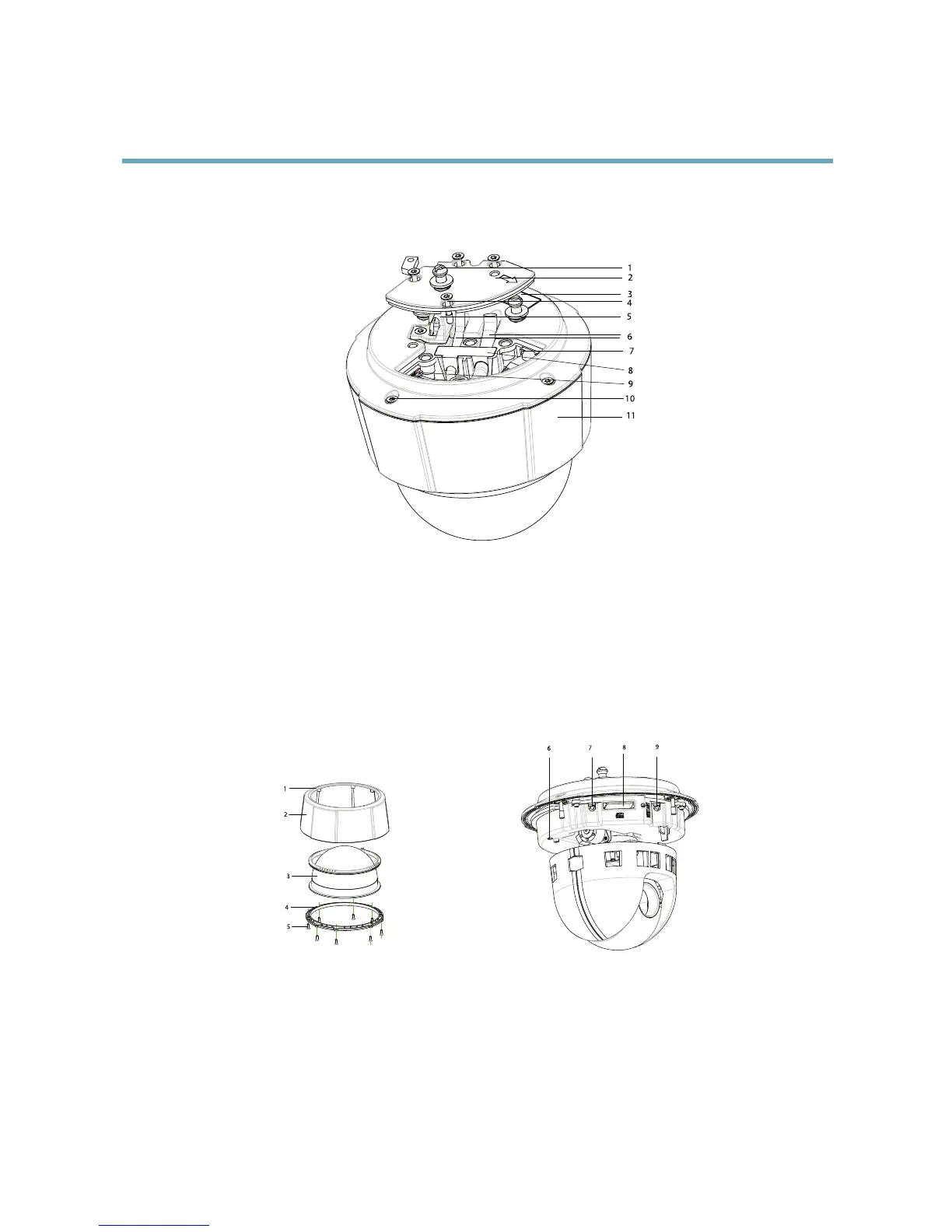

1.
Unitholders(3)
2.
Camerabaselid
3.
Partnumber(P/N)&Serialnumber(S/N).Theserialnumbermayberequiredduringtheinstallation.
4.
Camerabaselidscrews(4)
5.
Hookforsafetywire
6.
Cabletracks
7.
Networkconnector
8.
Rubbergasket
9.
Multiconnector
10.
Topcoverscrews(4)
11.
Topcover
1
2
3
4
5
6
7
8
9
1.
Ceilingring
2.
Topcover
3.
Domecover
4.
Domering
5.
Domeringscrews(8)
6.
StatusindicatorLED
7.
Controlbutton
8.
SDHCcardslot
9.
Restartbutton
6
