AXIS P5544 Installation Guide Page 15
ENGLISH

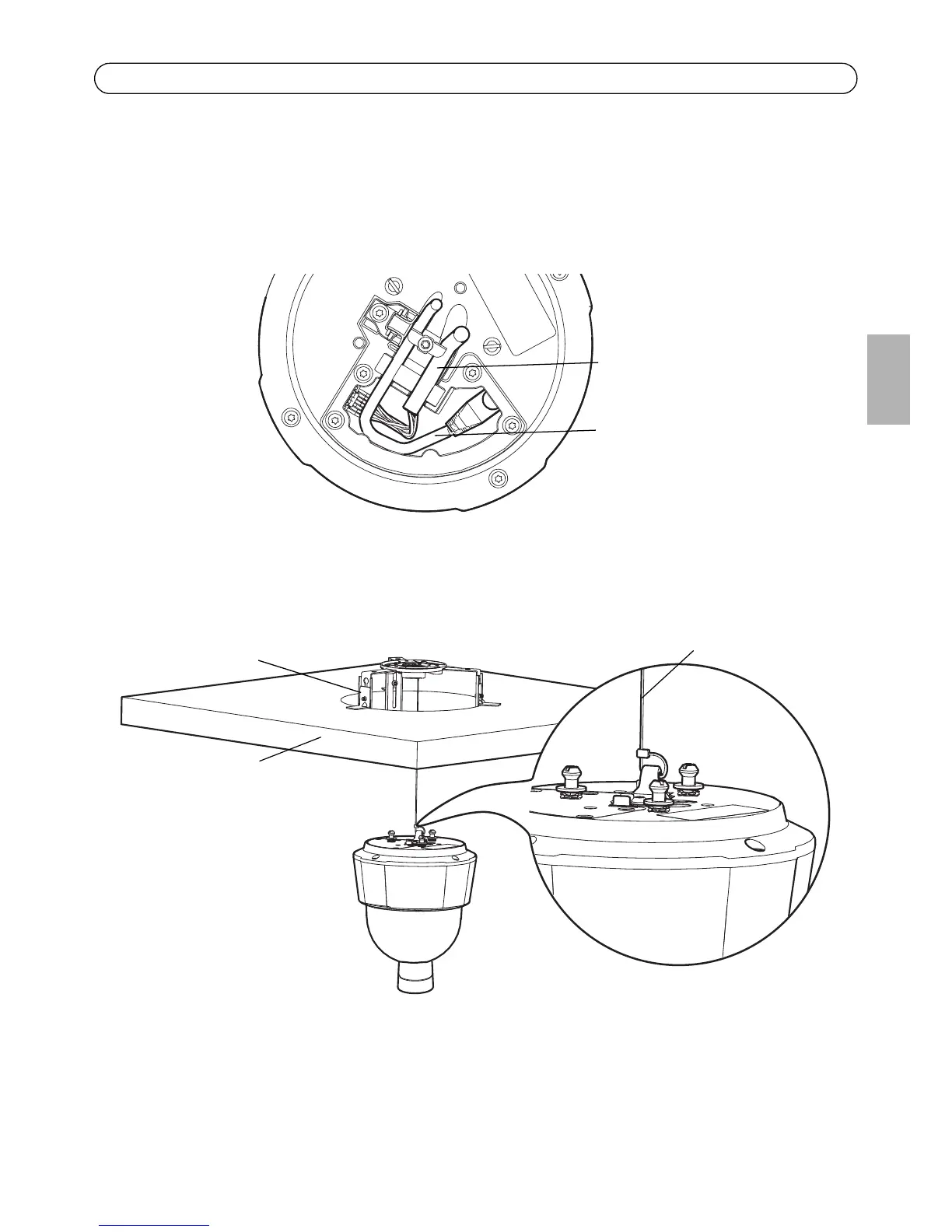

6. Loosen the 4 camera base lid screws and remove the camera base lid, see illustration on page 7.
7. Route and connect the network cable and the multi-connector cable, if applicable, to the
network camera. Be careful not to damage the cables when connecting them. Make sure the
foam gasket holes are aligned with the cable tracks and, if applicable, remove the cut-out piece
for the multi-connector cable from the foam gasket.
8. Put the camera base lid back in its original position and fasten the screws.
9. Secure the camera using the supplied safety wire.
10. Slide the unit holders on the network camera into the slots on the mounting plate and rotate
the camera unit.
11. Install the Axis midspan, see Install the Midspan, on page 17.
12. Check that the indicator LEDs on the midspan indicate the correct conditions. See the table on
page 11 for further details.
