AXIS P5544 Installation Guide Page 17
ENGLISH

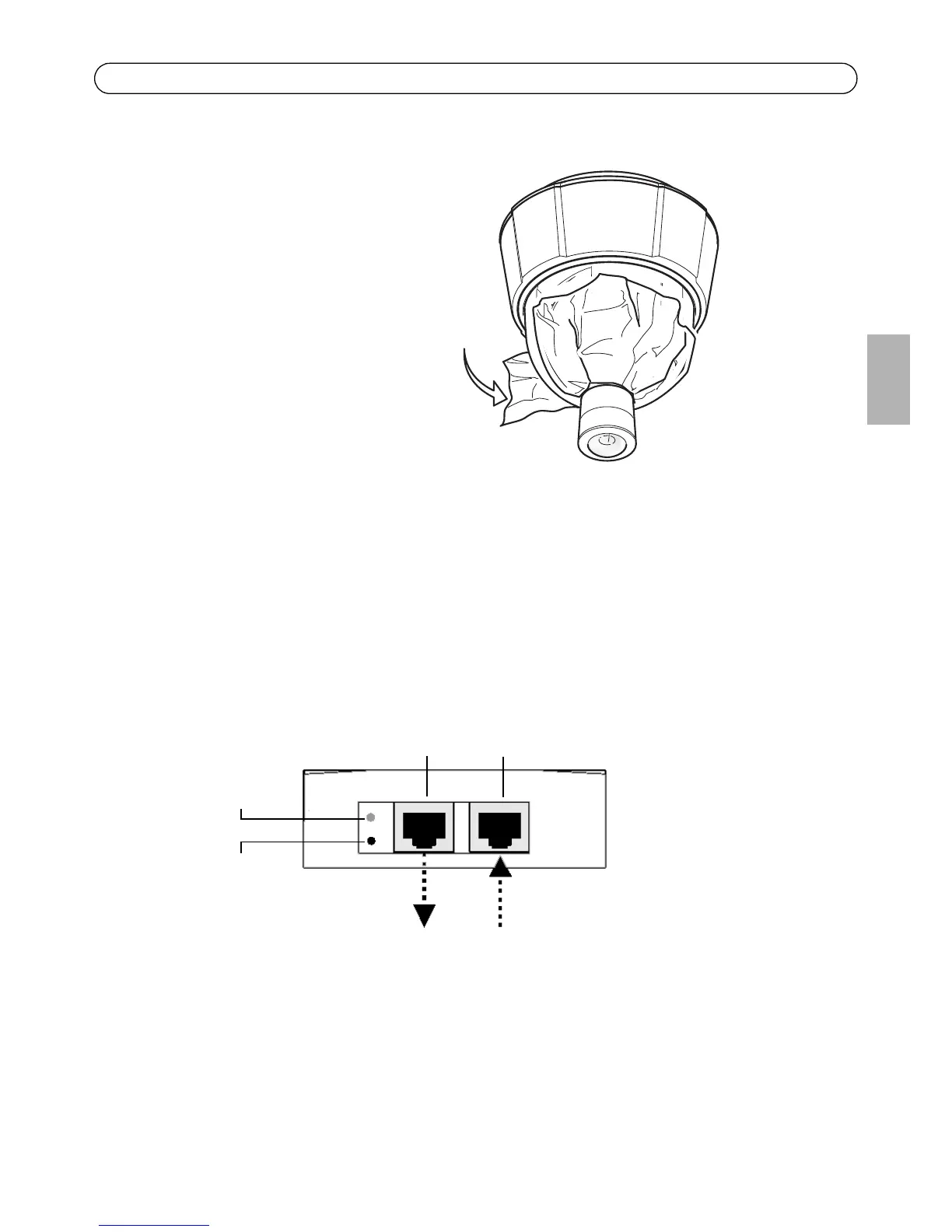

11. Remove the protective plastic film.
Install the Midspan
The supplied midspan enables Axis network video products with high power consumption to receive
data and power over the same Ethernet cable. Follow these instructions to connect the midspan.
1. Connect the midspan (Data in) to the network switch using a shielded network cable (STP).
2. Connect the midspan (Data and Power Out) to the network camera, using the network cable
that has been connected to the camera.
3. Connect the midspan to an AC outlet (100 – 240 V AC), using the supplied power cable.
For information on the LEDs on the midspan, see Midspan LED Indicators, on page 11.
