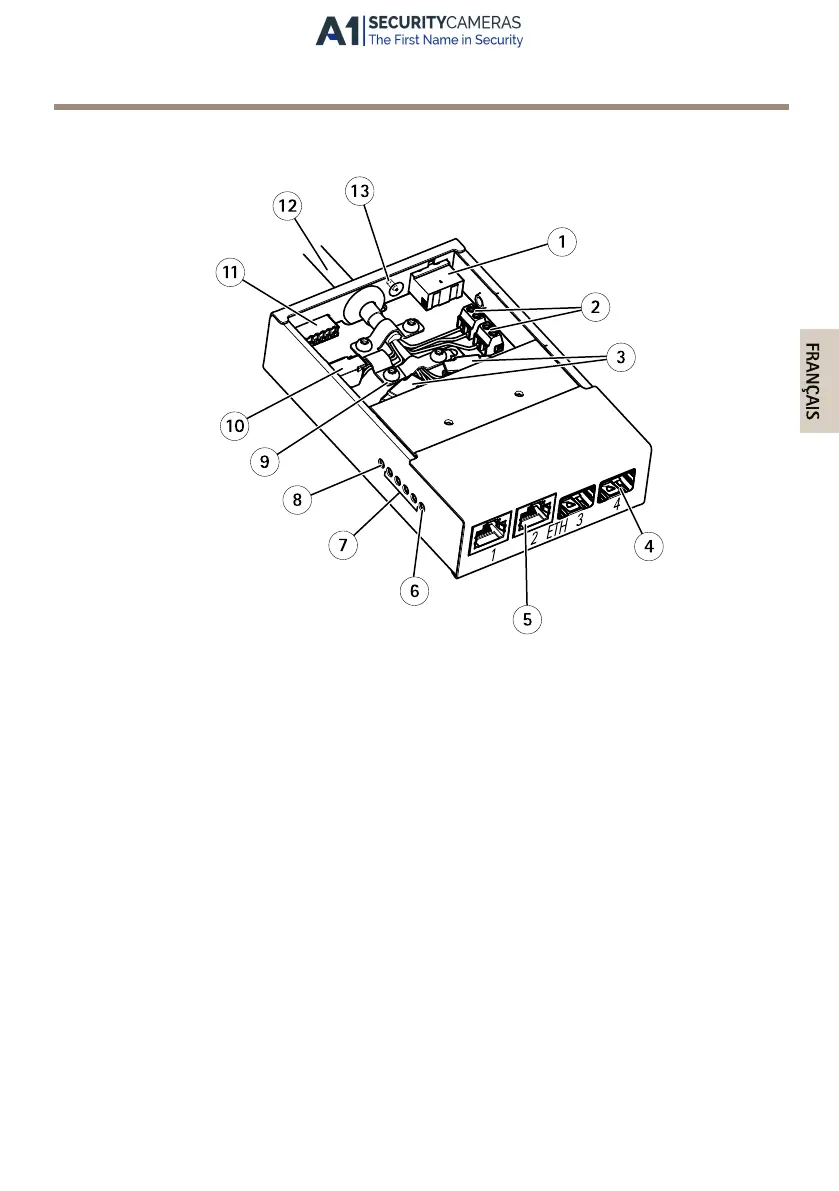

AXIS Q60-S Series
Commutateur de convertisseur de média
1
2
3
4
5
6
7
8
10
9
11
12
13
FRANÇAIS
1
Connecteur d'alimentation (entrée CC)
2
Connecteur d'alimentation (sortie CC)
3
Connecteur réseau (interne)
4
Emplacement réseau SFP (externe) (x2)
5
Connecteur réseau RJ45 (externe) (x2)
6
Voyant de la caméra
7
Voyant DEL réseau (x4)
8
Voyant DEL d’alimentation
9
Clip de mise à la masse
10
Connecteur E/S (externe)
11
Connecteur E/S (externe)
12
Câble multiconnecteurs
13
Vis de mise à la terre
