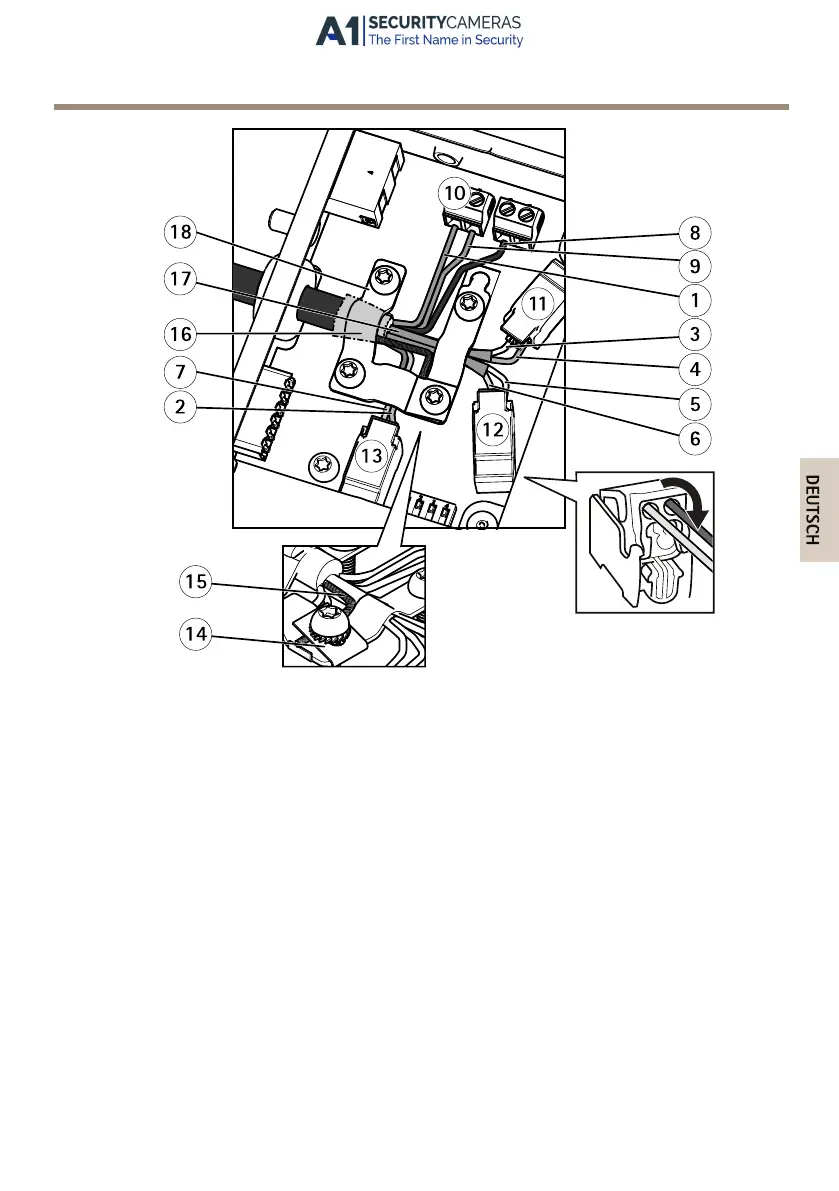

AXIS Q60-S Series
1
8
9
3
4
5
6
2
7
10
11
12
13
16
14
15
17
18
DEUTSCH
Stromkabel (rot)
Digitales E/A-Kabel (blau)
Ethernetkabel (grün/weiß)
Ethernetkabel (grün)
Ethernetkabel (orange/weiß)
Ethernetkabel (orange)
Digitales E/A-Kabel (gelb)
Massekabel (schwarz)
Stromkabel (rot)
Netzanschluss (Gleichstromausgang)
Ethernetanschluss (intern)
Ethernetanschluss (intern)
E/A-Anschluss (intern)
Masseklemme
Verdrillte Drahtgeechtabschirmung
Äußere Folienabschirmung
Abschirmung des Ethernetkabels (2x)
Halterung
