Axis S22 Series - Rear Side

AXISCameraStationS22ApplianceSeries
Productoverview

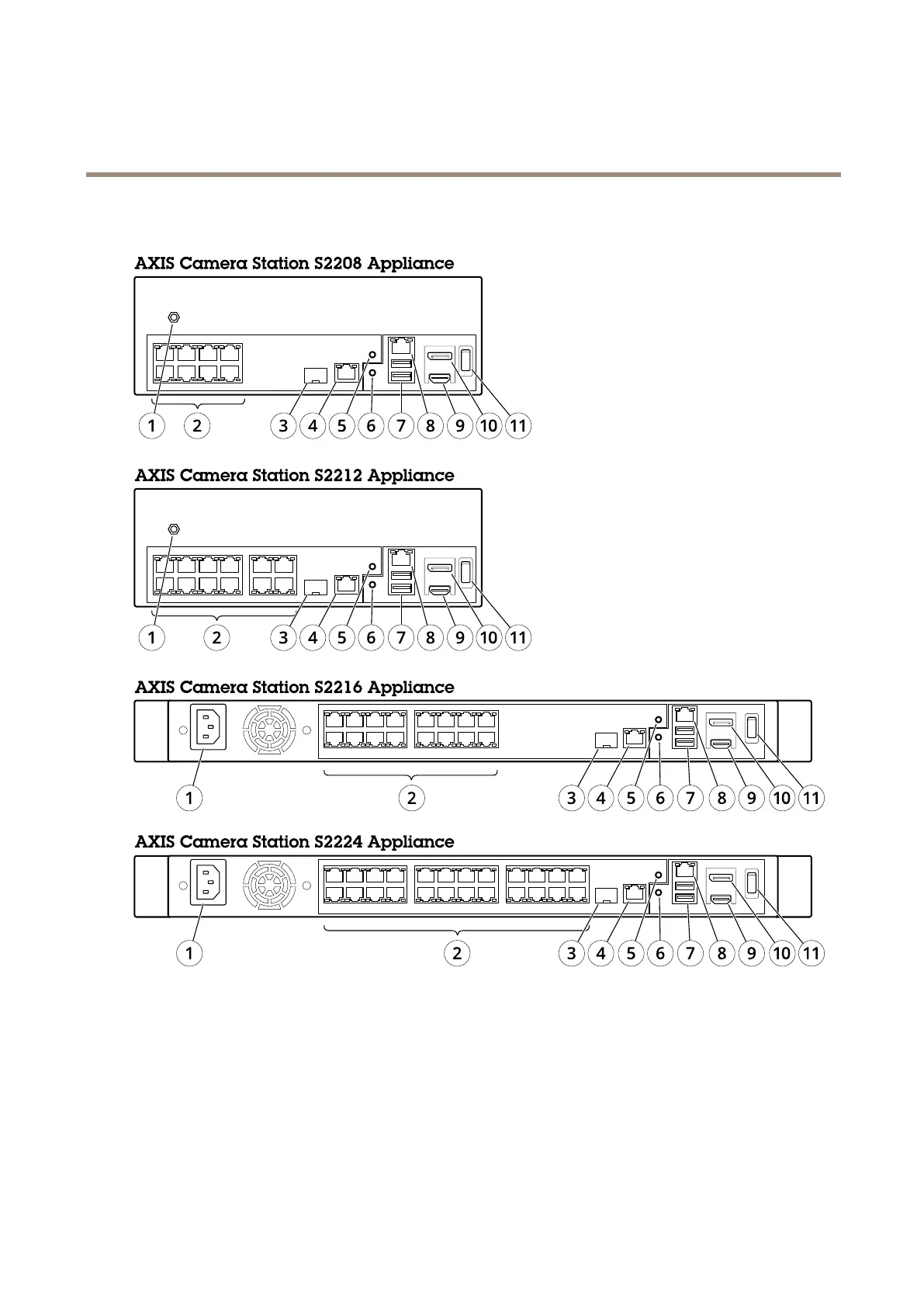

Rearside
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
9 11 13 15
10 12 14 16
1 3 5 7
2 4 6 8
9 11
10 12
1 3 5 7
2 4 6 8
9 11 13 15
10 12 14 16
17 19 21 23
18 20 22 24
1
Powerconnector
2
PoEports
3
SFPswitchuplink(U1)
4
RJ45switchuplink(U1)
5
Switchresetbutton
6
Serverresetbutton
7
USB2.0x2
8
RJ45serveruplink(U2)
9
HDMIport
10
Displayport
11
Powerbutton
