Initial Assembly...

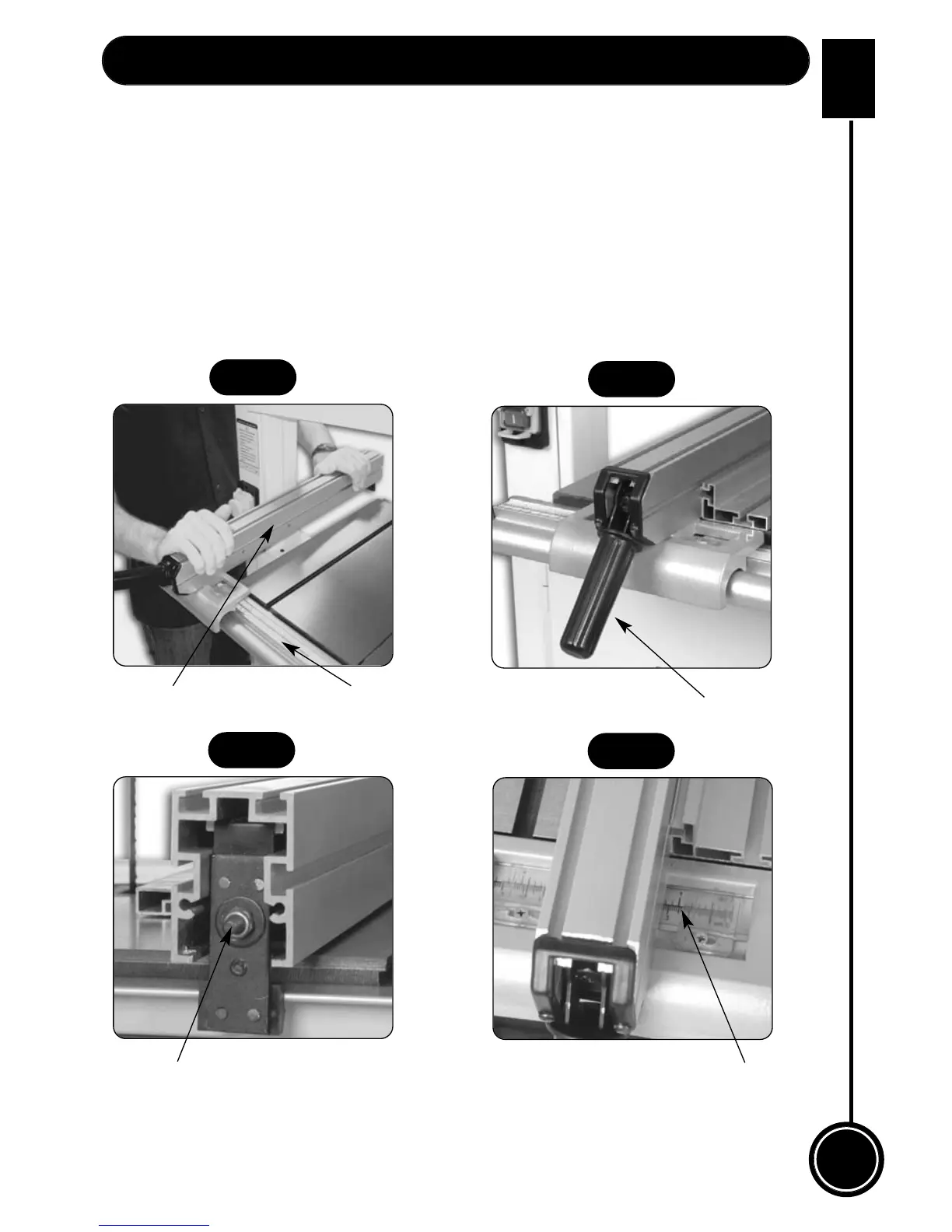

Fitting the guide fence
Fit the guide fence by clipping the rear clamp over the back rail first and dropping the front clamp
over the fence rail. (See fig 4) Push down on the lock lever, and ensure the fence clamps up correctly.
(See fig 4a) If not, adjust the clamping system by tightening or loosening the nut on the end of the
torsion rod at the rear end of the guide fence blade. (See fig 4b)
Check the guide fence is set parallel to the blade. Any slight discrepancy can be taken out by
loosening the 4 No. butterfly bolts that secure the blade of the guide fence to the clamping body,
adjust and re-tighten. Larger discrepancies may require that the fence rail is angled slightly.
The dimensioning scales have adjustable index plates set in the fence guide front clamp body to
enable the scales to be zero read. (See fig 4c)
Fig 4
Fig 4a
Fig 4b
Fig 4c
Lock lever
Torsion rod
Dimensioning scale
Guide fence
Fence rail
