Mounting the saw table
The saw table can be fitted without removing the blade, however, if you would feel more comfortable not
having to manoeuvre the table around the blade (the table is quite heavy), remove the blade by opening
the top and bottom covers and release the tension on the blade by backing off the tensioning wheel.

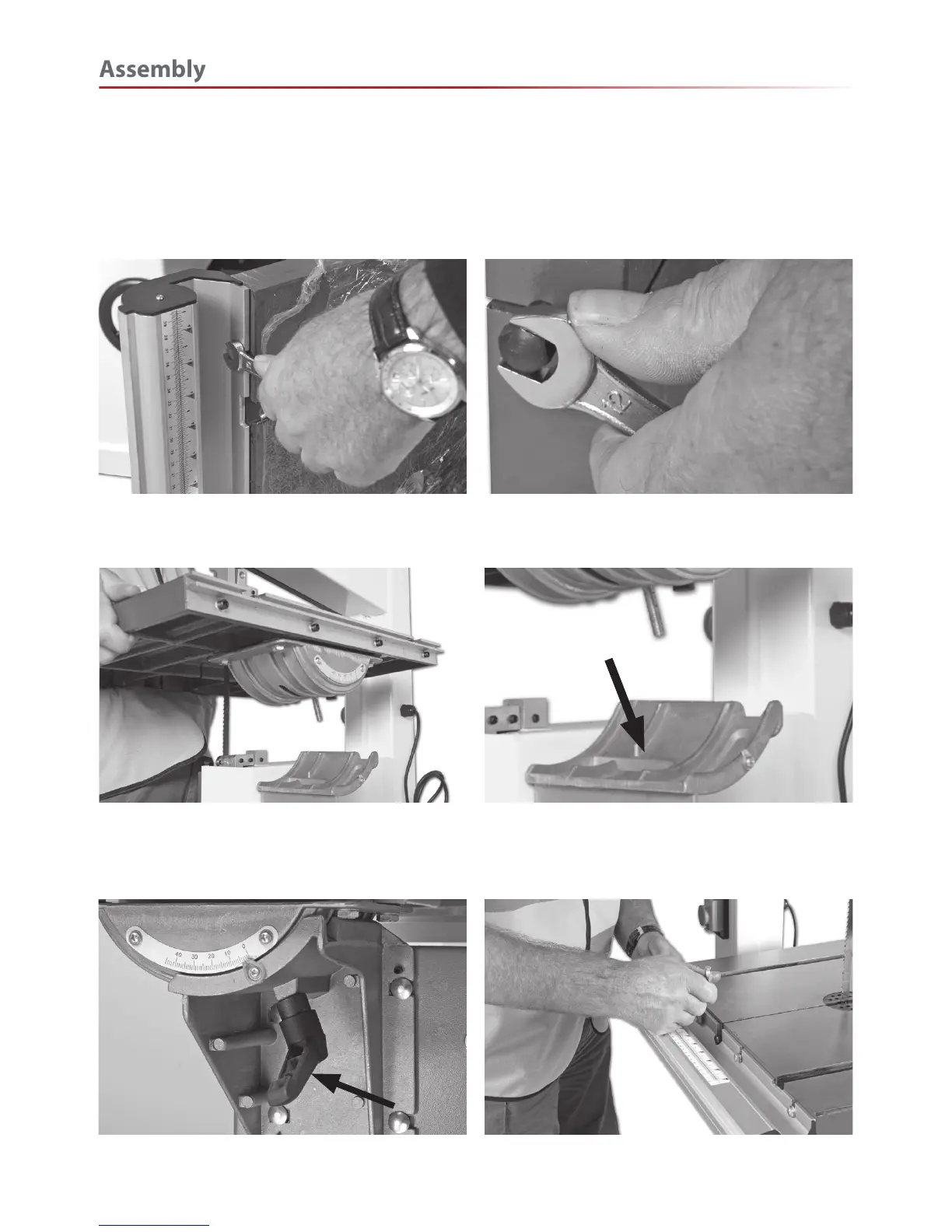

Fig 01
Remove the fence rail and put safely aside.
Fig 02
Remove the table stabilising bolt
and table insert.
Fig 03
Remove the table clamping handle and washer beneath the table,place safely aside. Slide the blade through
the tables slot and lower the table, guiding the threaded bolt through the hole in the tilt quadrant housing.
Fig 03a
Fig 04
Replace the clamping handle and washer you
removed earlier, and tighten.
Fig 05
Replace the table stabilising bolt and
re-attach fence front rail. Replace the table insert.
