4.3 Disassembly and Assembly of Actuator
Normally the actuator requires no adjustment. However, it should be disassembled
and assembled when installing it on a valve body, when modifying its specifications,
or when replacing damaged parts. The disassembly and assembly procedure of the
actuator for such purposes are covered in Sections 4-4 and 4-5.
To disassemble the actuator, refer to fig.4-11 and Fig.4-19.

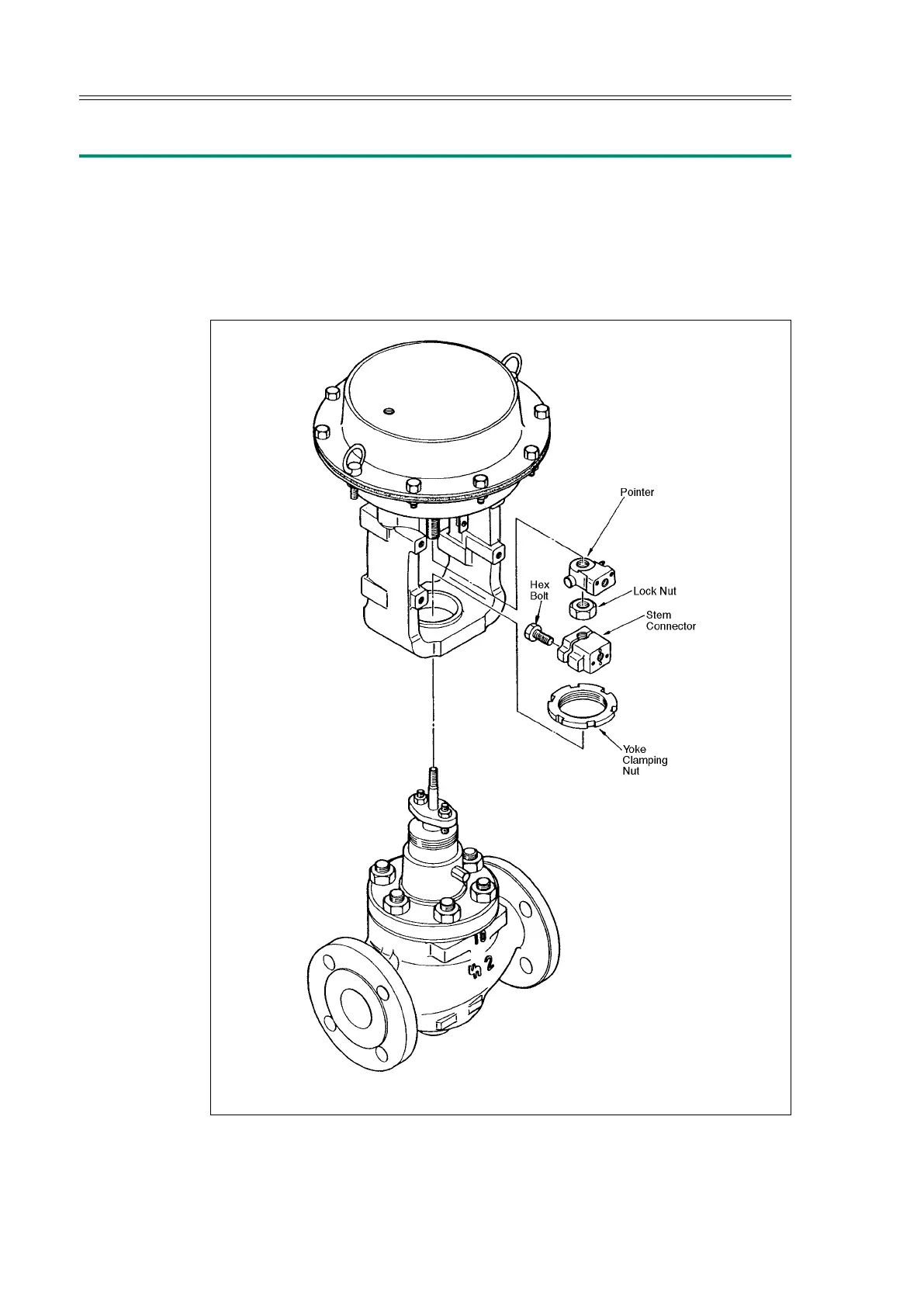

Fig. 4-5
When disassembling or assembling the actuator, keep it in the vertical attitude. For
the tightening torques of bolts and nuts, see Tables 4-5.
For the names of the parts, see Figs.4-11 and 4-19.
