Azbil AMT User Manual

Azbil Corporation
Model: AMT, HDT - CV3000 Series Control Valves
50

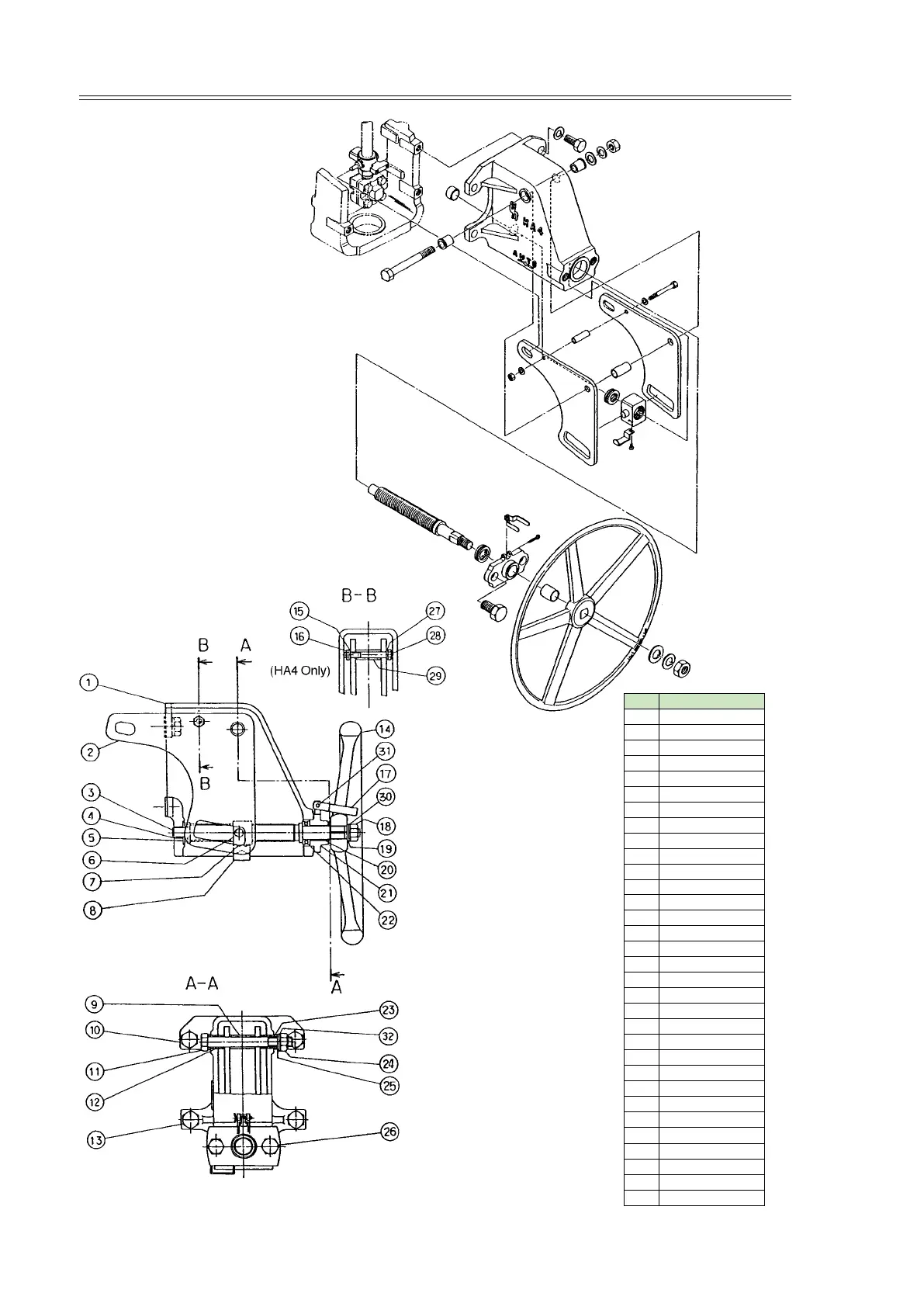

Fig. 8-1 View of Side-Handwheel
No. Parts name
1 Housing
2 Lever
3 Shaft
4 Bushing
5 Bearing
6 Nut
7 Screw
8 Pointer
9 Color
10 Hex Bolt
11 Hex Bolt
12 Bushing
13 Spring Washer
14 Handwheel
15 Washer
16 Hex Nut
17 Handle Lock
18 Nut
19 Washer
20 Bushing
21 Bearing Holder
22 Bearing
23 Bush
24 Nut
25 Washer
26 Hex Bolt
27 Washer
28 Hex Bolt
29 Color
30 Spring Washer
31 Pin
32 Spring Washer
