AB-6256
3

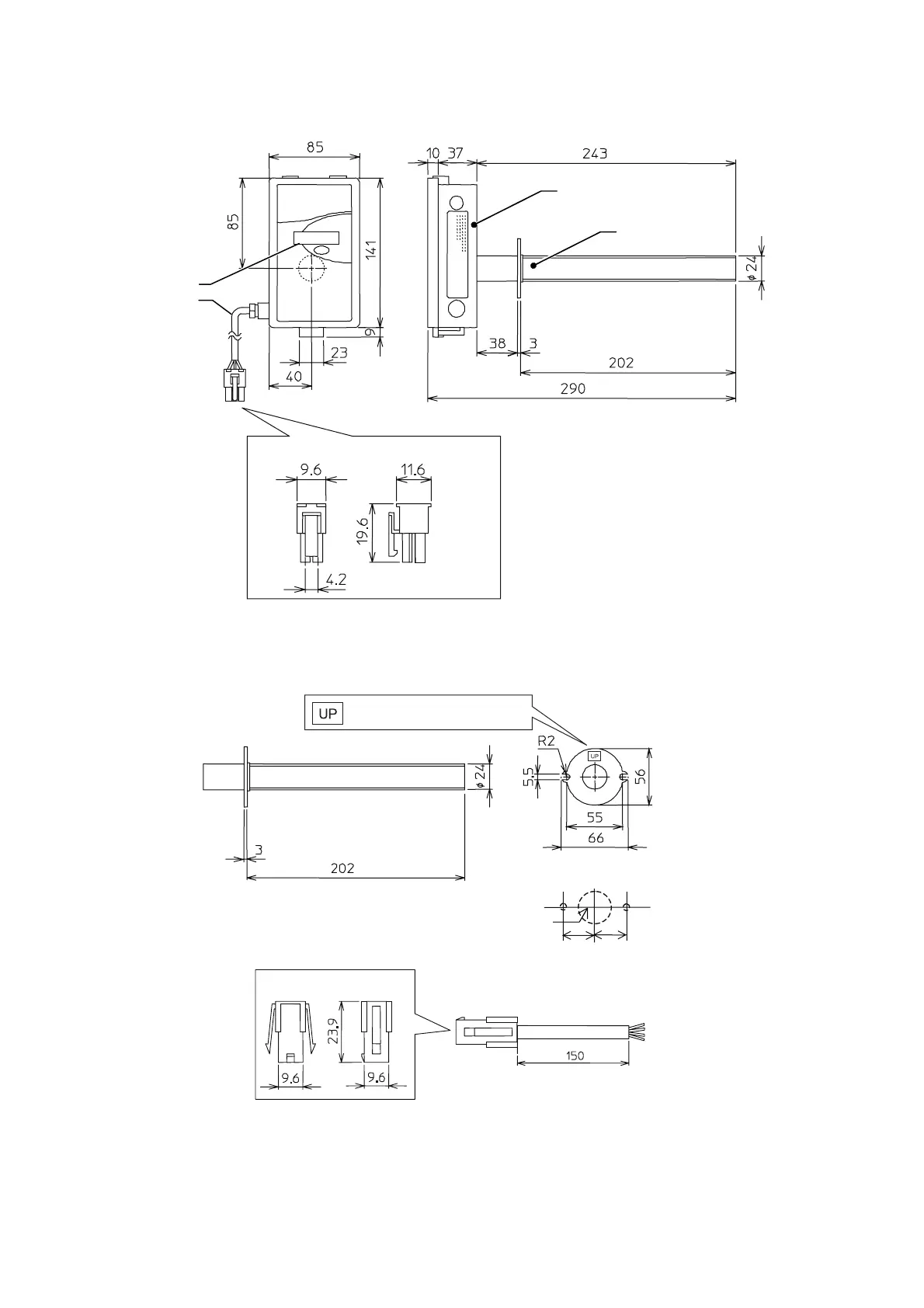

Dimensions
Main unit (with sampling probe assembled to)
Figure 1. Dimensions of the main unit with sampling probe (mm)
Assembly kit
• Sampling probe
• Cable assembly
Figure 2. Dimensions of the assembly kit (mm)
4P connector
shows the mounting orientation.
φ
4
φ
4
φ
25
28 28
Mounting hole
(on the duct)
4P connector
Cable (1 m long)
Main unit
Sampling probe
LCD
