I/O module
Item Wiring Wiring length
Temperature input JIS IV, JIS CVV, KPEV

1.25 mm
2
100 m
Voltage/Current input JIS IV, JIS CVV, KPEV

1.25 mm
2
100 m
Voltage/Current output JIS IV, JIS CVV, KPEV

0.9 mm
2
, 1.25mm
2
100 m
Modutrol Motor output JIS IV, JIS CVV, KPEV

1.25 mm
2
100 m
Digital input JIS IV, JIS CVV, KPEV

0.5 mm
2
, 0.75 mm
2
, 0.9 mm
2
, 1.25 mm
2
100 m
Relay output JIS IV, JIS CVV, KPEV

1.25 mm
2
100 m
Remote control relay
output
JIS IV, JIS CVV, KPEV

1.25 mm
2
100 m
Notes:
 Since a quick-fit screwless terminal block is provided on I/O modules, the wires can be connected only by stripping the sheath.
Sheath stripped length: 8 mm (Pin terminal cannot be used.)
 KPEV is a wiring standard provided by Furukawa Electric Co., Ltd.
Specifications of I/O modules, integral type Operator Panel, UT module, and SAnet I/F module
For the specifications of I/O modules, UT module, and SAnet interface module, refer to Specifications/Instructions of Model
RY50XX (AB-6527). For the specifications of integral type of Operator Panel, refer to Specifications/Instructions of Model
RY5001Q/QY5100W (AB-6546).
CE Marking Conformity
This product must be installed in a panel cabinet. Besides, the product in the panel cabinet must be out of reach of unauthorized
people who are not well-trained for electric facilities.
This product complies with the following Electromagnetic Compatibility (EMC) and the Low Voltage Directive (LVD).
EMC: EN61326-1 Class A, Table 2 (For use in an industrial electromagnetic environment)
LVD: EN61010-1 Overvoltage category II
Pollution degree 2
Input/Output and Terminal Arrangement

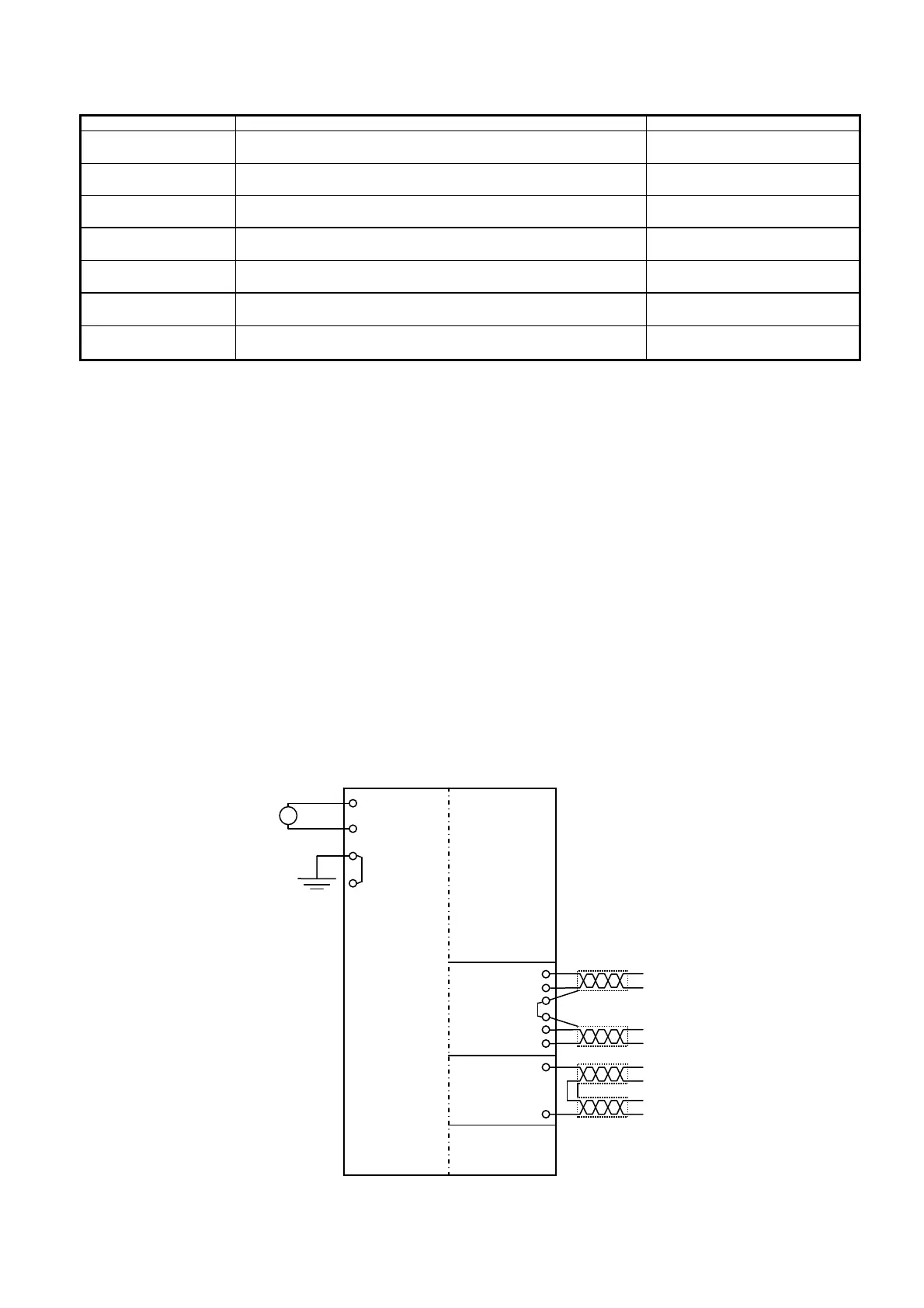

Figure 2. Input/output and terminal arrangement
100 V AC to 240 V AC
NC-bus Line A
1
2
3
4
TX IN
TX OUT
TX IN
TX Out
(+)
(-)
Shield
Shield
(+)
(-)
(+)
(-)
5
6
7
8
9
10
11
12

NC-bus Line B
