14 AB-6650
3 2 1
Motorized valve
Model VY6300
1
2 3
blow down
NC COM NO
4 5 6 7
BR WH RD
Motorized valve
Model VY6100
1
2 3
blow down
NC COM NO
4 5 6 7
S COM O
Motorized valve
Model VY6020
1
2 3
blow down
NC COM NO
4 5 6 7

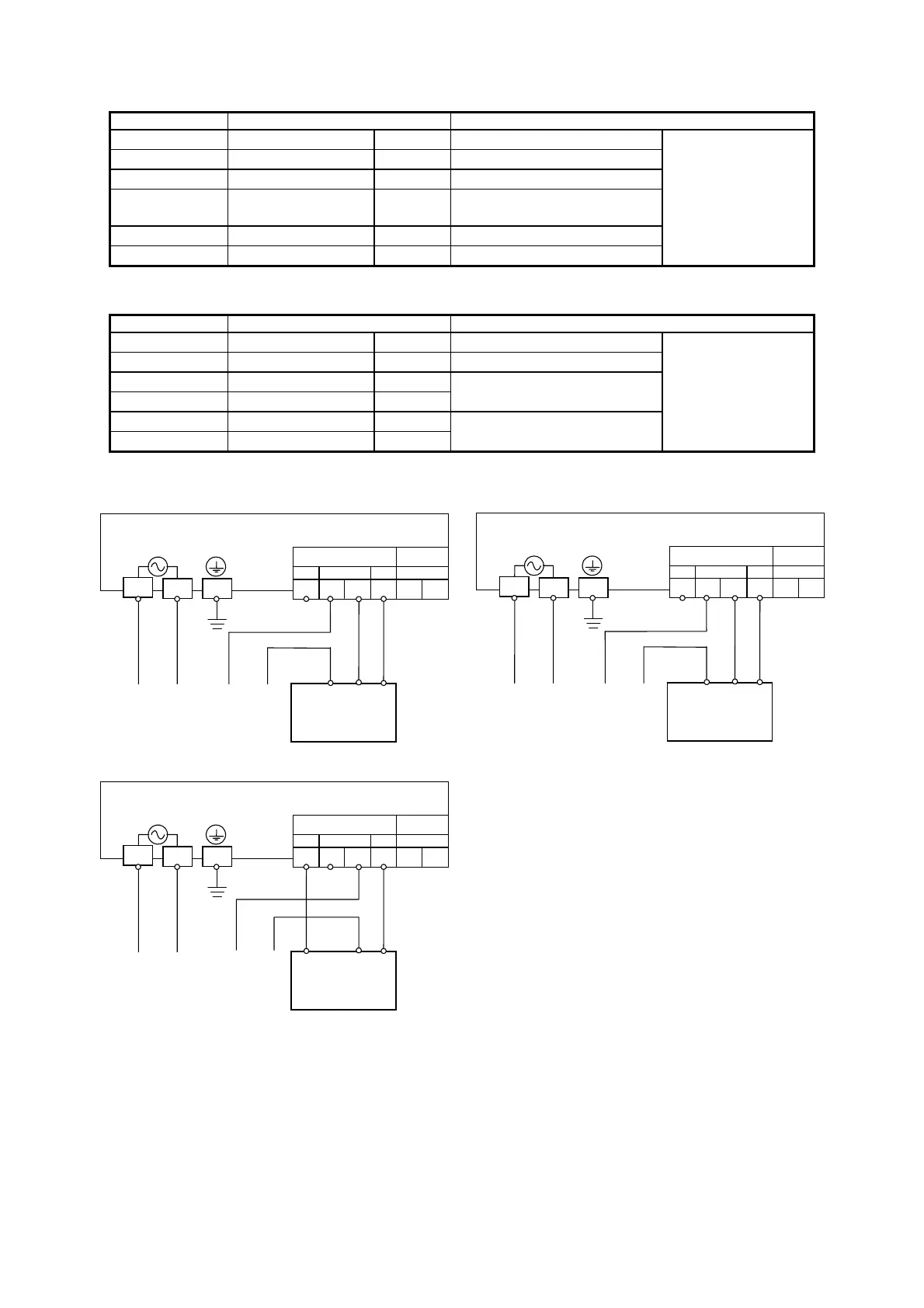

3) 4-electrode sensor (6 terminals)
Terminal number Terminal indication Description
14 electrode BR (brown) Current electrode (+)
15 electrode RD (red) Voltage electrode (+)
16 electrode BK (black) Voltage electrode (-)
17 electrode YL (yellow) Current electrode (-) /
Temperature (B2)
18 electrode GN (green) Temperature (B1)
19 electrode WH (white) Temperature (A)
Quick-fit screwless
(clamp) terminals
4) Signals 2 (6 terminals)
Terminal number Terminal indication Description
20 t.out + Temperature 4-20 mA output (+)
21 t.out - Temperature 4-20 mA output (-)
22 do(temp) DO1
23 do(temp) DO1
Temperature contact output 1
24 do(temp) DO2
25 do(temp) DO2
Temperature contact output 2
Quick-fit screwless
(clamp) terminals
Wiring to motorized ball valve
MIZCON Plus controller MIZCON Plus controller
100-240 V AC 100-240 V AC
100-240 V AC 100-240 V AC 100-240 V AC 100-240 V AC
power power power power
Figure 16. Wiring to Model VY6300 Figure 17. Wiring to Model VY6100
MIZCON Plus controller
100-240 V AC
100-240 V AC 100-240 V AC
power power
Figure 18. Wiring to Model VY6020
