Fitting Of Pump And Piping
To prevent transport damage the recirculation pump and lower piping
is removed from the unit at the factory prior to shipping and shipped
loose. Once the basin has been bolted down, the pump can then be
reinstalled as per the following steps:
1. Place the pump on the supporting structure and shim the pump
support base if required to align the pump suction with the unit
outlet connection.
2. Using the hardware and gasket provided fasten the pump to the
connection.
3. Fasten the pump base to the supporting structure using M16
hardware (supplied by others).
4. Once the pump is in place and secured, t the riser pipe to the
pump discharge ange using PVC pipe cement solvent.
5. Once the casing has been installed, the ends of the upper and
lower riser pipe sections should now be close together. Use the
rubber sleeve and hose clamps provided to join the two riser
sections (see Fig. 5b).

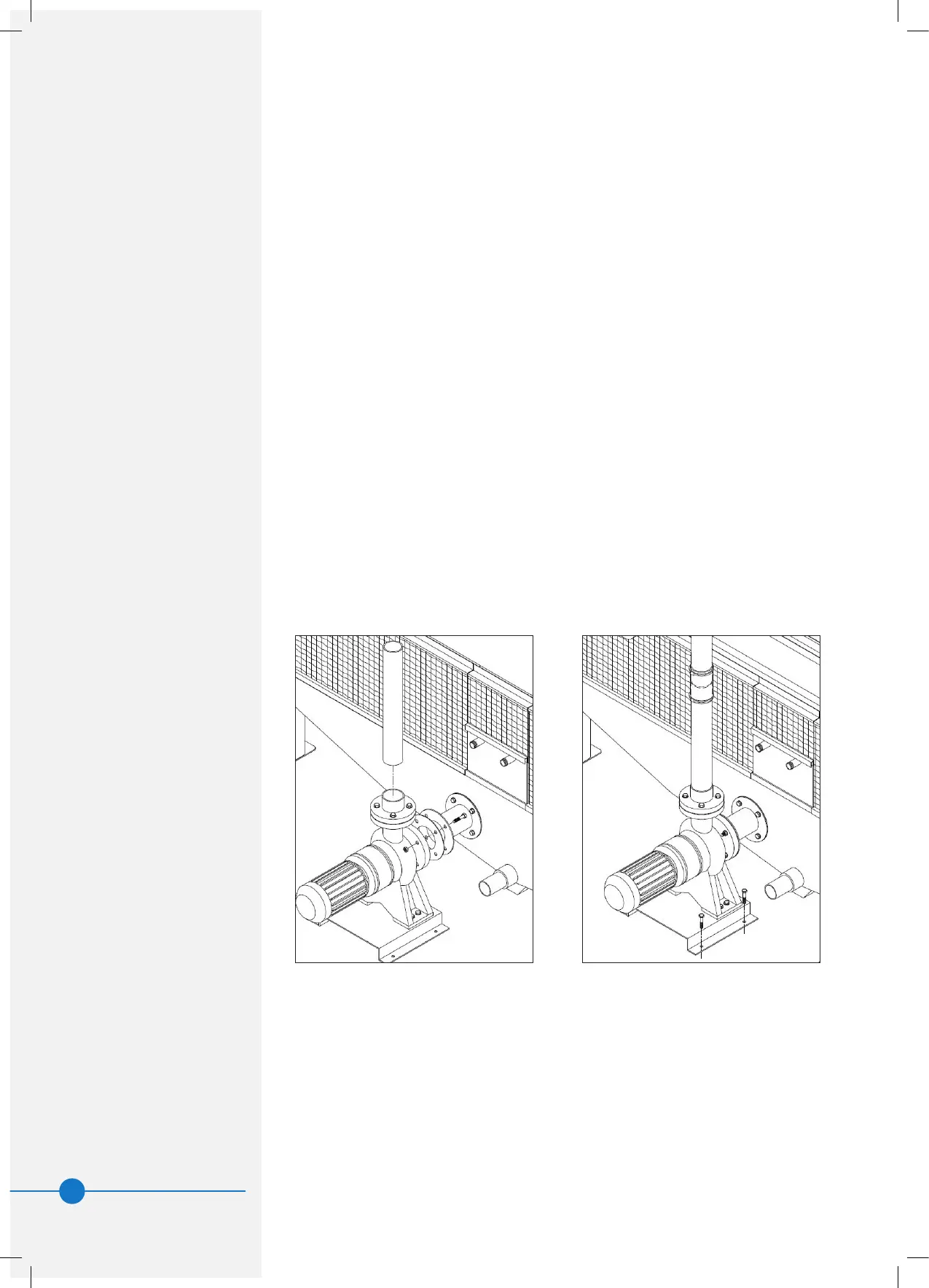

Figure 5a. Fitting Pump to Basin Figure 5b. Joining the Riser Pipe
