Section Assembly
1. Remove any motors or accessories shipped in the cold water basin.
2. Figures 1 and 2 show the proper rigging of the sections for units
that ship in two sections. Position the lower section on the steel
support and bolt in place.
3. Using basin to casing joining brackets, guide the upper section
onto the lower section. Match marks must line up.
4. Fasten the hardware between the upper casing and lower section
per Figure 3a, Page 6 (for HDG & SST coils) and 3b, Page 6 (for
copper coils).
WARNING: Unless units ship
fully assembled, basin &
casing/roof deck sections
must be rigged separately.
Never assemble the unit
before lifting as the lifting
devices provided on the
unit are not designed to
support the weight of the
entire assembled unit.
THE USE OF SAFETY
SLINGS IS RECOMMENDED
FOR EXTENDED LIFTS OR
WHENEVER HAZARDS EXIST.

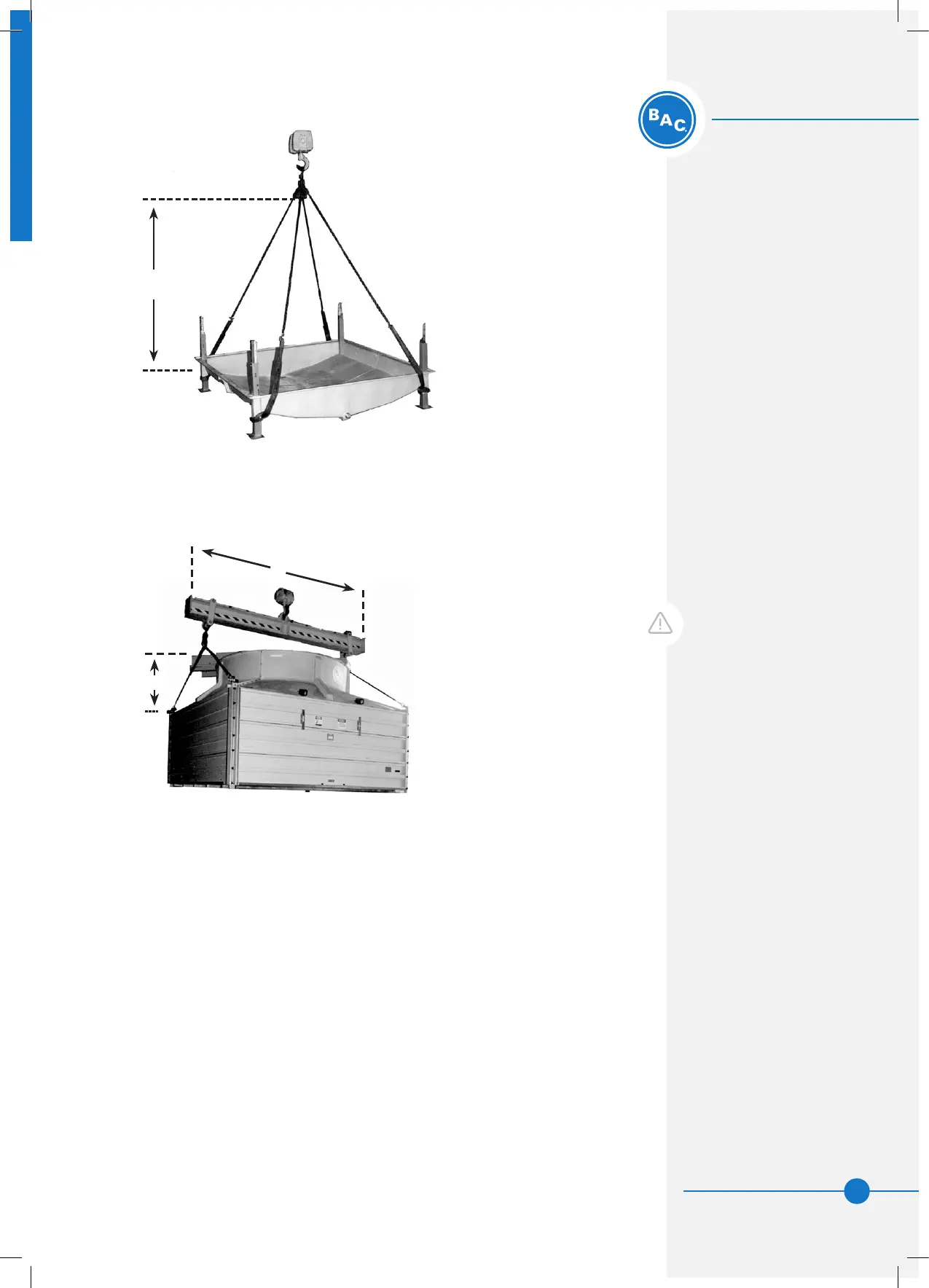

Figure 1. Lifting basin section
H1
Figure 2. Lifting casing/roofdeck section
H2
L
Unit Rigging & Assembly
Rigging
Section Assembly
