MGS Series Controller Manual
16 6709-9000 Rev 1
Section 3. Wiring
3.1. 1- and 2-Channel Units (Single- and Dual-Alarm)
Wiring to Sensors/Transmitters
Controller
Terminal Block
Controller
Pin Number
Signal
Sensor/
Transmitter
CN1
1 +Ve supply +V in
2 4-20 mA signal 4-20 mA out
4 -Ve input GND in
CN2
1 +Ve supply +V in
2 4-20 mA signal 4-20 mA out
4 -Ve input GND in

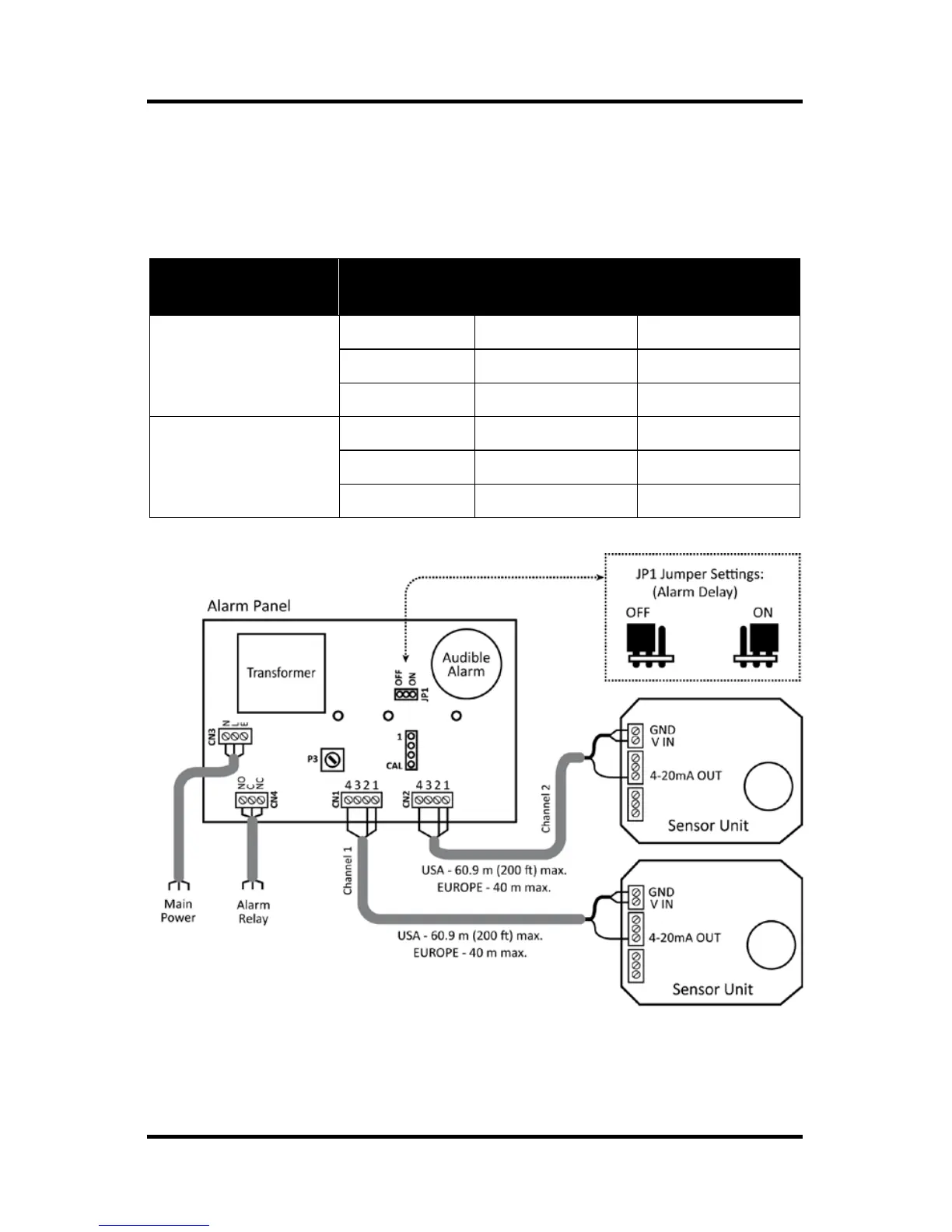

Figure 8. Wiring (2-Channel, Single-Alarm Unit Shown)

Bacharach MGS SERIES Specifications

General

Power Supply	24 VDC
Operating Temperature	-20°C to 50°C
Communication	Modbus RTU
Output	4-20 mA
Enclosure Rating	NEMA 4X
