4.7. Output Delays
Controllers with only single-level alarm capabilities use jumper JP1 to
enable/disable a 3-minute output delay for the input level alarm. This
delay provides a hysteresis preventing nuisance toggling of the alarm.
The delay is enabled when the jumper is in the ON position, and disabled
when in the OFF position. The delay for single-level systems is
approximately 3 minutes. Refer to Figure 12 for locations of the JP1
jumper and Figure 16 for a graphic representation of the alarm
responses when the delay is enabled and disable (via JP1).
Output Delay Jumper
JP1 Position
Description
Output delays are off.
Wait after input exceeds alarm level before
triggering alarm relay.

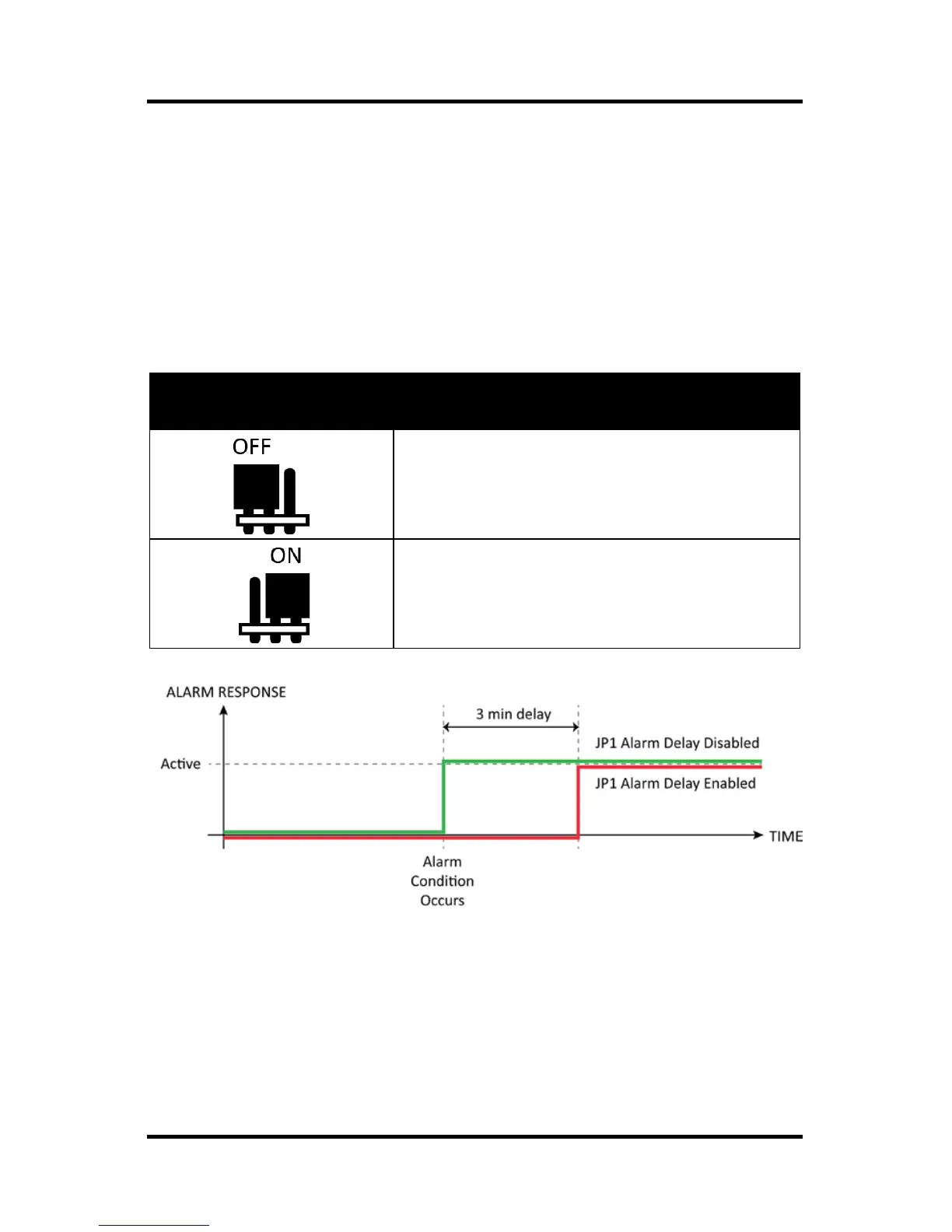

Figure 16. Alarm Response (Single-Level Alarms)
The delays for dual-level systems are about 25 seconds for the low level
and then another 25 seconds for the high level. Refer to Figure 17 for a
graphic representation of the alarm response showing the 25-second
delays that are imposed.

Bacharach MGS SERIES Specifications

General

Power Supply	24 VDC
Operating Temperature	-20°C to 50°C
Communication	Modbus RTU
Output	4-20 mA
Enclosure Rating	NEMA 4X
