Backyard Discovery BEACH FRONT - Page 10

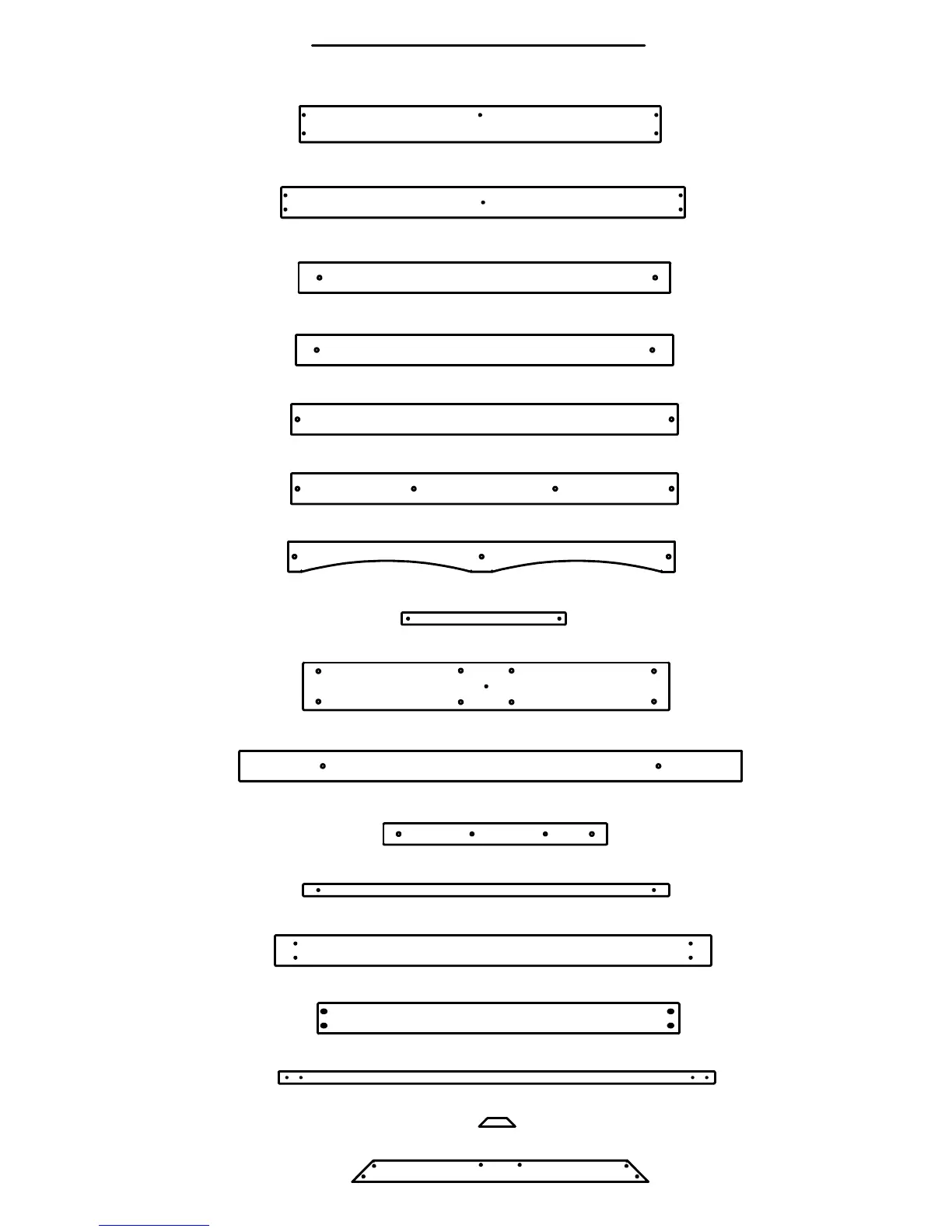

Parts Identification
Wood Components
(NOT TO SCALE)
Y2 - FLOOR BOARD - W4L06917
5/8"x4"x40 3/8" (16x102x1024)
(1)
M6 - FLOOR BOARD - W4L06918
5/8"x3 3/8"x45 1/8" (16x86x1145)
(10)
M7 - WALL RAIL - W4L06919
5
/8"x3 3/8"x41 1/2" (16x86x1054)
(2)
M8 - WALL RAIL - W4L06920
5/8"x3 3/8"x42 1/8" (16x86x1070)
(2)
M9 - WALL RAIL - W4L06941
5/8"x3 3/8"x43 1/4" (16x86x1097)
(1)
M10 - WALL RAIL - W4L06942
5/8"x3 3/8"x43 1/4" (16x86x1097)
(1)
M11 - ARCHED WALL RAIL - W4L06943
5/8"x3 3/8"x43 1/4" (16x86x1097)
(1)
O2 - PICKET - W4L06944
5/8"x1 3/8"x18 1/4" (16x34x465)
(23)
G1 - SWING BEAM MOUNT - W4L06945
1
"x5 1/4"x40 7/8" (24x134x1038)
(1)
H4 - HORIZONTAL TARP SUPPORT - W4L06946
1"x3 3/8"x56 1/8" (24x86x1425)
(2)
J8 - WALL BOARD - W4L06947
1"x2 3/8"x25" (24x60x634)
(1)
O3 - SAFETY BOARD - W4L06948
5/8"x1 3/8"x40 7/8" (16x34x1038)
(2)
H5 - HORIZONTAL TARP SUPPORT - W4L06949
1"x3 3/8"x48 3/4" (24x86x1237)
(2)
H6 - ROOF BOARD - W4L06950
1
"x3 3/8"x40 3/8" (24x86x1025)
(4)
T1 - ROOF BOARD - W4L06951
1"x1 3/8"x48 3/4" (24x34x1237)
(1)
J10 - ROOF BOARD - W4L06952
1"x2 3/8"x4" (24x60x102)
(2)
N2 - ROOF BOARD - W4L06953
5/8"x2 3/8"x33 1/8" (16x60x840)
(2)
