Additional programming: Industrial analog and industrial pulse (ILR750, ILR750T, ILR701, ILR701T)
October 2019 AC_ILR_BA_02_1632 Page 9
4.1 Pulse rate out
(for model ILR750 and ILR750T)
Indicated by an “o” on the left hand side of the display, this screen allows selection of the pulses output per liter or per gallon
depending on unit of measure (0.01 PPL/PPG to 999 PPL/PPG).
The meter pulse rate is entered in pulses per liter if the selected unit of measure is liters. The meter pulse rate is entered in
pulses per gallon if the selected unit of measure is gallons, quarts or pints.
To advance to the next programming screen, hold the TOTAL button.
NOTE: Error checking will not allow the user to advance to the next screen.

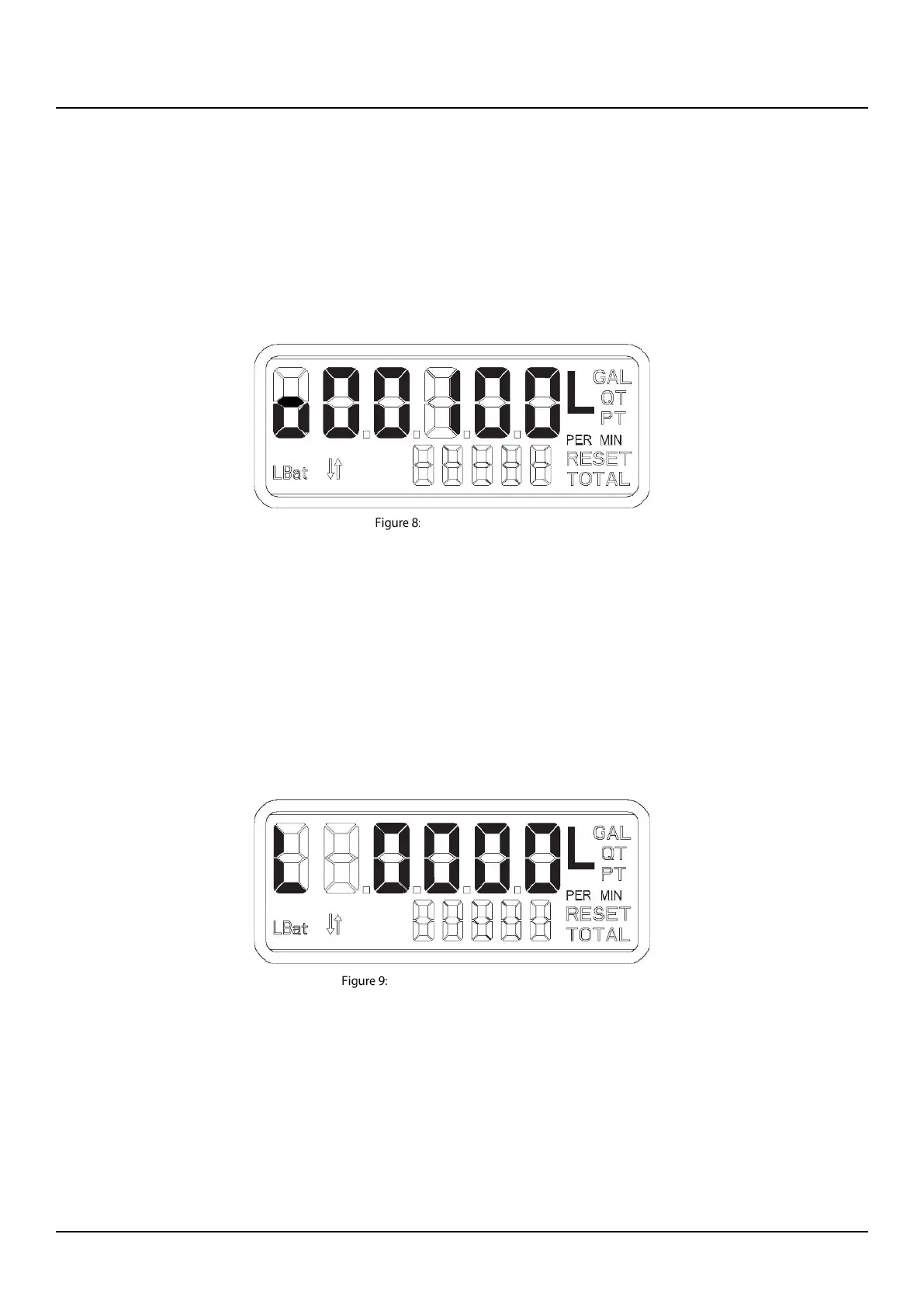

Pulse rate out screen
4.2 Analog minimum flow rate
(for models ILR750 and ILR750T)
Indicated by a “L” on the left hand side of the display, this screen allows the setting of the flow rate that corresponds to the
4mA output:
NOTE:
The minimum flow rate value must be less that the maximum flow rate value.
• Default 0.0 LPM/GPM
NOTE: Error checking will not allow the user to advance to the next screen.
To advance to the next programming screen, hold the TOTAL button for one second.
Analog minimum flow rate screen
