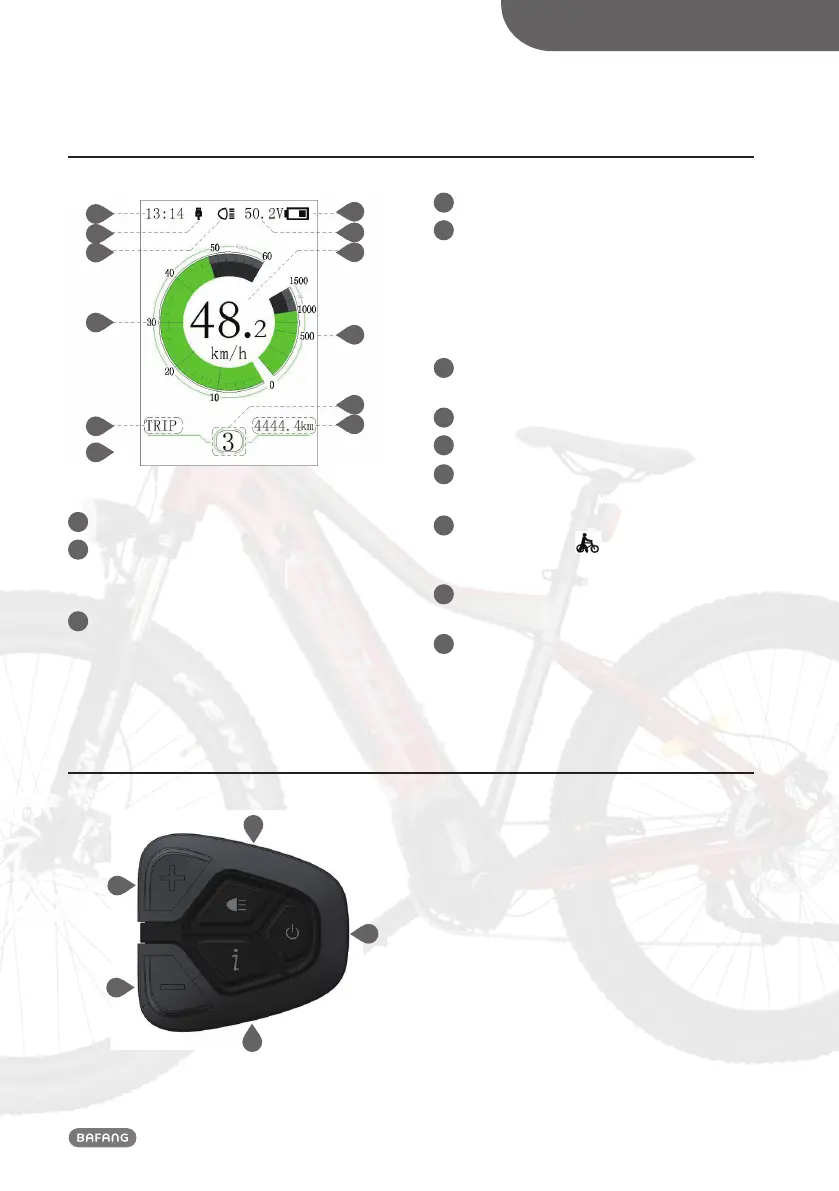

INDICATION AREA
CONSUMER MANUAL – DP C18.CAN
4 INDICATION AREA
1
2
3
4
5
12






SERVICE
1
Time indication
2
USB charge indication: When external device
connect into the display, it display the
symbol
3
Headlight indication
4
Speed scale display
5
Mode selection: single-trip distance (TRIP)
→ total distance ODO → maximum speed
(MAX) → average speed (AVG) → remaining
distance (RANGE) → energy consumption
(CALORIES) → time (TIME). (Note: same
function needs the Controller supports)
6
Indication for the current remaining capacity
of battery.
7
Voltage indication/percentage indication.
8
Speed digital indication.
9
Power indication/current indication (with
scale).
10
Power assistance level indication/Walk
assistance, Note: symbol means Walk
assistance model.
11
Data indication: displays current data corres-
ponding to the mode.
12
“Service”indication.
5 BUTTON DEFINITION
ON/OFF
Up
Down
Mode
Headlight
