144

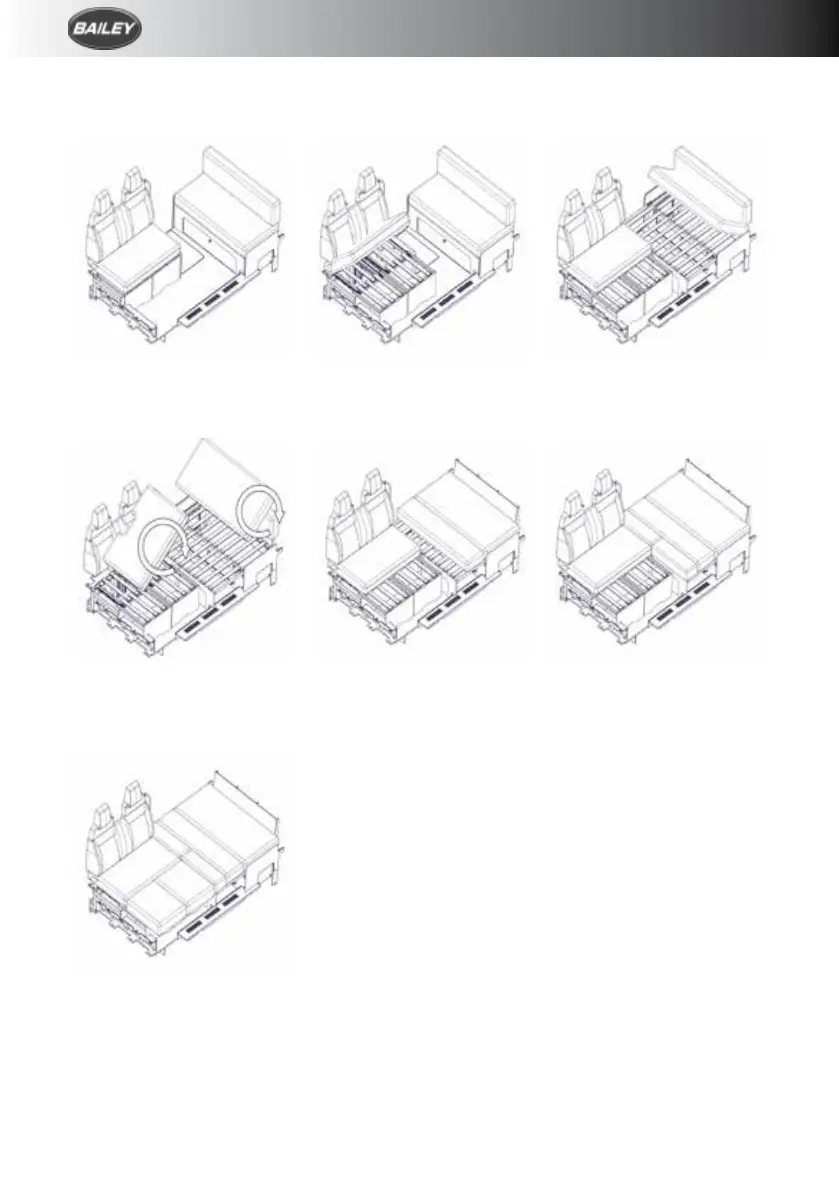

FITTED FURNITURE CONFIGURATIONS
1. Lounge in travel
configuration.
2. Slide out both travel seat
bases.
3. Slide out side seat base.
4. Lift, rotate and replace the
two seat bases.
5. Place side seat back rest
into position.
6. Locate the two narrow
infill cushions and put in
position.
7. Locate the two larger
infill cushions and put in
position.
75-4 Front Bed Configuration
