NIAI04 TERMINATION MODULE CONFIGURATION
CONFIGURING INPUTS
B - 2 WBPEEUI240756A0
®

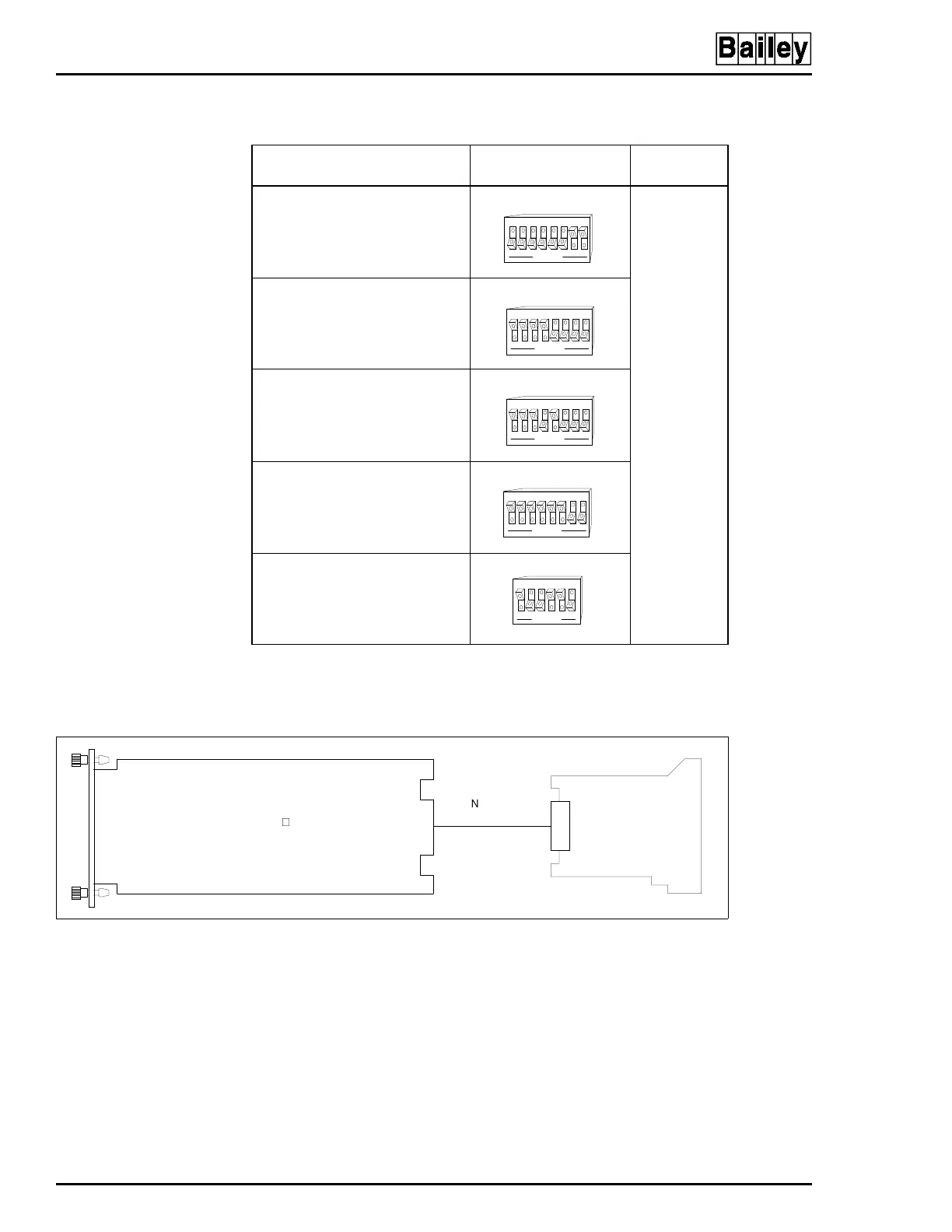

Table B-1. NIAI04 Dipswitch Settings
Application/Signal Type
Dipswitch
Configuration
1, 2
Connecting
Cable
System powered 4 to 20 mA NKTM01 or
NKTU02
Externally powered 4 to 20 mA
Single ended voltage
3
Differential voltage
3
All applications
NOTES:
1. Pole 5 on S1 through S15 should be closed for point-to-point communications.
2. Closed = 1 = ON.
3. FSK not supported at this time.
1 2 3 4 5 86 7
OPEN
S1-S15
OPEN
1 2 3 4 5 86 7
S1-S15
1 2 3 4 5 86 7
S1-S15
OPEN
1 2 3 4 5 86 7
S1-S15
OPEN
TP25177B
1 2 3 4 5 6
S16 ONLY
OPEN
Figure B-3. NIAI04 Cable Connections
IMFEC1
NKTM01
NKTU02
NIAI04
P1
P1
P3
P2
T00924A
