Bailey Pegasus GT65 - Standby Screen; Main Menu

71
HEATINGSYSTEMS
1. Boththecontrolpanelandboilerareoff.
2.Tostartthesystem,pressthePowerbutton
on the control panel. The Splash Screen is
displayedandgreenLEDislit.Theboilerwill
nowstart with the previously savedsettings
(factorysettingsbydefault).
Thesystemwillnowbedrawingvariable0.2–
1Aofcurrentfromthe12vsupply.

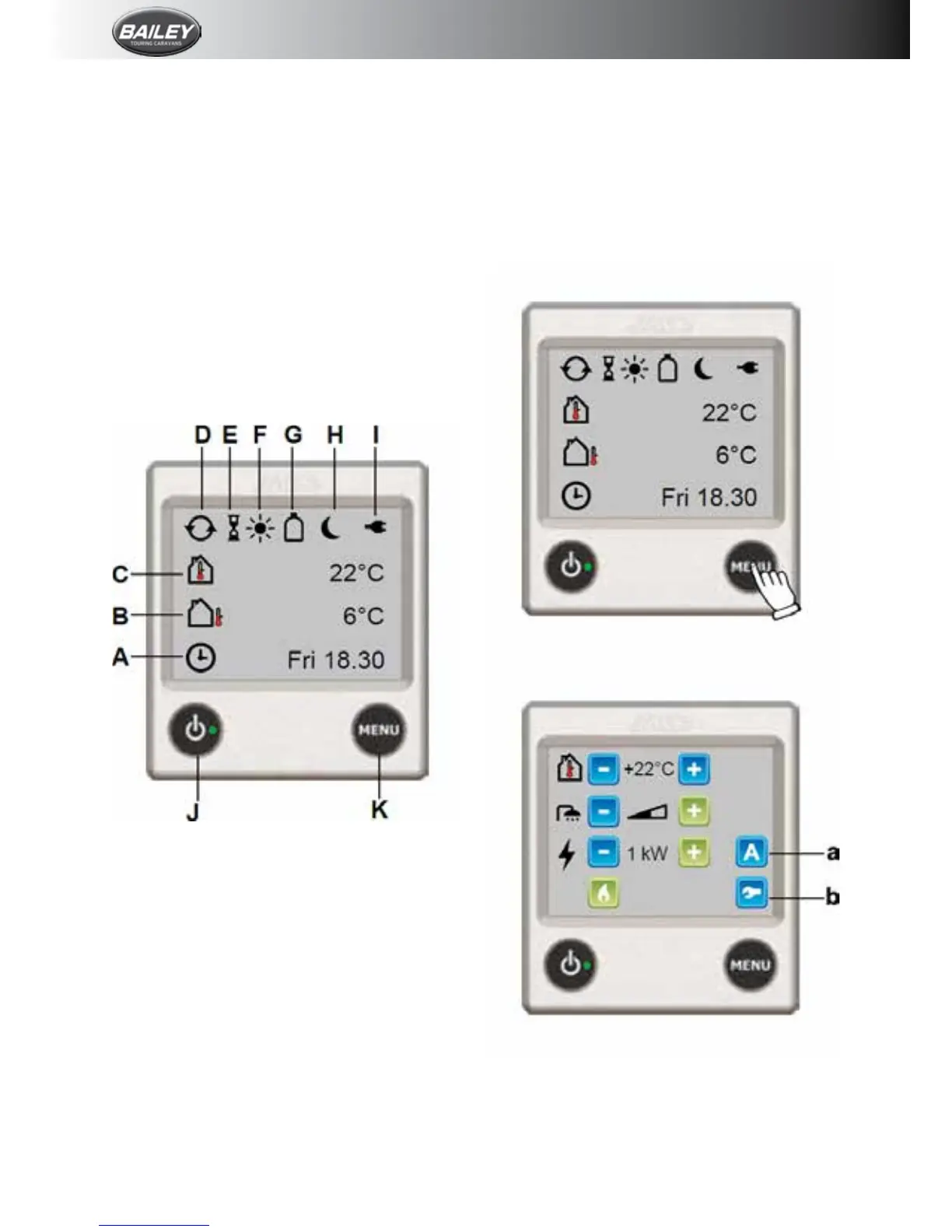

Standby Screen
The Standby Screen is displayed after the
Splash Screen. This screen contains useful
informationaboutthe statusofyourheating
system.
NB: If Standby Screen is set to “Dark” in
Backlightsettings,theStandbyScreenwillnot
be displayed; the screen will be dark unless
touched.
A.Clockisenabled.Dayoftheweekandtime
shown.
B.Outdoor temperature. [Optional outdoor
temperaturesensorrequired.]
C.Roomtemperature.Measuredatthecontrol
panel. [Optional discrete room temperature
sensorsavailable.]
D.Centralheatingcirculationpumpisactive.
E.DelayedStart/Cycleisenabled.
F.  DayModeactive.
G.Gas Cylinder Status. Full/empty and
active EisEx shown. [Additional accessories
required.]
H.NightModeactive.
I. 230Vsupply.Ifnotdisplayed,theboileris
notreceiving230Vsupply.
J.Power button. Press to switch system on
andoff.LitgreenLEDindicatessystemison.
K.MENUbutton.
L.Press to access Main Menu from Standby
ScreenorSettingsMenu.
Main Menu
PressMENUbuttontoaccesstheMainMenu
from the Standby Screen or Settings Menu.
ThescreenwillreverttotheStandbyScreen
after30secsifuntouched.
1. StandbyScreen.PressMENUbutton.
2.MainMenu.
a.What’sActivatedMenu.[Notdisplayedifno
activatedfunctionsaredetected.]
b.SettingsMenu.
