Solar Requirements via RED Anderson Connector
 12V Solar panel (36 Cell)
 Maximum charge current 20A
 Panels require external blocking diodes if not pre-fitted. Blocking diode voltage rating must be twice the Voc
(open circuit voltage) of the array and current rating must be at least 1.4 x Isc (short circuit current) of the
circuit being protected.
 12V Solar panel (36 Cell) can be connected in parallel only. When connected in parallel add the current of
each panel and check that the total is below 20A

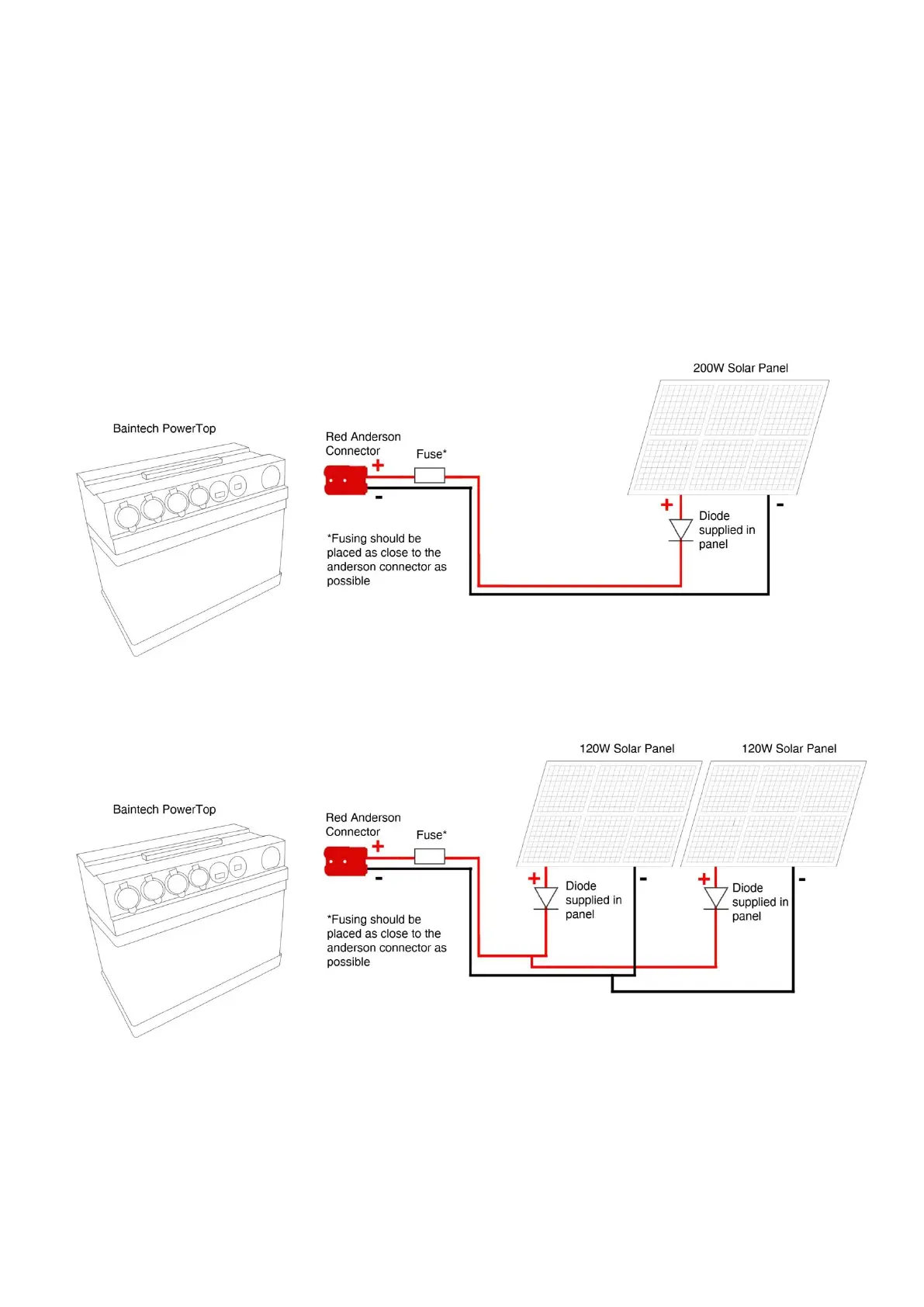

Single Solar Panel
Parallel Solar Panels
