LIBRA - installation
LIBRA FREESTANDING
INSTALLATION INSTRUCTIONS
1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST)
.
Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © August 2021 Bains Ultra Inc. All rights reserved. 45200682

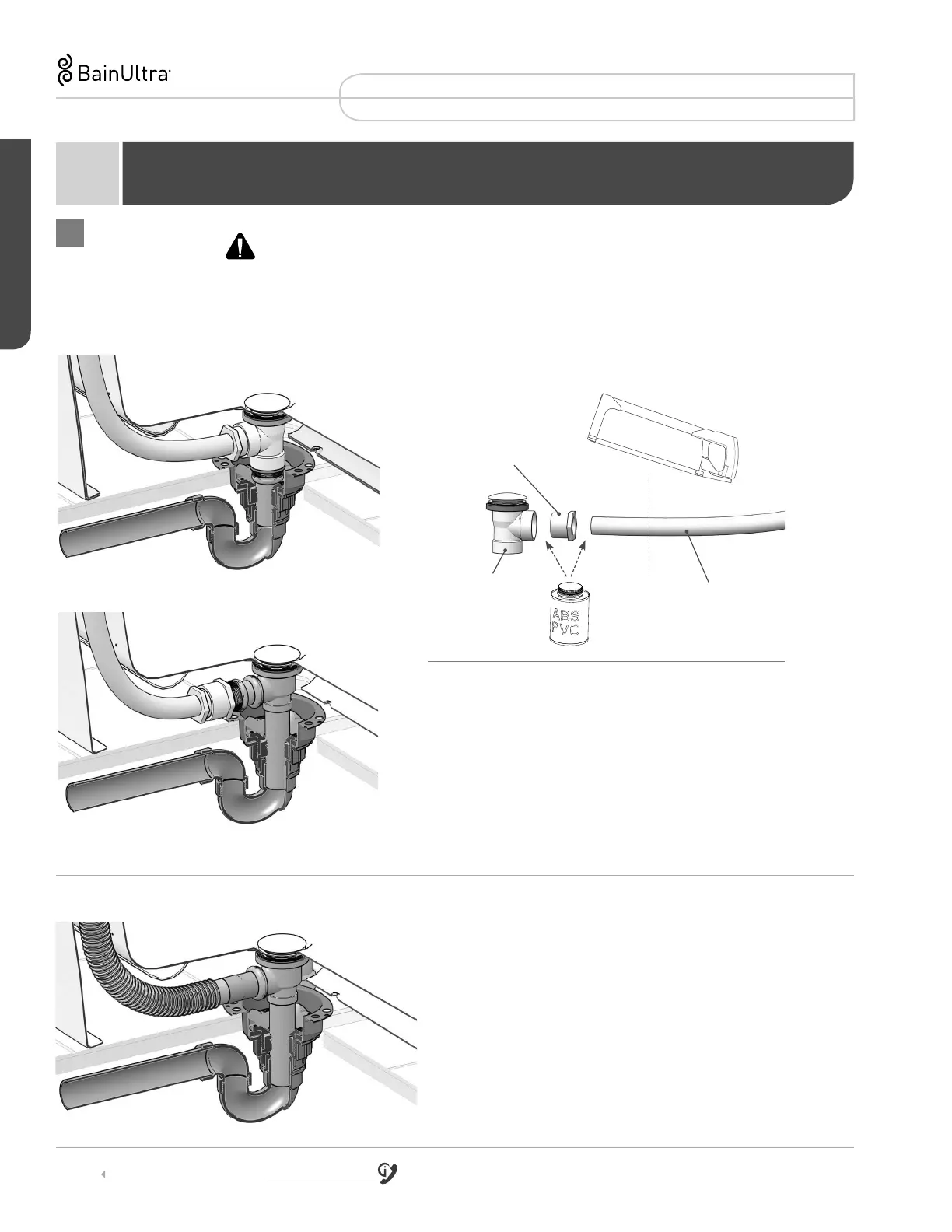

INSTALLATION WITHOUT ACCESS UNDER THE FLOOR
2
PLUMBING
NOTE
• Refer to supplied instructions for Island Tub Drain (ITD) installation.
• The floor finishing material can go over the red center piece of the ITD. The red center piece
connects to the brass tailpiece.
PVC DRAIN
PVC & BRASS DRAIN
BRASS DRAIN
B-2B-2
B-1B-1
B-3B-3
B-4B-4
B-5B-5
Overflow pipe
PVC Connector
PVC Drain
NOTE: If necessary, cut the overflow pipe to
the desired length, and glue it to the
PVC connector and to the drain.
