ELECTRICAL SECTION
1
ELECTRICAL CONNECTIONS FOR REMOTE MOUNTING OF TURBINE AND THERAPIES
• See page 23 for electrical diagram
WARNING
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state,
and local building codes and regulations.
• Electrical power should be turned on only after all the low voltage wires are connected to turbine.
• If this step has not been done, simply disconnect main breaker that is linked to turbine.
• Turbine must be located in a clean and dry space.
• Geysair component cannot be remote mounted. Must never be unplugged.

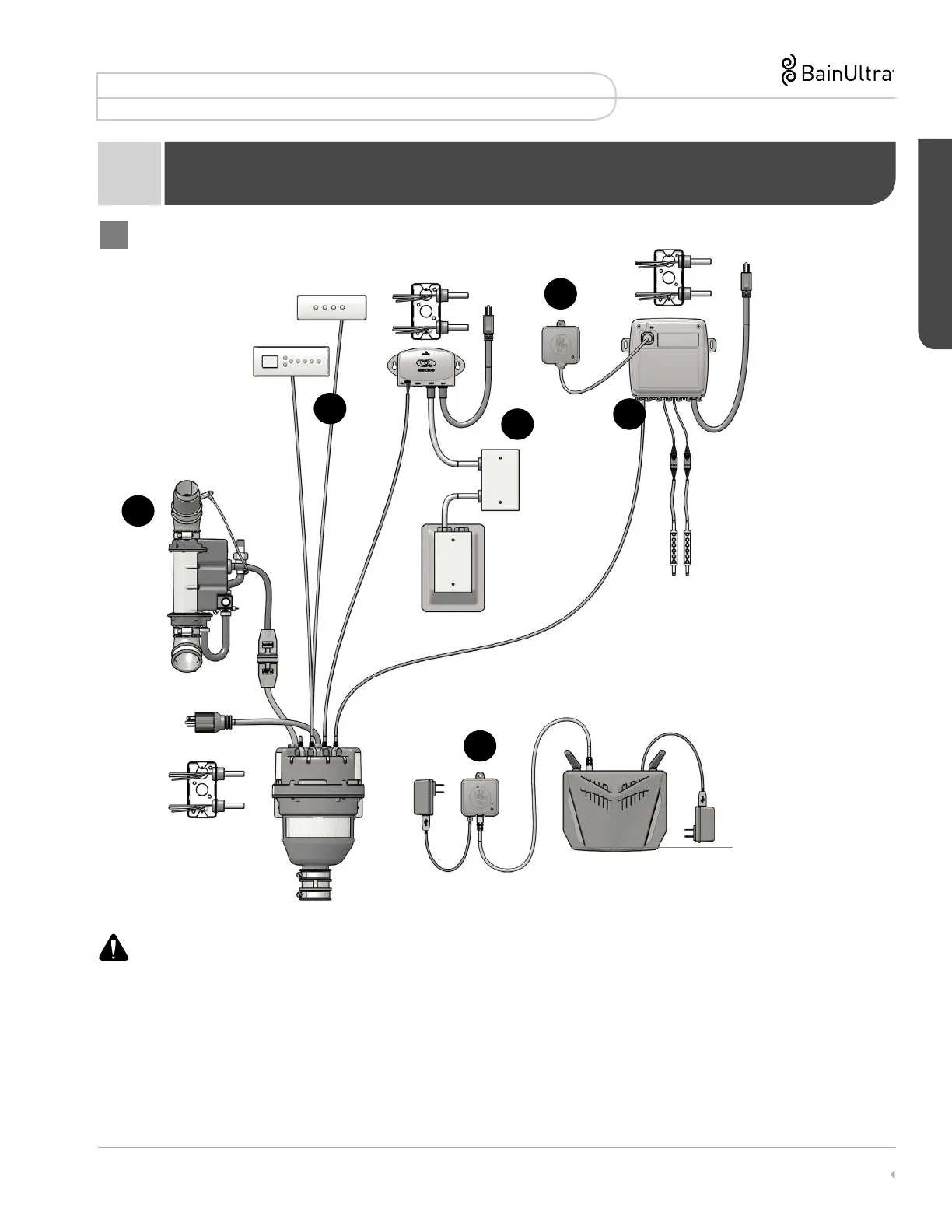

A: Geysair
B: Mia / MiaPlus
C: WarmTouchShell (WTS)
D: Chromatherapy
E: BU-Touch*
A
B
C
E
E
D
Router (not provided)
NOTE: Connections may differ depending on the bath model and options.
* BU-Touch is a virtual control application that activates all the options of the ThermoMasseur Air jets bath from your mobile device.
Please refer to BU-TOUCH Quick Start Guide: www.bainultra.com/butouch-guide
To Next Page
