LIBRA - installation
LIBRA FREESTANDING
INSTALLATION INSTRUCTIONS
1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST)
.
Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © August 2021 Bains Ultra Inc. All rights reserved. 45200682

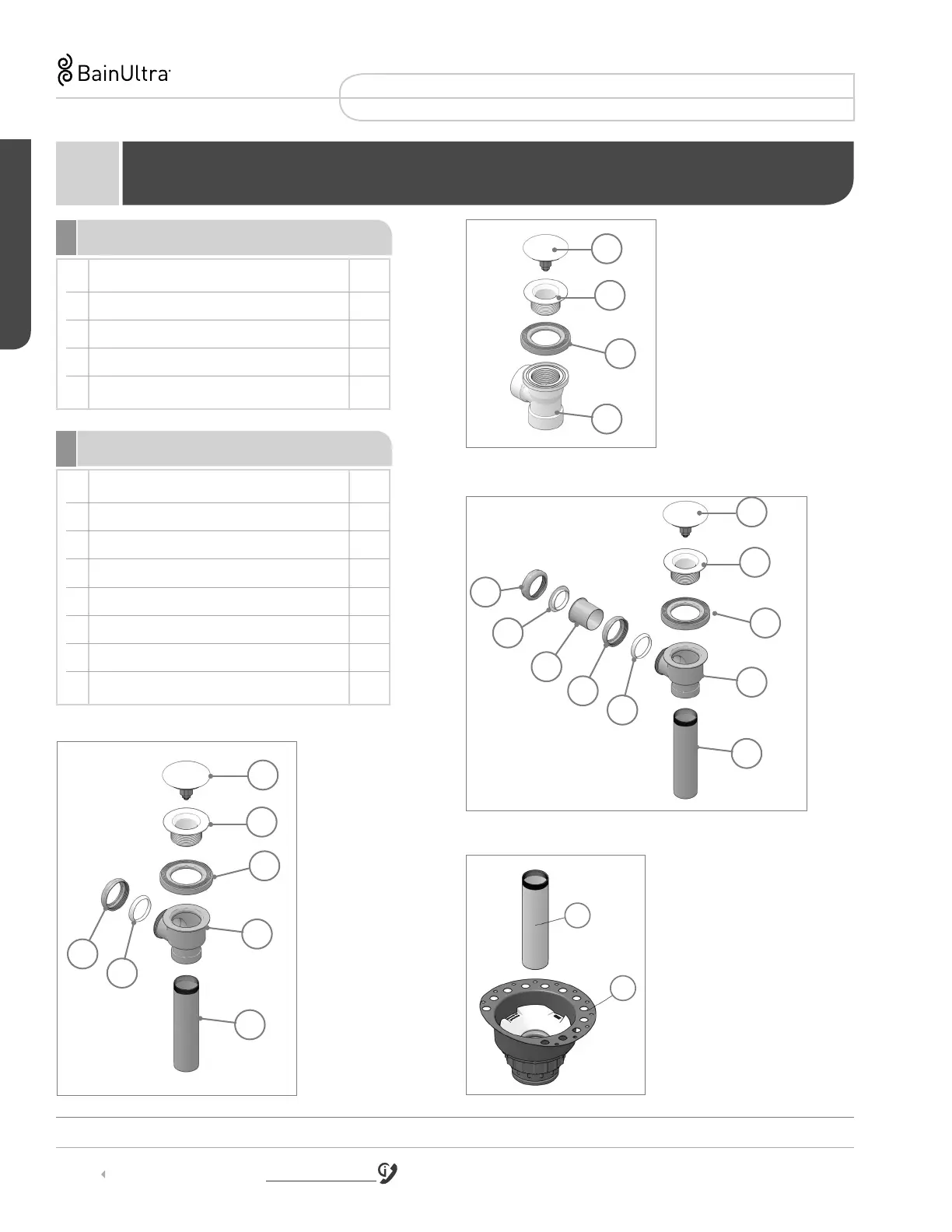

STANDARD PARTS - PLUMBING
DESCRIPTION QTY
A Plated drain clicker 1
B Strainer 1
C Rubber seal 1
D Tee PVC Drain shoe 1
OPTIONAL PARTS - PLUMBING
DESCRIPTION QTY
E Tee brass drain shoe 1
F 8 in. brass tailpiece 1
G Nylon conic shaped seal for drain 1
H Brass nut 2
I Brass pipe with flange 1
J Island Tub Drain (ITD) Floor set 1
K Nylon flat seal with flange 1
PARTS & TOOLS REQUIRED
* : REQUIRED WHEN NO ACCESS IS POSSIBLE UNDER THE FLOOR.
A
B
C
D
PVC DRAIN
PVC & BRASS DRAIN
F
J
ISLAND TUB DRAIN*
BRASS DRAIN
A
B
C
D
H
H
K
I
G
A
B
C
F
E
H
G
A
B
C
F
E
