LIBRA FREESTANDING
INSTALLATION INSTRUCTIONS
LIBRA - installation
www.bainultra.com
Some products, specifications, and services mentioned in this manual are described in pending patent applications or are protected by patents.
REMOTE MOUNTING OF TURBINE
WARNING
• For Geysair
®
equipped baths using remote turbine installation (not mounted on the bath), grounding continuity
must be tested between the bath grounding terminal
and the bath power supply.
Failure to perform the grounding continuity test could result in serious personal injury.
3

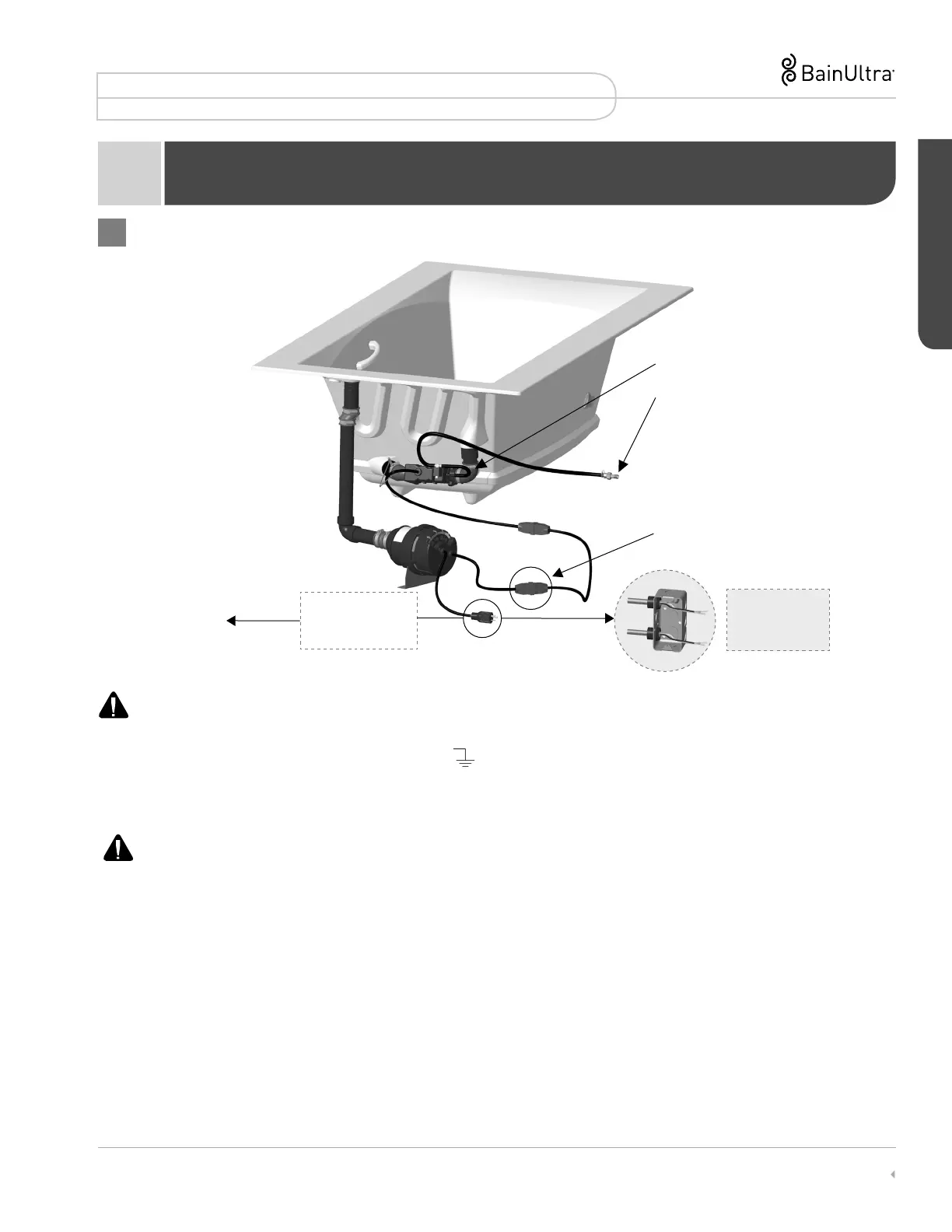

REMOTE MOUNTING OF TURBINE - ELECTRICAL CONNECTIONS (THERMOMASSEUR
®
)
• See page 23 for electrical diagram
NOTE
• ELECTRICAL CONNECTIONS FOR REMOTE MOUNTING OF TURBINE AND THERAPIES - SEE PAGES 21-22
GEYSAIR
BACK FLOW
PREVENTER
TO GFCI Outlet
United States
EXTENSION CORD
(For extra extension cord length,
contact BainUltra to order)
GEYSAIR CONNECTION
Junction box
Canada
To Next Page
