BainUltra LIBRA FREESTANDING - Electrical Connections for Remote Mounting of Therapies (Baths Without Air Jets)

22
LIBRA - installation
LIBRA FREESTANDING
INSTALLATION INSTRUCTIONS
1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST)
.
Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © August 2021 Bains Ultra Inc. All rights reserved. 45200682
ELECTRICAL SECTION
A: WarmTouchShell
®
B: Chromatherapy (LED)
C: DOT WarmTouchShell
®
D: DOT Chromatherapy (LED)
2

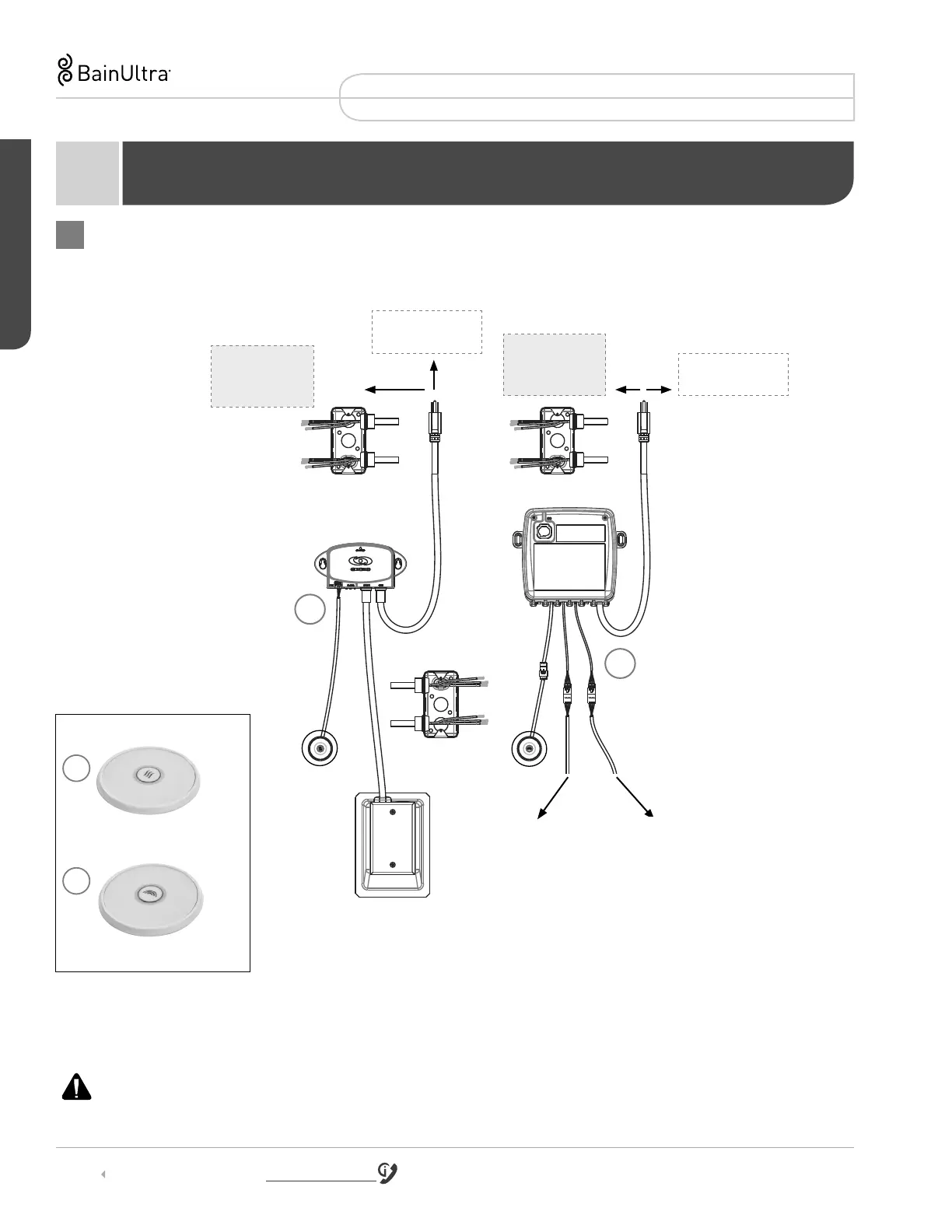

ELECTRICAL CONNECTIONS FOR REMOTE MOUNTING OF THERAPIES ( WITHOUT AIR JETS)
• See page 23 for electrical diagram
Litestreme
Inmix module
C
A
B
C
D
DOT WarmTouchShell
®
(WTS)
DOT Chromatherapy (LED)
To GFCI OUTLET
(United States)
To GFCI OUTLET
(United States)
Jonction Box
(Canada)
Jonction Box
(Canada)
To left LED
WARNING
• Libra freestanding bath cannot be drilled for faucet installation. Faucets must be freestanding or wall-mounted models.
To right LED
