LIBRA - installation
LIBRA FREESTANDING
INSTALLATION INSTRUCTIONS
1 800 463.2187 Monday to Thursday from 8 a.m. to 6 p.m. (EST)
.
Friday from 8 a.m. to 5 p.m. (EST)
Printed in Canada. Copyright © August 2021 Bains Ultra Inc. All rights reserved. 45200682

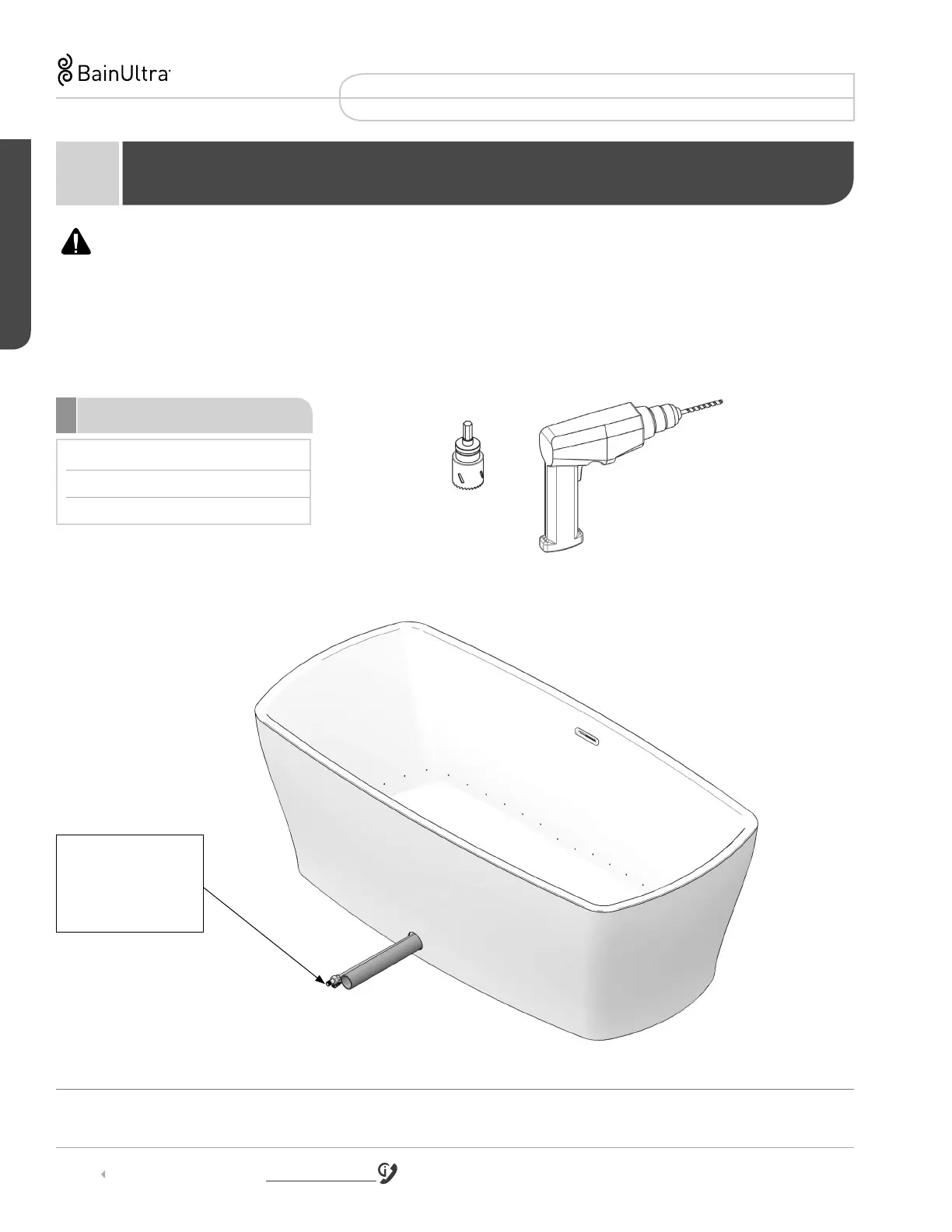

INSTALLATION WITHOUT ACCESS UNDER THE FLOOR
REMOTE ACCESS OF COMPONENTS
WARNING
IF THE CONNECTIONS OF THE AIR CONDUIT AND THE ELECTRICAL SUPPLY OF THE THERAPEUTIC OPTIONS MUST BE DONE
AT FLOOR LEVEL, YOU MUST CUT AN OPENING ON ONE OF THE WALLS CLOSEST TO TURBINE AND CONTROLS.
• Be careful not to drill the inside shell of the bath.
• The size of the opening must allow for passage of the conduit and the wires.
(*) : The location of the air conduit is shown as an example. It may differ depending on the positioning of the remote compo-
nents and the orientation of the bath.
TOOLS REQUIRED
Drill
1/4 in. drill bit
Hole saw
• Air conduit*
• Geysair hose
• Electric cables
(optional therapies)
