12
Connections
CONNECTIONS

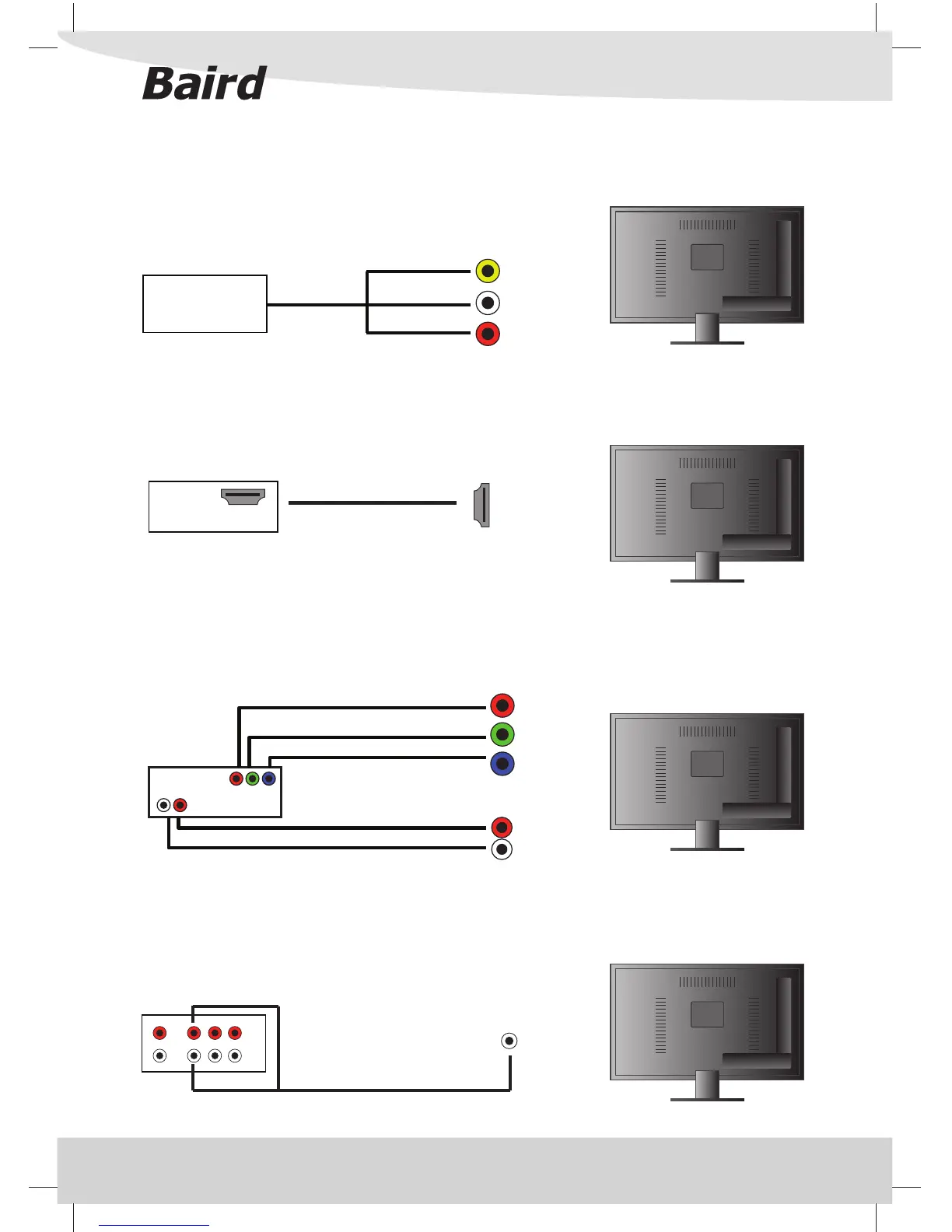

Connecting a Camcorder, Camera or Games Console
Source should be set to Video
Connecting a High De nition (HD) Device
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with
minimal loss of quality.
TVs Input/Source should be set to HDMI.
Option 2 - via Component cable
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you
must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component.
Component (HD)
Component
Green
Blue
Red
A u di o L/ R
White
Red
Audio
In L/R
Ca mera or
Camcorder
Yellow
White
Red
Audio
In L/R
Video
HDMI OUT
HDMI
Connecting a hi- system / sound ampli er
3,5mm jack to 2xRCA reduction which is included in the box enables
you to enjoy better audio with minimal loss of quality.
L
R
3.5mm jack
headphones
output
