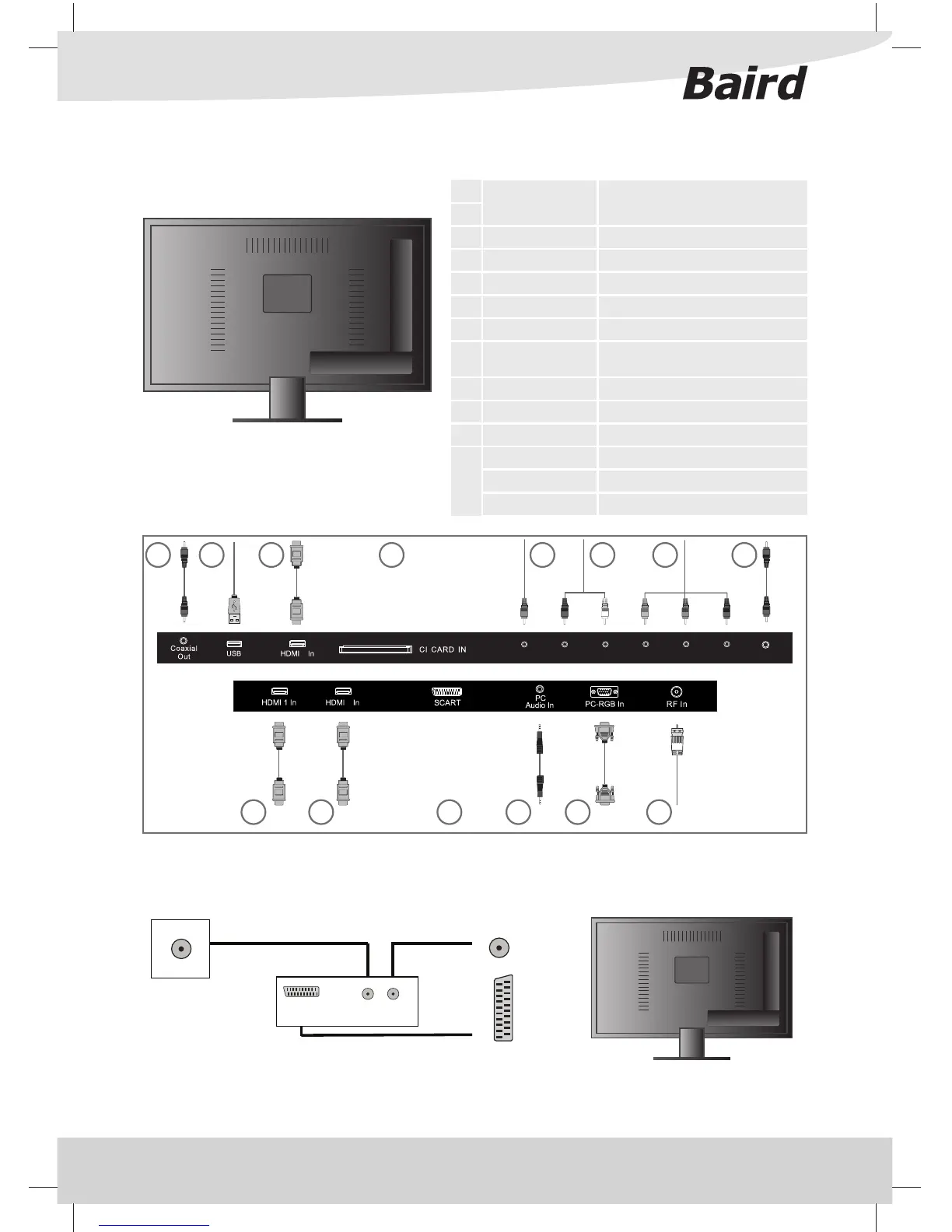

Baird TI4203BC - Connections; Port Identification; Connecting External Devices (SCART)

11
Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box
TVs Input/Source should be set to SCART
CONNECTIONS
RF I N
SCART
TV Aerial
Wall Socket
SCART
OUT
RF
IN
RF
OUT
DVD or VCR
Connections
2
3
Y Pb Pr
CVBS R L
Earphone
Out
W RY
R
G
B
A COAX Audio Out Coax Audio Output
B USB USB-input
C1 HDMI HDMI-input
C2 HDMI HDMI-input
C3 HDMI HDMI-input
D CI CARD IN CI CARD input
E CVBS CVBS Input
F VIDEO Audio In /
YPbPr Audio In
Video Audio input / YPbPr Audio input
G YPbPr Component-input
H SCART SCART-input
I VGA ( PC ) Audio In VGA-PC-Audio-input
J VGA ( PC ) VGA-PC-input
K RF IN RF-input ( tv-antenne )
L Earphone Out Earphone Output
A G L
C2 C3 H I K
D E FC1B
J
