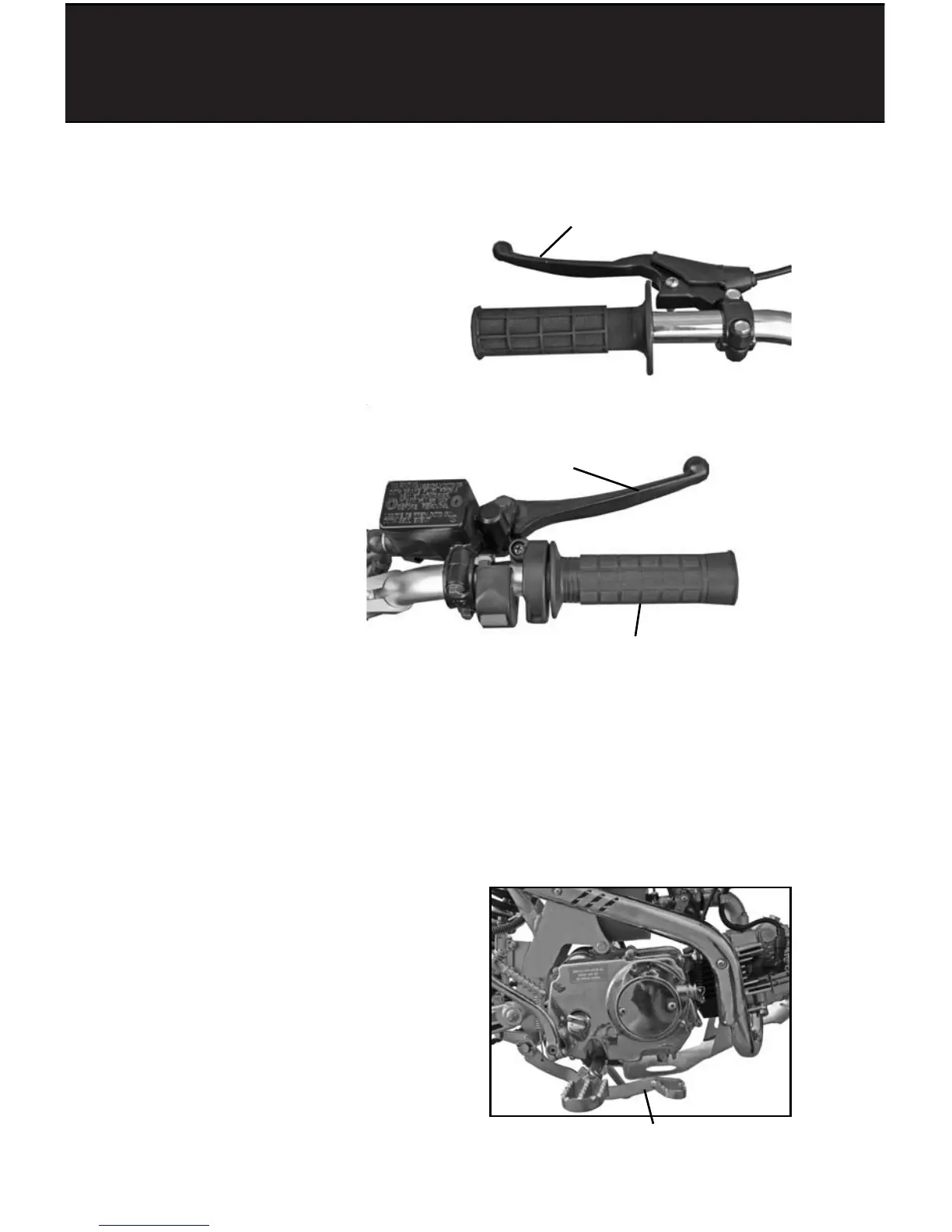

Throttle twist grip
Controls engine and dirt bike speed. When twist grip is turned back CCW
(counter clockwise) engine speed is increased along with speed of dirt bike.
When twist grip is turned forward CW (clockwise) engine speed is decreased
along with speed of dirt bike.
Front brake lever
Squeeze lever toward hand grip to apply front brakes.
REAR FOOT BRAKE
The foot brake is located on right
hand side of dirt bike. Foot brake
applies rear brake.
Front brake
lever
Throttle twist grip
Rear foot brake
Clutch lever
When clutch lever is pulled toward hand grip,
clutch is applied.
Clutch lever
LEFT HANDLEBAR - CLUTCH LEVER
OPERATION
RIGHT HANDLEBAR - FRONT BRAKE LEVER AND THROTTLE
TWIST GRIP
