Baja DX70 - Torque Specifications

25
1 Front wheel axle bolt 12mm 37-44 ft.lb. (50-60 Nm)
2 Rear wheel axle bolt 13mm 37-44 ft.lb. (50-60 Nm)
3 Handle bar clamp bracket 4 ea. 8mm 15-18 ft.lb. (20-25 Nm)
4 Top fork tube bolts 2 ea. 10 mm 24-25 ft.lb. (32-34 Nm)
5 Bottom triple tree shock bracket 2ea. 8mm 15-18 ft.lb. (20-25 Nm)
6 Engine mounting top bolt 8mm 15-18 ft.lb. (20-25 Nm)
7 Engine mounting bottom bolt 8mm 15-18 ft.lb. (20-25 Nm)
8 Rear shock mount bolts 2ea. 10mm 24-25 ft.lb. (32-34 Nm)
9 Seat mount bolts 2ea. 6mm 6-8 ft.lb. (8-11 Nm)
10 Shift lever mount bolt 6mm 6-8 ft.lb. (8-11 Nm)
11 Swing arm Bolt 10mm 24-25 ft.lb. (32-34 Nm)
12 Main triple tree mounting bolt 26-33 ft.lb. (35-45 Nm)

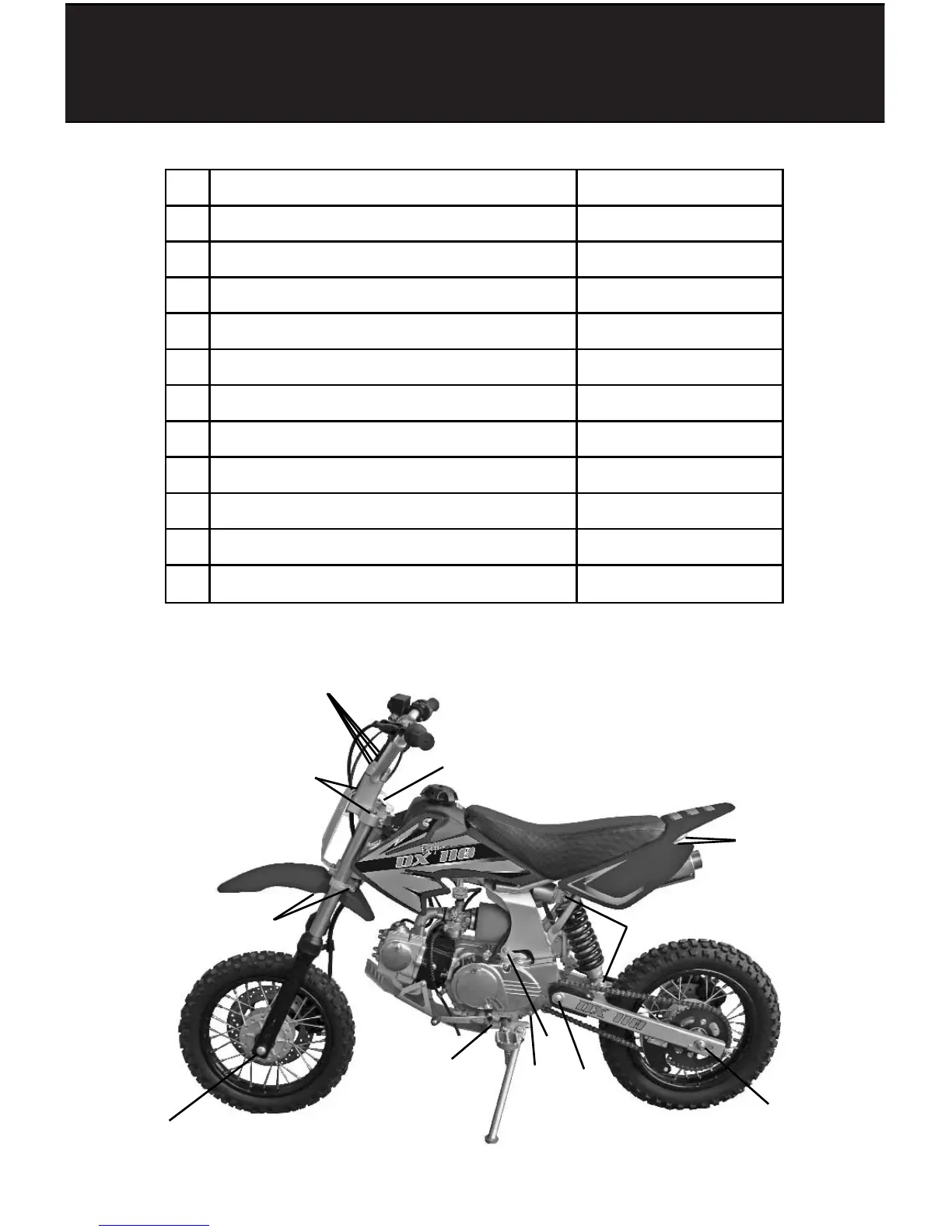

TORQUE SPECIFICATIONS
MAINTENANCE
6
7
5
1
2
3
8
9
12
10
11
4
