Speedometer illumination
will get ‘ON’
In addition to above
Hi-beam will get ‘ON’ &
high beam indicator will
get ON
E
F
17
E. Starter Button:
Starter button operates the electric starter. It is recommended
to start the engine with the transmission in neutral.
Vehicle in Gear - Press clutch lever & operate starter button to
start the engine.
F. Engine Kill Switch:
The engine kill switch is used for switching ON & OFF the engine. :
: Engine OFF
: Engine ON
Effect to
Pass Switch
Hi Beam
‘ON’
No change
Head Lamp
Beam Status
Low Beam
‘ON’
Hi beam
‘ON’
Hi/Low
Beam
switch
Low Beam
Hi beam
Ignition switch ‘ON’ & Engine Running
Speedometer illumination, tail lamp, number plate lamp, pilot
lamp will get ‘ON’ in addition to above, head lamp will get
ON as given below
AHO (Automatic Headlight ‘ON’)
There is no ‘Light Switch’ on RH control switch.
Ignition switch ‘ON’
Engine ‘OFF’
Effect of pressing
‘Pass switch’

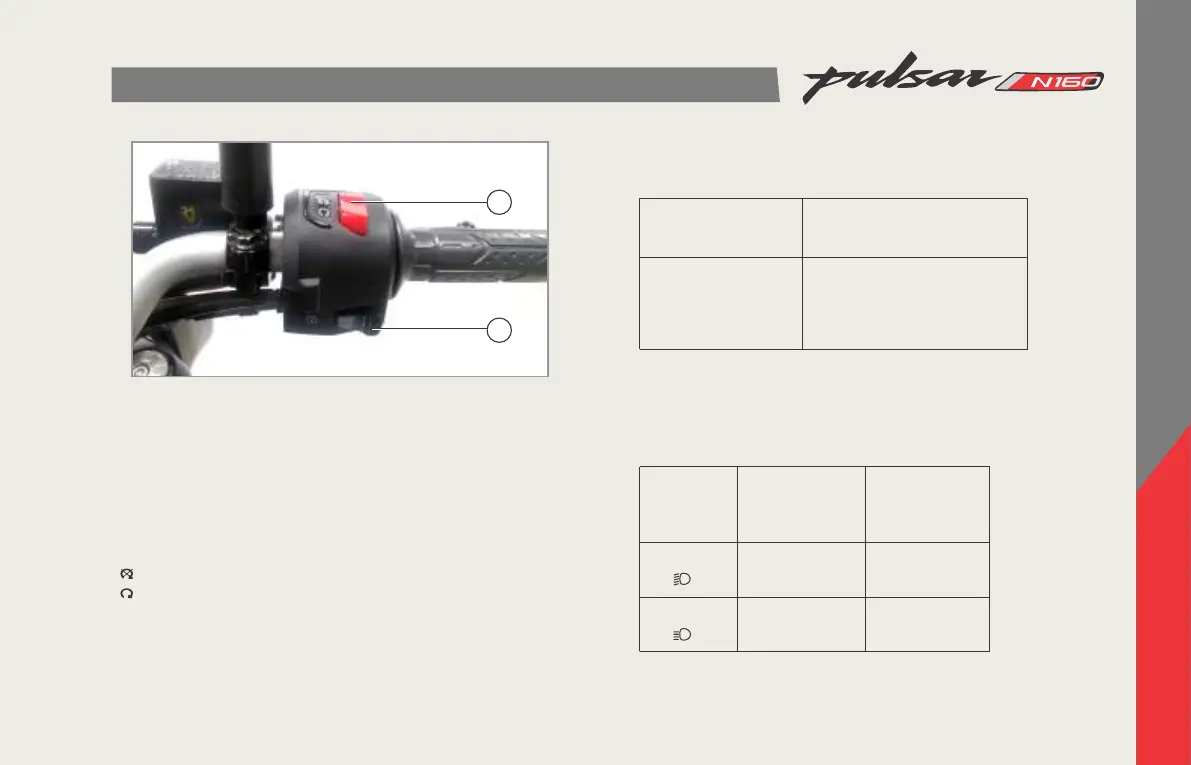

CONTROL SWITCH RH - AHO
Applicable for N160 single channel ABS vehicles
