RIDER SEAT / BATTERY / FITMENT OF RIDER & PILLION SEAT
20

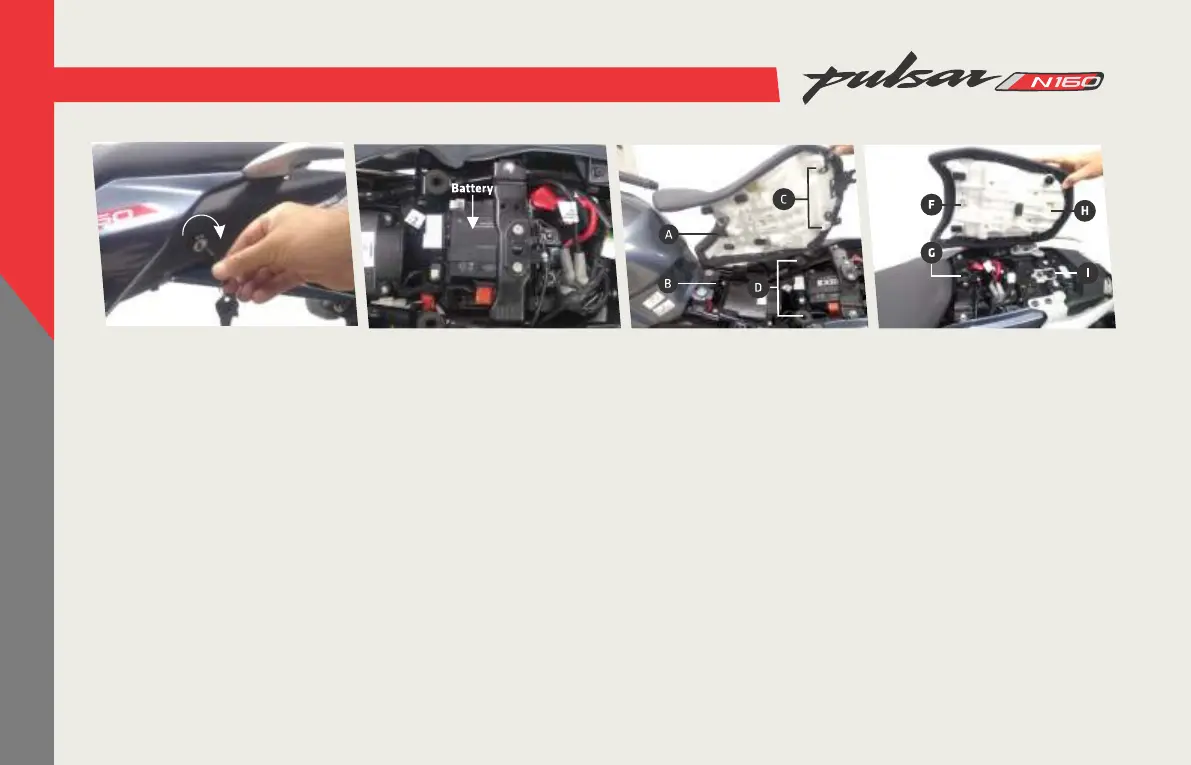

Removal of Rider Seat
• First remove 'Pillion seat'.
• Lift & pull backward rear end of 'Rider Seat'.
• Take out 'Rider seat'.
Battery
• It is located below rider seat.
Fitment of 'Rider Seat'
• Match the mating part (Al of 'Rider seat' with slot (B).
• Push 'Rider seat' towards petrol tank.
• Match 'Rider seat' rear Lugs (C) with the holes (D) provided
on chassis.
Fitment of 'Pillion Seat'
• First make sure 'Rider seat' is fitted properly.
• Match the bracket of 'Pillion seat' (H) with Hook (I).
• Insert lock rod (F) of seat into hook (G).
• Press front portion of seat.
