Specifications and Product Data 6-23MN715

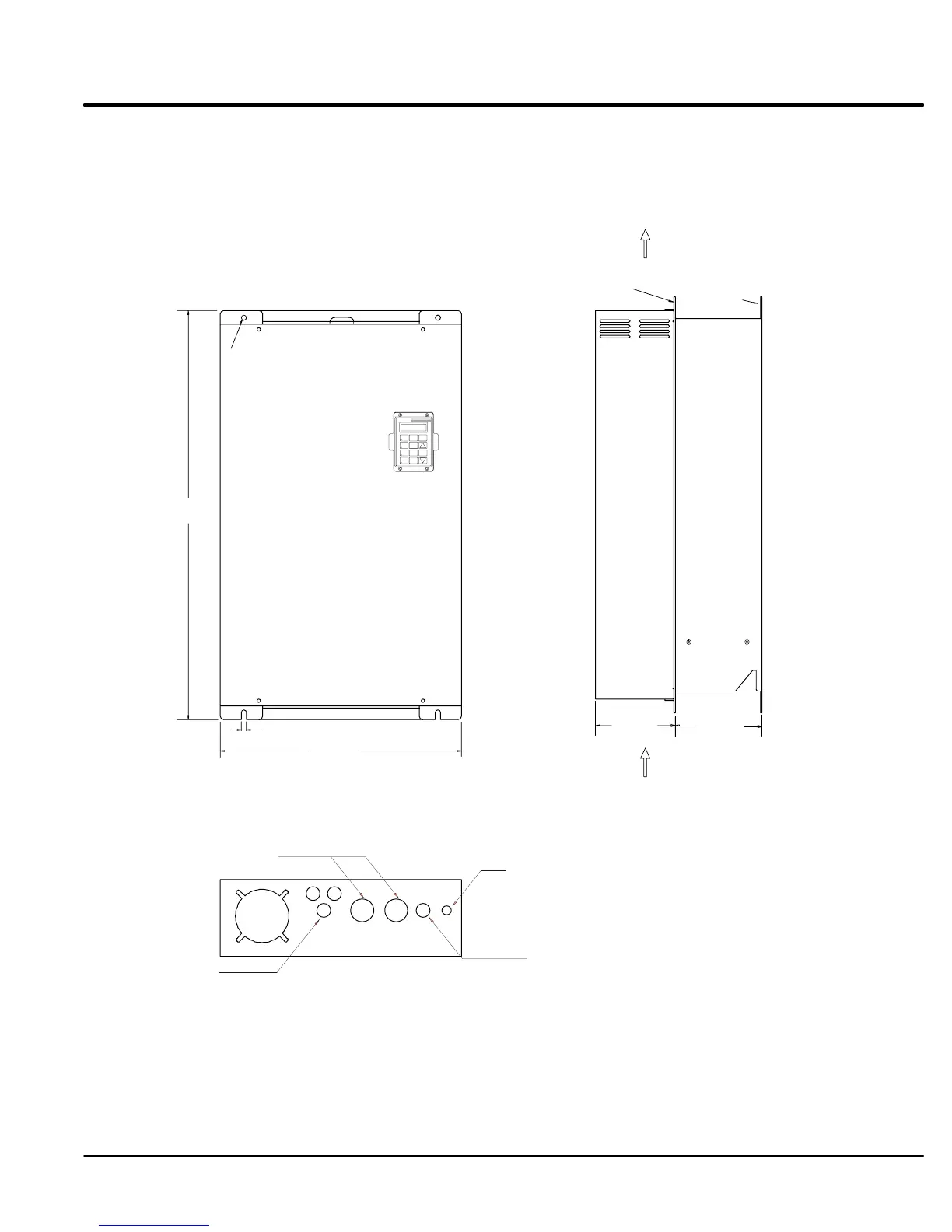

Dimensions Continued
Size E Control
5.75
(146mm)
6.25
(159mm)
30.00
(762mm)
.38
.38 (9.5mm) 2 Places
17.70
(450mm)
Thru–wall
Mounting Flange
Surface
Mounting
Flange
(9.5mm)
2 Places
Air Inlet
Air
Outlet
2.469 Dia.
(62.71 mm)
0.50 Dia.
(12.70 mm)
0.875 Dia.
(22.23 mm)
0.875 Dia.
(22.23 mm)
3 places
