Balex ABL2500 - Page 28

REV DESCRIPTION NAME DATE
A ISSUED FOR DOCUMENTATION SC 13/09/2016
B ISSUED FOR CUSTOMER MANUALS EE 15/12/2016

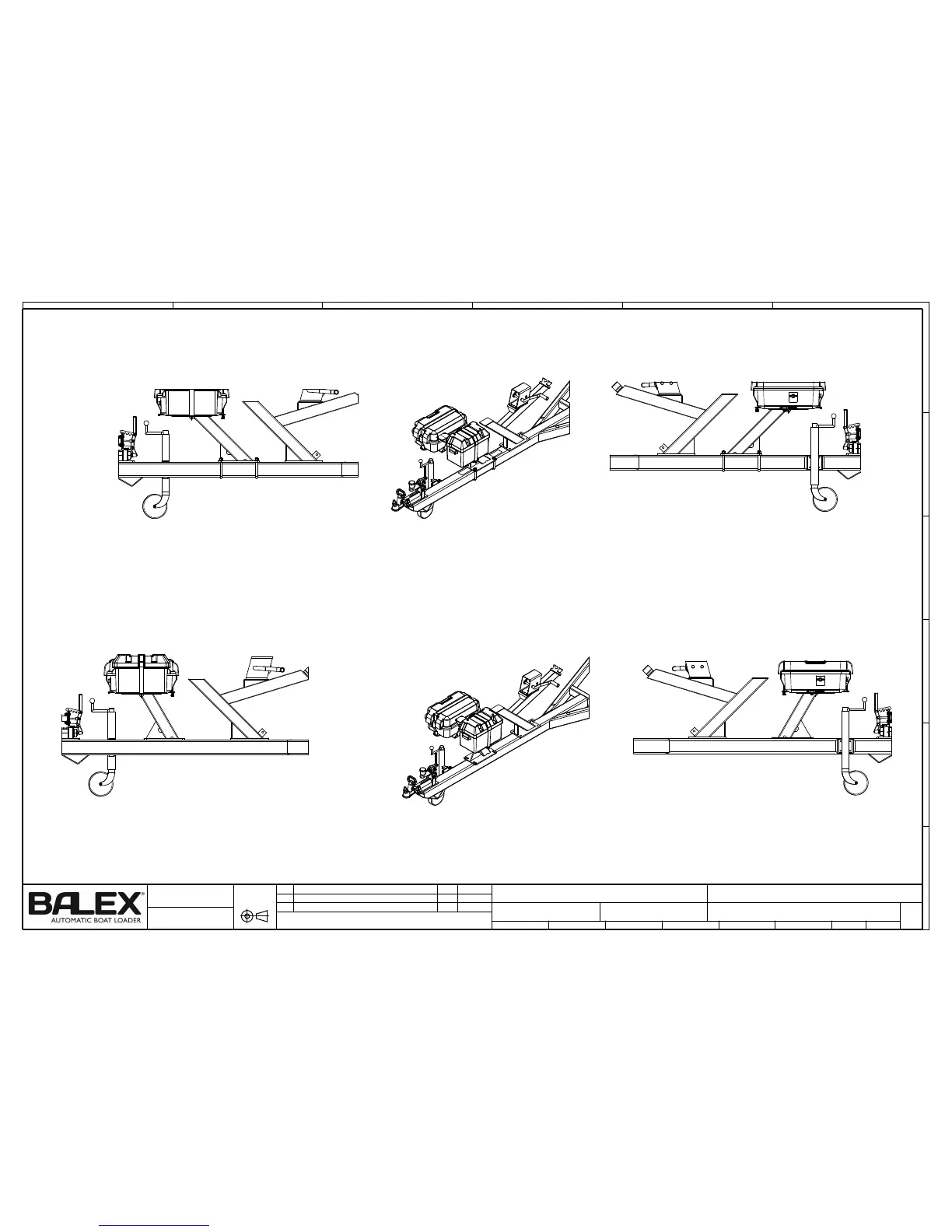

ALTERNATE ASSEMBLY POSITION - DRAWBAR POST MOUNTED (45DEG)
ALTERNATE ASSEMBLY POSITION - DRAWBAR POST MOUNTED (60DEG)
RIGHT VIEW
RIGHT VIEW
ISOMETRIC
ISOMETRIC VIEW
LEFT VIEW
NOTES:
THE RECOMMENDED CONFIGURATION OF THE POWER UNIT ON THE TRAILER IS IDENTIFIED IN THE ACCREDITATION PACK FOR THE PARTICULAR BOAT/TRAILER COMBINATION.BEFORE1.
FINALISING THE POSITION OF THE POWER UNIT, THERE NEEDS TO BE ADEQAUTE CLEARANCE TO THE JOCKEY WHEEL AND TURNING CIRCLE OF THE WINCH HANDLE.2.
WHEN BOLTING DOWN THE POWER CABLES TO THE BATTERY TERMINALS, REMOVE THE FUSE ON THE POSITIVE CABLE. CONFIRM THE POLARITY THEN ATTACH THE NEGATIVE CABLE THEN THE THE POSITIVE. 3.
PS
CHECKED BY
ABL2500-GA-201
1:10PS
APPROVED BY
BALEX MARINE
DWG No.
DRAWN BY
SHEET DESCRIPTION
PROJECT
DRAWN
MOUNTING ARRANGEMENT
5
3
2
4
B
DRAWING PREPARED TO
C
All drawings are confiden tial and copyright
ALL DIMENSIONS IN m m
DO NOT SCALE
disclosed without express pri or consent of the copyrigh t
holder.
whole of this drawing may be reproduced, used o r
1
FA
6
E
Copyright:
Balex Marine and/or the ir respective clients. No part or
15/09/2016
POWER UNIT CONFIGURATIONS
DESCRIPTION
NZS/AS 1100.101:1992
CLIENT
3 / 3 A3
SIZE
207774.33 g
WEIGHT
B
D
SC
ABL2500
SHEETSHEET SCALE
