APPROVED BY
16/09/2016 PS
ABL2500
PS
CLIENT DWG No.
DRAWN BY
SHEET DESCRIPTION
PROJECT
DRAWN

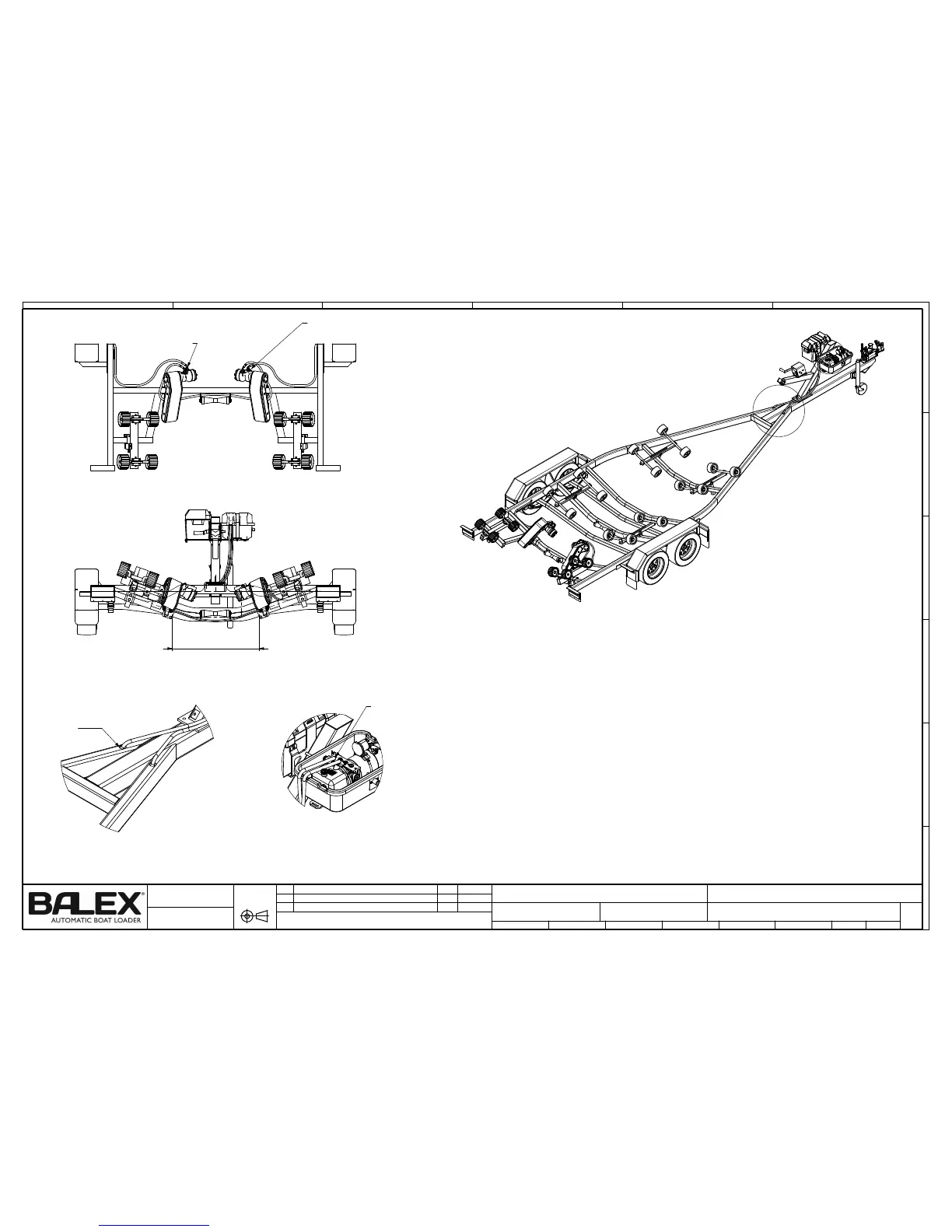

GENERAL ARRANGEMENT
5
3
2
4
B C
All drawings are confiden tial and copyright
1
whole of this drawing may be reproduced, used o r
holder.
disclosed without express pri or consent of the copyrigh t
ALL DIMENSIONS IN m m
DO NOT SCALE
DRAWING PREPARED TO
FA
6
E
Copyright:
Balex Marine and/or the ir respective clients. No part or
NZS/AS 1100.101:1992
HYDRAULIC ROUTING
DESCRIPTION
SIZE
BALEX MARINE
1 / 1
SHEET
1:30 A3
B
WEIGHT
44302.74 g
ABL2500-GA-401
SHEET SCALECHECKED BY
D
SC
Address:
Balex Marine Limite d
PO Box 14367, Tauranga 3143
New Zealand
Phone:
+64 21 466-536
Website:
paul@balexmarine.com
REV DESCRIPTION NAME DATE
A ISSUED FOR DOCUMENTATION SC 16/09/2016
B ISSUED FOR CUSTOMER DOCUMENTATION EE 19/12/2016
NOTES:
WHERE LONG HOSE IS PUSHED THROUGH THE TRAILER CHASSIS. IDENTIFY THE 1.
OPENINGS AND START AT THE SMALLER OF THE TWO OPENINGS. BLOCK OFF THE END OF
THE HOSE USING TAPE WHICH WILL BE PUSHED THROUGH THE TRAILER CHASSIS.
HOSE CAN BE CABLE TIED TO THE CHASSIS WHERE THERE ARE NO DESIGNATED 2.
OPENINGS.
THE HOSE LENGTH BETWEEN THE DRIVE UNITS SHALL BE CUT TO LENGTH.3.
AFTER ASSEMBLING THE HOSES, CABLE TIE BACK TO ENSURE ALL HOSES ARE CLEAR OF 4.
OBSTRUCTIONS AND INTERFERENCE WITH MOVING PARTS.
BEFORE ADDING ANY FITTINGS BE SURE TO CUT THE HOSE TO LENGTH CLEANLY AND 5.
SQUARE.
ALL HYDRAULIC HOSE FITTINGS ARE TO BE SCREWED IN WITH FULL ROTATION TO 6.
ENSURE ROBUST SEAL BETWEEN HOSE AND FITTING.
FIVE HOSES IN TOTAL IN ASSEMBLY. TWO LONG HOSES FROM POWER UNIT TO DRIVE 7.
UNITS. TWO 660MM HOSES CONNECTED ONTO EACH DRIVE UNIT. SINGLE HOSE LINKING
THE TWO DRIVE UNITS.
ELEVATION VIEW
SCALE 1:20
PLAN VIEW
SCALE 1:20
NOTES:
WHERE LONG HOSE IS PUSHED THROUGH THE TRAILER CHASSIS. IDENTIFY THE 1.
OPENINGS AND START AT THE SMALLER OF THE TWO OPENINGS. BLOCK OFF THE END OF
THE HOSE USING TAPE WHICH WILL BE PUSHED THROUGH THE TRAILER CHASSIS.
HOSE CAN BE CABLE TIED TO THE CHASSIS WHERE THERE ARE NO DESIGNATED 2.
OPENINGS.
THE HOSE LENGTH BETWEEN THE DRIVE UNITS SHALL BE CUT TO LENGTH.3.
AFTER ASSEMBLING THE HOSES, CABLE TIE BACK TO ENSURE ALL HOSES ARE CLEAR OF 4.
OBSTRUCTIONS AND INTERFERENCE WITH MOVING PARTS.
BEFORE ADDING ANY FITTINGS BE SURE TO CUT THE HOSE TO LENGTH CLEANLY AND 5.
SQUARE.
ALL HYDRAULIC HOSE FITTINGS ARE TO BE SCREWED IN WITH FULL ROTATION TO 6.
ENSURE ROBUST SEAL BETWEEN HOSE AND FITTING.
FIVE HOSES IN TOTAL IN ASSEMBLY. TWO LONG HOSES FROM POWER UNIT TO DRIVE 7.
UNITS. TWO 660MM HOSES CONNECTED ONTO EACH DRIVE UNIT. SINGLE HOSE LINKING
THE TWO DRIVE UNITS.
DETAIL B
SCALE 1:10
PORT (LEFT) AND STARBOARD (RIGHT)
CONNECTIONS FOR HYDRAULIC HOSE
TO POWER UNIT
DETAIL A
SCALE 1:10
FEED HYDRAULIC
HOSE INTO DESIGNATED
OPENINGS
HOSE CONNECTION
BETWEEN DRIVE UNITS
STARBOARD (RIGHT) SIDE
CONNECTS HERE TO DRIVE UNIT
PORT (LEFT) SIDE
CONNECTS HERE
TO DRIVE UNIT
ISOMETRIC VIEW
A
B
