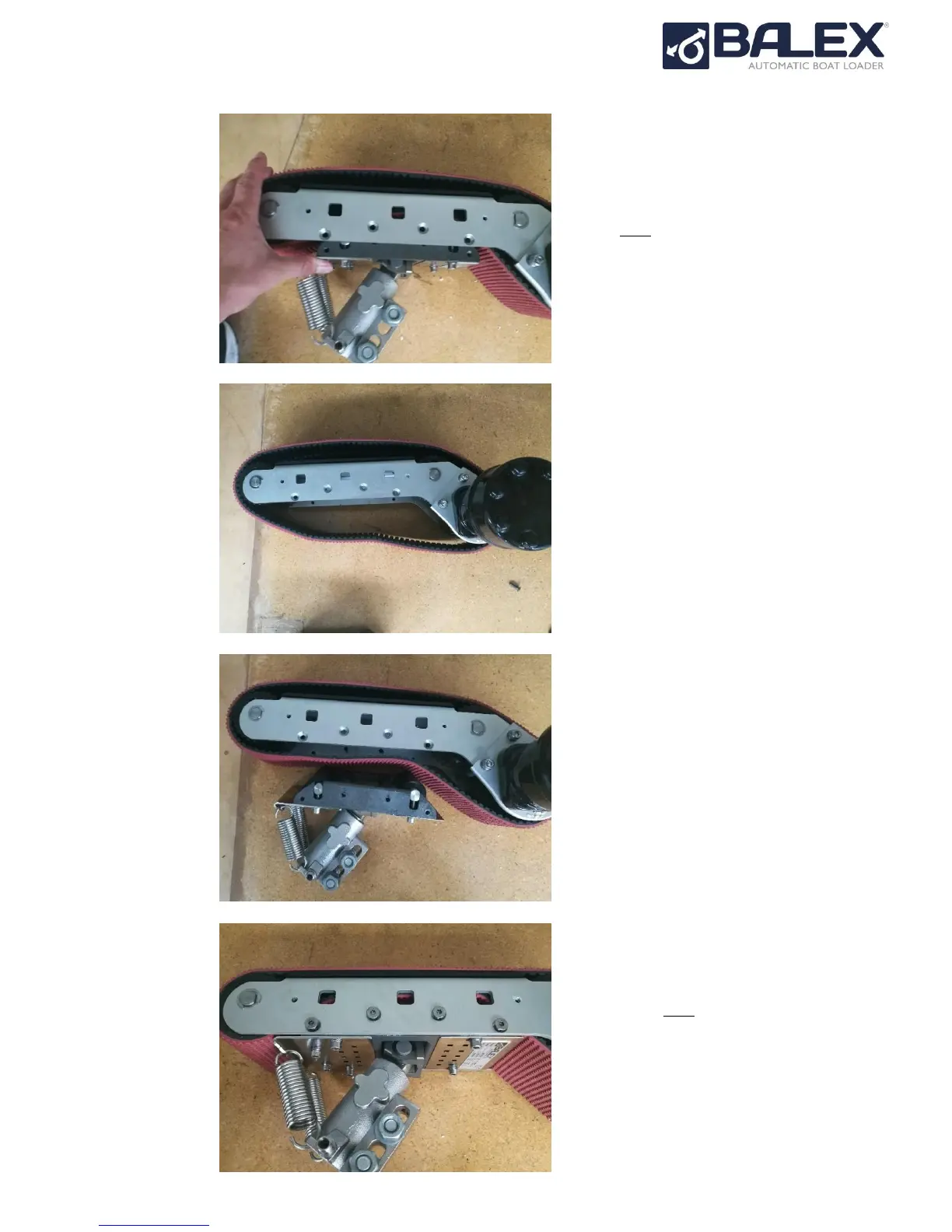

8. Remove the remaining
four screws. The chassis
will drop out of the drive
unit frame.
9. Remove the chassis from
the unit and remove
drive belt.
10. Install the new drive belt
into position and lower
the drive unit over the
chassis. Be careful that
chassis pulleys and axles
maintain their correct
position.
11. Install four screws
(starting with the two
outside screws). Only
screw 50% of their full
depth.
