www.balluff.com 17english

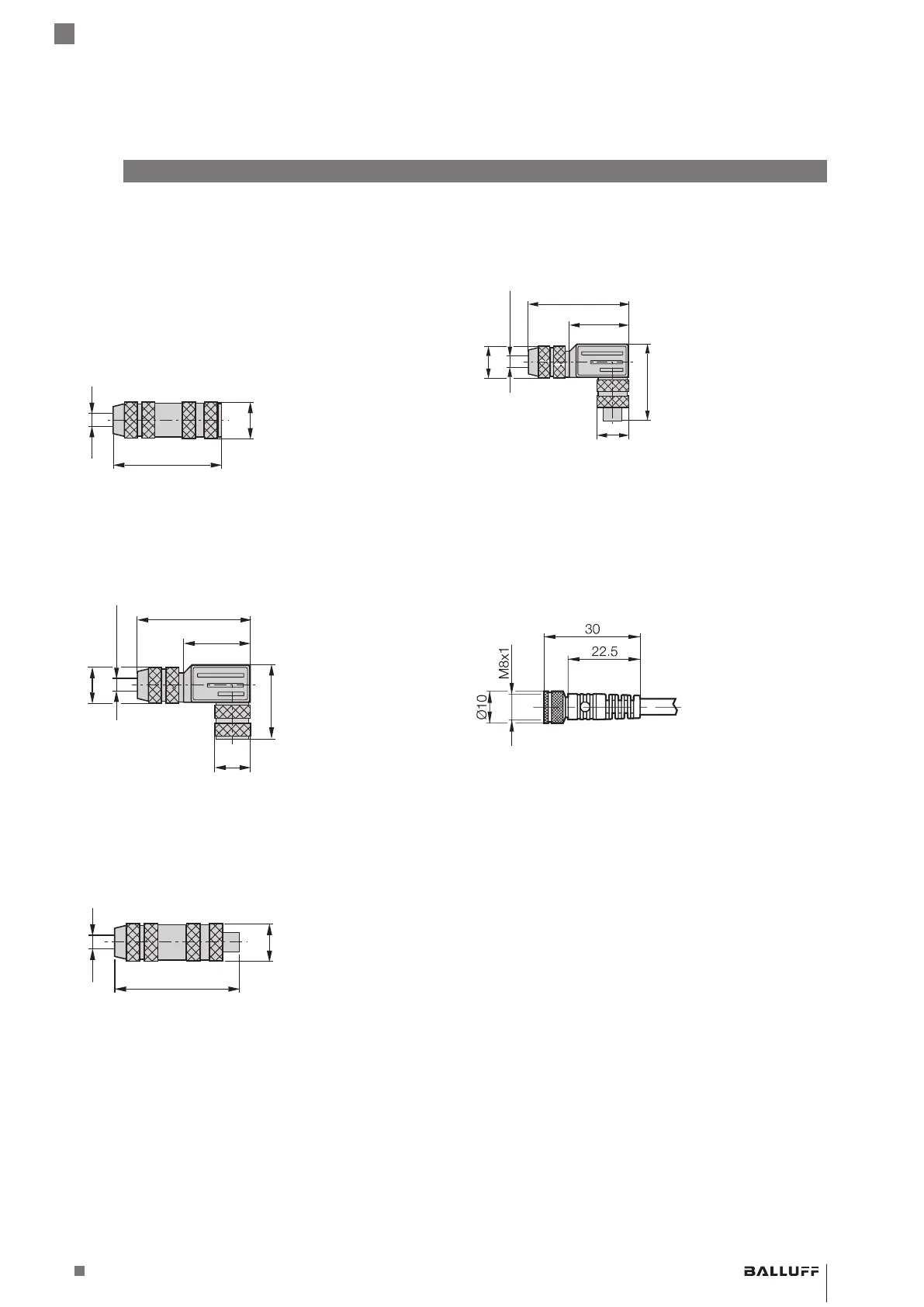

7.4 Connectors and cables
7.4.1 Connector, freely configurable
BKS-S103-00
Straight connector, freely configurable
M12, 5-pole
Cable feed-through (pinch ring PG9)
Fig. 7-10:
~55
Ø 20
Ø 6 - Ø 8
Connector BKS-S103-00 (socket) for BUS IN
BKS-S104-00
Angled connector, freely configurable
M12, 5-pole
Cable feed-through (pinch ring PG9)
Fig. 7-11:
Ø 18
31
36.9
Ø 20
Ø 6 - Ø 8
~54
Connector BKS-S104-00 (socket) for BUS IN
BKS-S105-00
Straight connector, freely configurable
M12, 5-pole
Cable feed-through (pinch ring PG 9)
Fig. 7-12:
~62
Ø 20
Ø 6 - Ø 8
Connector BKS-S105-00 (pin) for BUS OUT
BKS-S106-00
Angled connector, freely configurable
M12, 5-pole
Cable feed-through (pinch ring PG9)
Fig. 7-13:
Ø 18
31
~48
Ø 20
Ø 6 - Ø 8
~54
Connector BKS-S106-00 (pin) for BUS OUT
7.4.2 Connector, preassembled
BKS-S48-15-CP-…
Straight connector, molded, preassembled
M8, 3-pole
Various cable lengths can be ordered,
e.g.BKS-S48-15-CP-05: Cable length 5m
Fig. 7-14: Connector BKS-S48-15-CP-…
7
Accessories (continued)
BTL5-T1 __ -M ____ -P-S103
Magnetostrictive Linear Position Sensor – Profile Style
