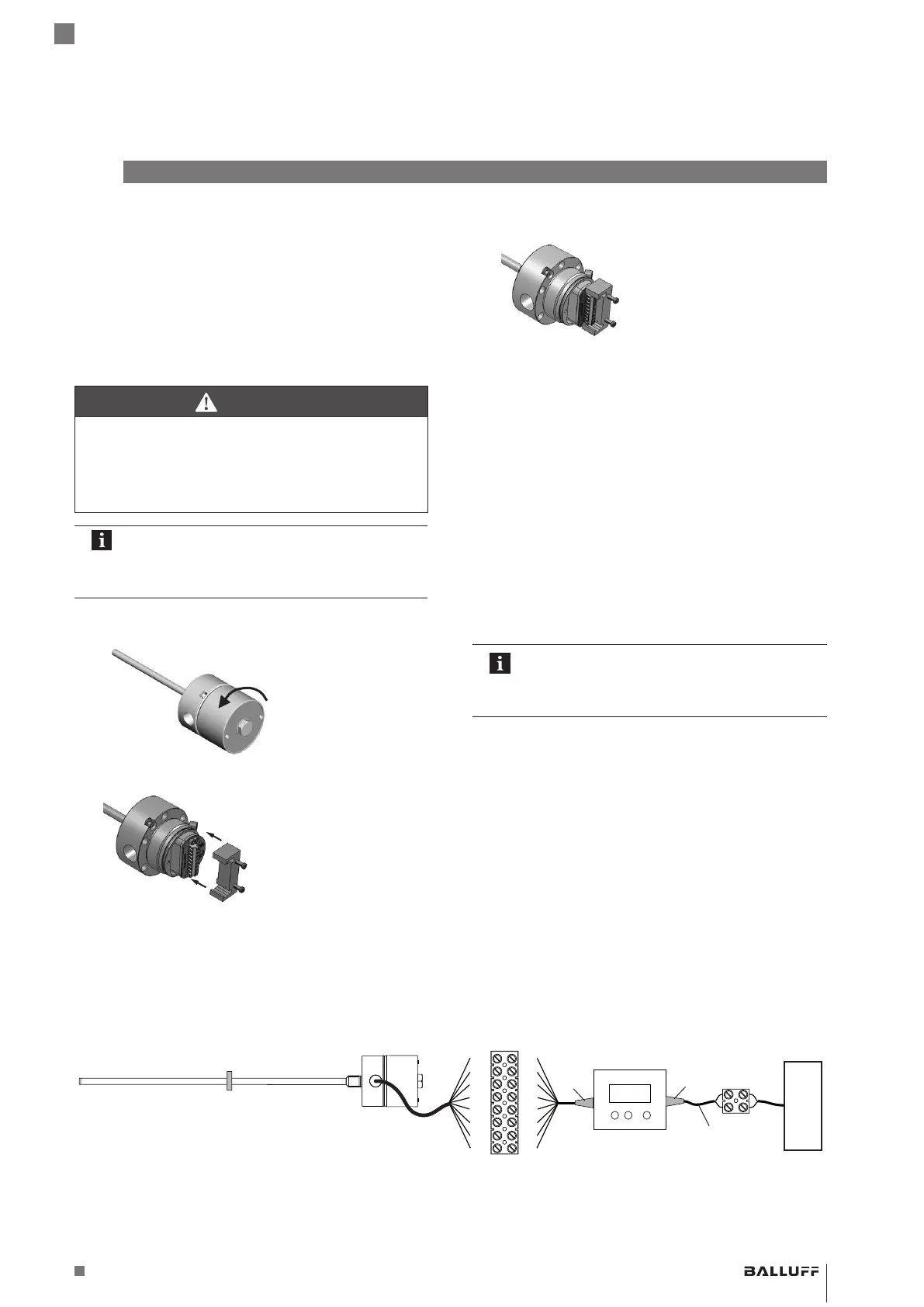

Calibration procedure
The BTL can be programmed with a calibration device (see
Section 6.1) or with the calibration box (see
Programming inputs).
6.1 Calibration device
The calibration device (see Accessories on page29) is
an additional device for calibrating the BTL.
Use calibration device
DANGER
Explosions
Opening the housing can result in sparks which can trigger
explosions in explosive atmospheres.
► Do not open housing when an explosive atmosphere
may be present!
Automatic deactivation!
If the buttons on the calibration device are not
pressed for approx.10min,
programming mode is automatically ended.
1. Unscrew and remove housing cover.
2. Slide calibration device into place.
3. Program BTL (see Sections 6 to 9).
4. Remove calibration device.
5. Re-install the housing cover flush and tighten to
33…40Nm (25…30ft∙lb). Tighten secondary retaining
screws (ATEX).
6.2 Programming inputs
Instead of the calibration device, the programming inputs
may also be used for setup:
– La corresponds to the blue button
– Lb corresponds to the gray button
– A programming input at 10 to 30V corresponds to
activation (high active).
The Balluff BTL7-A-CB02-K calibration box can be used
for this (see Accessories on page29).
Automatic deactivation!
If no signals are transmitted via the
programming inputs for approx.10min,
programming mode is automatically ended.
YE
GY
PK
RD
GN
BU
BN
WH
YE
GY
PK
RD
GN
BU
BN
WH
Fig. 6-1: Connecting the BTL7-A-CB02-K calibration box
BTL
Calibration box
Supply
8-port luster terminal
Adapter cable with
connector (luster
terminal)
6-pin
8-pin
BTL7-A/C/E/G5_ _-M_ _ _ _-J-DEXC-TA12
Magnetostrictive Linear Position Sensor – Rod Style
Type of protection “db” and “ta”
Flameproof enclosure
