Balluff BTL7-E500 Series - Resetting all values (reset)

www.balluff.com 25english
10

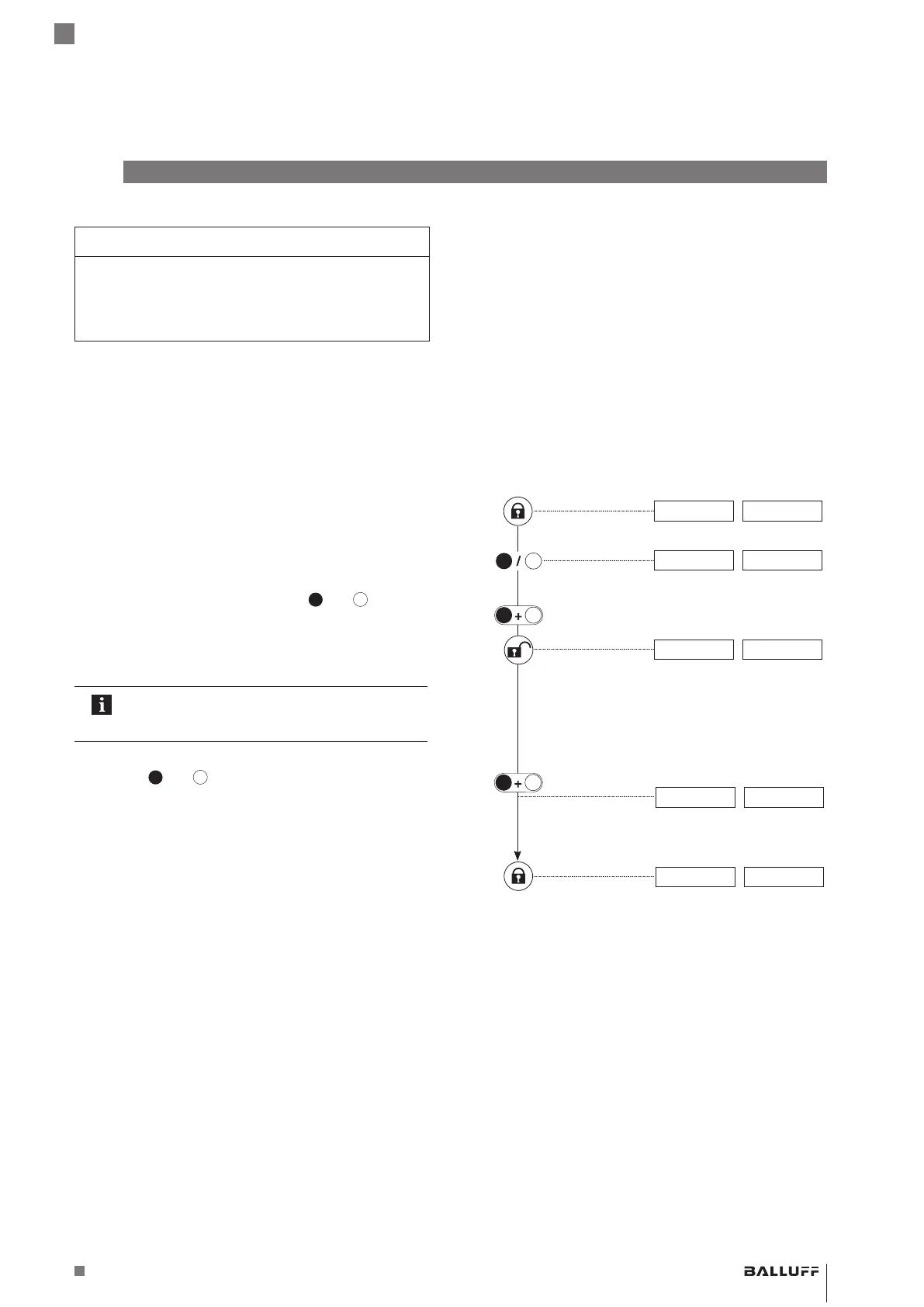

Resetting all values (reset)
NOTICE
Interference in function
Resetting the values while the system is running may
result in malfunctions.
► Stop the system before performing the reset.
The reset function can be used to restore all the settings to
the factory settings. For a reset the magnet may also be
located outside the measuring range.
Displayed values (example)
At 0 to 10 V At 4 to 20 mA
5.39 V 10.80 mA
1. Activate buttons
► Activate any button for at least 3s.
> 3 s
5.39 V 10.80 mA
► Release buttons.
< 1 s
► Simultaneously (within 1s) activate
a
and
b
for at
least 3s.
> 3 s
⇒ Output indicates error value.
10.50 V 3.60 mA
⇒ Buttons are activated.
If an error or an interruption occurs while
activating the buttons, allow a wait time of 12s
before retrying.
2. Reset
► Activate
a
and
b
for at least 6 s.
> 6s
⇒ Output indicates null value.
0.00V 4.00 mA
⇒ All values are reset.
► Release buttons.
⇒ Current position value is displayed.
⇒ Buttons are locked.
8.43 V 15.67 mA
b
a
a
b
a
b
BTL7-A/C/E/G5_ _-M_ _ _ _-J-DEXC-TA12
Magnetostrictive Linear Position Sensor – Rod Style
Type of protection “db” and “ta”
Flameproof enclosure
