Calibration using online setting
NOTICE
Interference in function
Changing the BTL output signal may result in personal
injury and equipment damage if the system is ready for
operation.
► Persons must keep away from the system's
hazardous zones.
In online setting the system is not shut down. The start and
end values are set online.
Maximum setting range for each calibration
procedure:
Start value: ±25% of present stroke
End value: ±25% of present output value
If the desired value cannot be attained in the first
calibration procedure (max. setting range exceeded), the
calibration procedure must be started again.
a
b
a
b
a
b
a
b

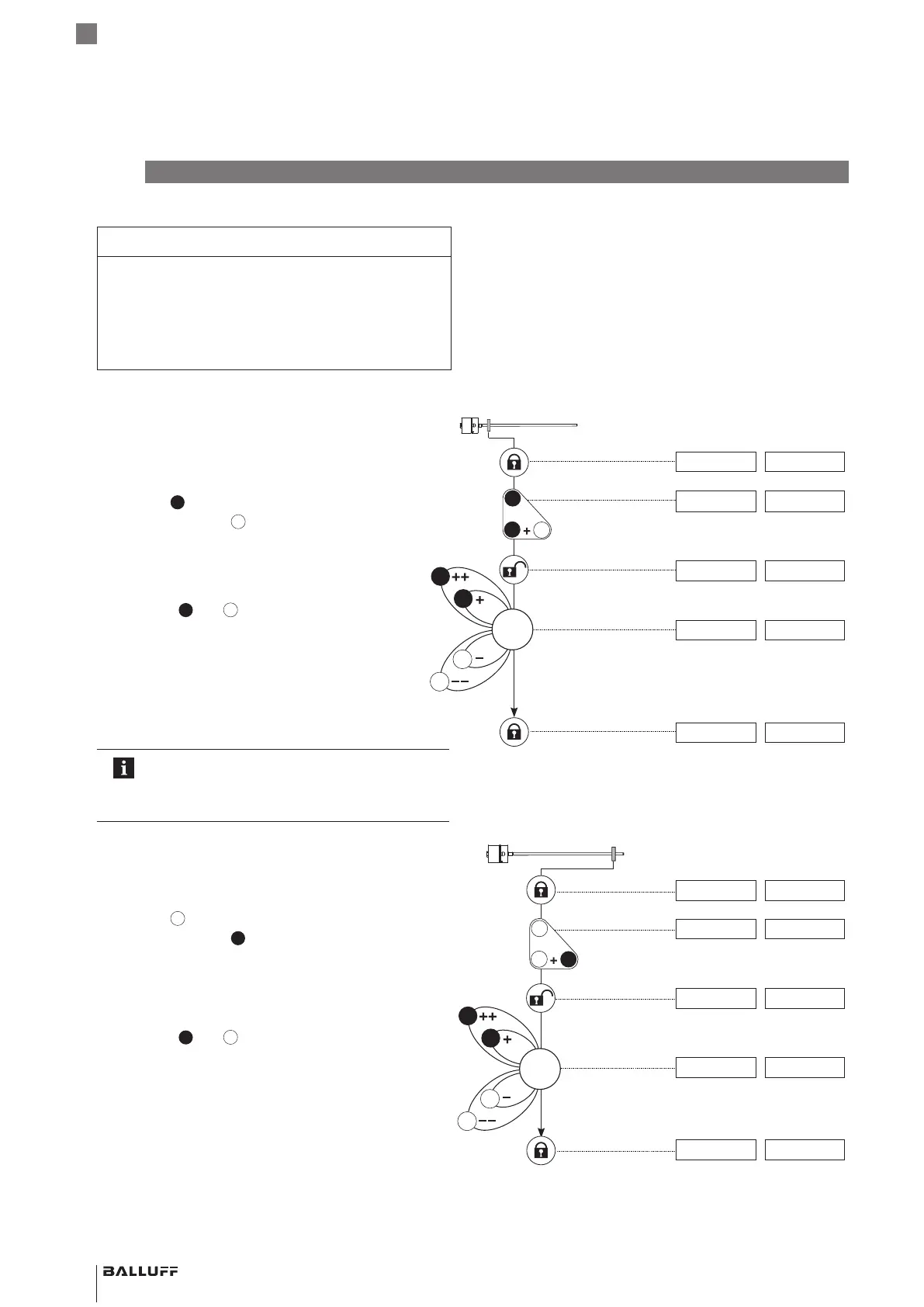

1. Set start value online: Displayed values (example)
► Move the system so that the magnet is in the start
position.
At 0 to 10 V At 4 to 20 mA
5.39 V 12.62 mA
► Activate
a
for at least 3 s.
► Then also activate
b
for at least 3s.
> 3 s
+
> 3 s
b
a
a
5.39 V 12.62 mA
⇒ Buttons are activated.
5.39 V 12.62 mA
► Set start value.
⇒ Using
a
and
b
, you can change the start value
within the permissible setting range
1)
. The gradient
of the output remains constant (see page18).
4.84 V 11.74 mA
► Exit setting (do not activate a button for at least 15 s).
⇒ The start value is saved, the buttons are deactivated.
4.84 V 11.74 mA
After each calibration procedure you must wait
for the lockout time of 15s. This also applies to
switching between the start value and end
value setting.
2. Set end value online: Displayed values (example)
► Move the system so that the magnet is in the end
position.
At 0 to 10 V At 4 to 20 mA
8.72 V 17.95 mA
► Activate
b
for at least 3 s.
► Then also activate
a
for at least 3s.
> 3 s
+
> 3 s
b
b
a
8.72 V 17.95 mA
⇒ Buttons are activated.
8.72 V 17.95 mA
► Set end value.
⇒ Using
a
and
b
, you can change the end value
within the permissible setting range
1)
. The gradient
of the output is changed, but the null value remains
unchanged (see page18).
9.49 V 19.18 mA
► Exit setting (do not activate a button for at least 15s).
⇒ The end value is saved, the buttons are deactivated.
9.49 V 19.18 mA
1) Briefly activate button: Current value is increased or
decreased by approx. 1mV or 1 µA.
If a button is activated longer than 1 s, the step interval is
increased.
