PanelMax installation instructions
4. Kit Contents
10.00°
min
MINIMUM HEAD
ROOM FOR STEEL
RAIL 57mm
DOORS HIGHEST
POINT
210mm
3198mm*
3330mm
157mm
295mm
Rail no Extension Kit 3198mm
Rail + 1 Extension Kit 3988mm
Rail + 2 Extension Kits 4778mm
* Rail refers to 3160 rail
5. Position
Perforated
Angle
The Opener:
a. MUST BE installed in a dry position, protected from weather.
b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener.
c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling.
d. Use the diagram below as a reference when completing the installation.

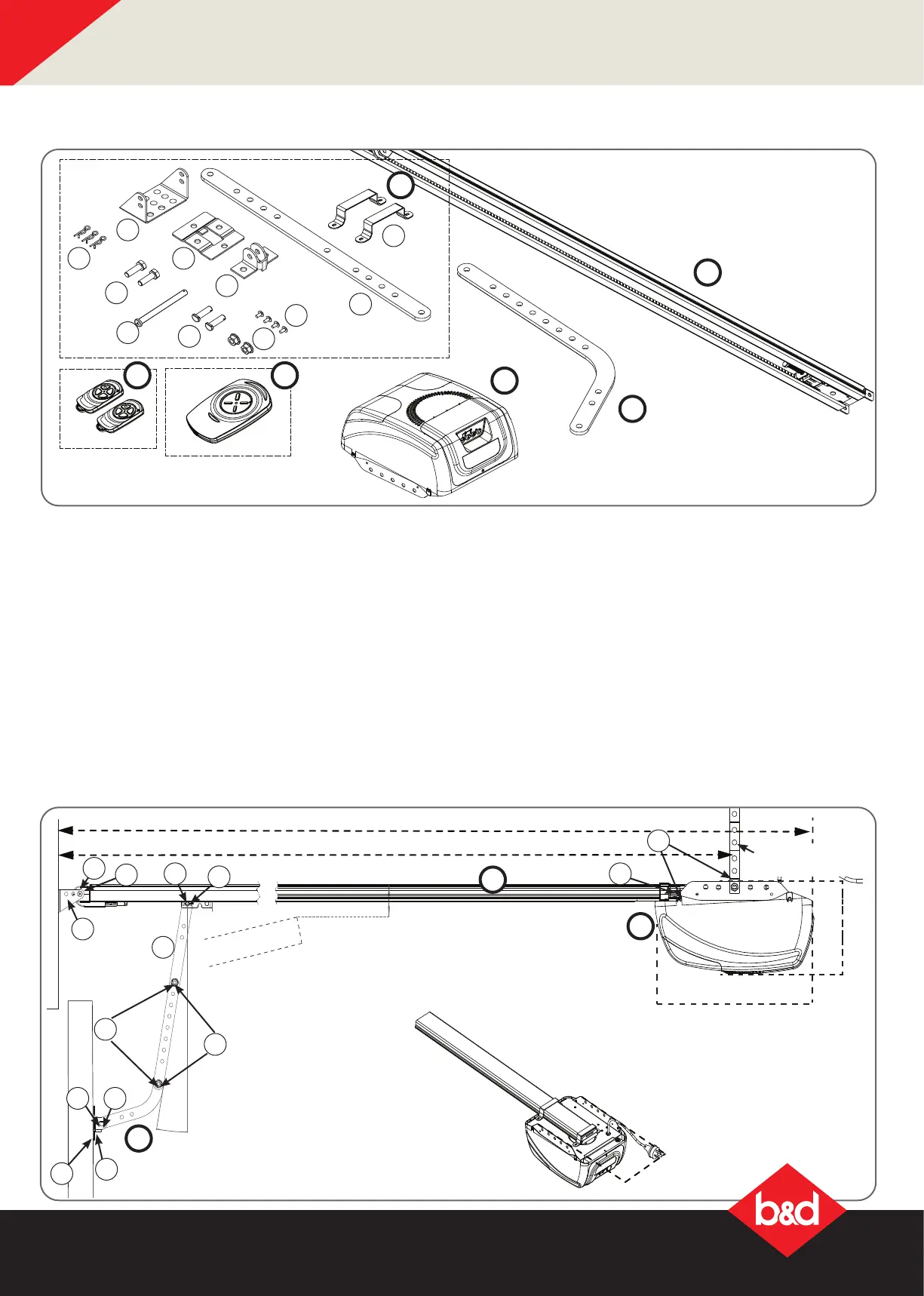

1. 1 x SDO drive unit
2. 1 x Bent arm door attachment
3. 1 x Wall Transmitter
4. 2 x Transmitters
PLUS
5. 1 x Track Hardware Kit
6. 1 x Pre-Assembled track
