Bandit 2290 - Page 116

Bandit
112
Copyright 8/19
MODEL 2290
2
8
7
3
6
1
3
5
4
LOCATION PART NUMBER DESCRIPTION

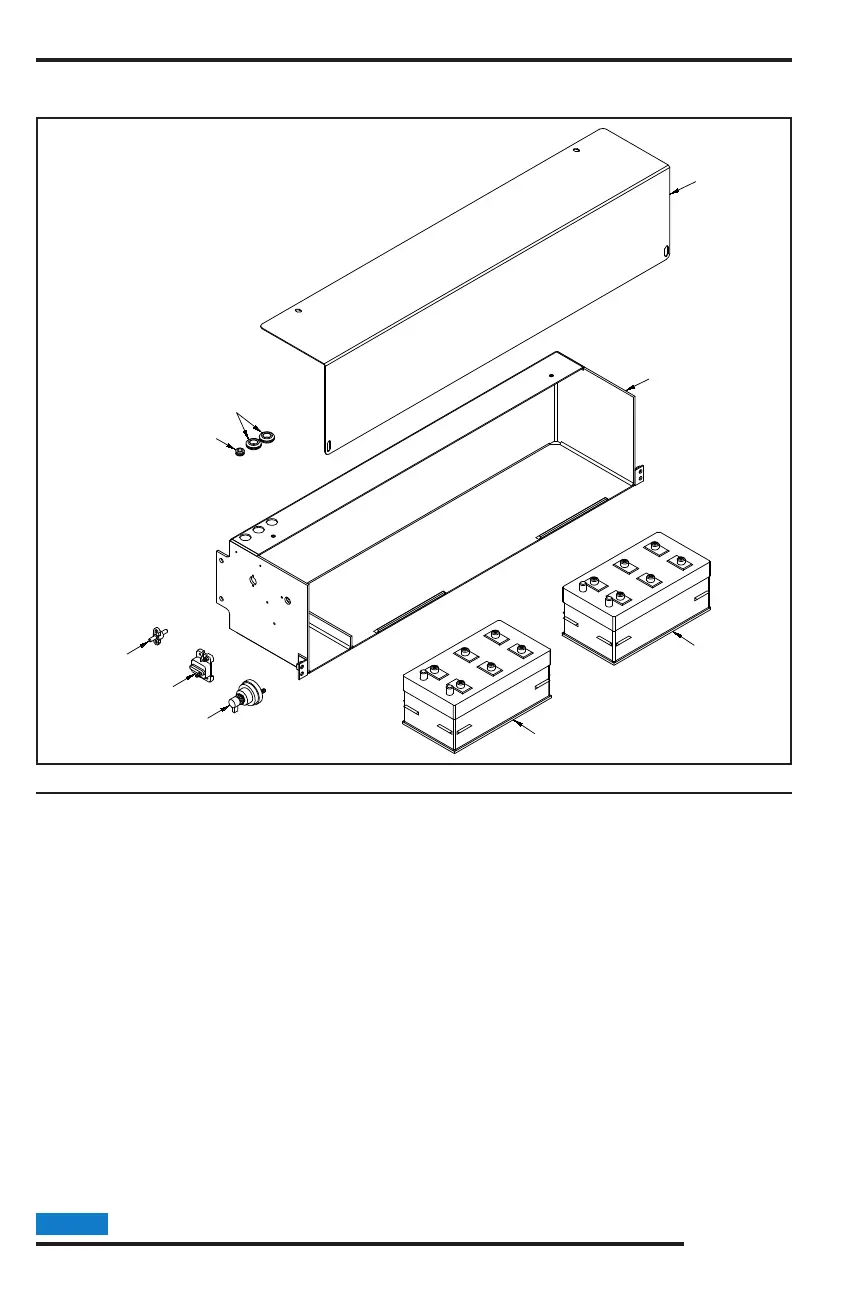

BATTERY BOX COMPONENTS
Parts may not be exactly as shown.NOTICE
1. 259-1001-63 Battery Box Assembly (24V)
2. 259-3002-35 8D Battery Box Lid
3. 900-6907-88 8D MHD Battery
4. 900-6907-66 Master Battery Disconnect Switch
5. 900-2914-81 Circuit Breaker
6. 900-2914-83 Stud Feed Through Junction Block
7. 900-7900-10 7/8” OD Rubber Grommett
8. 900-7900-90 1 5/8” OD Rubber Grommett
24 VOLT
