Bandit 2290 - Electrical; Typical Electrical Wiring Diagrams

Bandit
86
Copyright 8/19
MODEL 2290
6 Wire Main Cable Color Code
Red R (Brake Light)
White W (Ground)
Green G (Right Turn)
Yellow Y (Left Turn)
Black BL (Running Lights)
Brown BR (N/A)

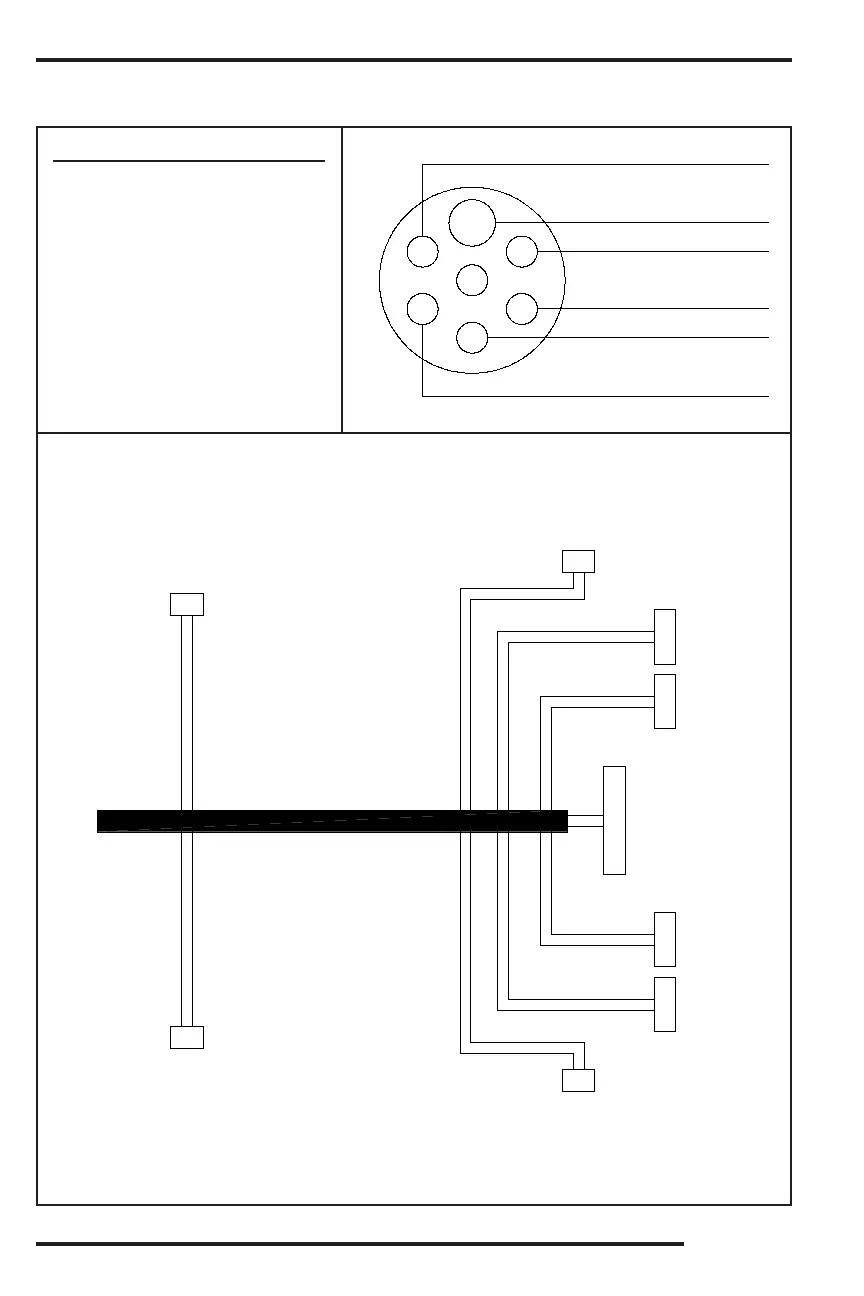

TYPICAL ELECTRICAL WIRING DIAGRAMS
6 = BROWN - N/A
1 = WHITE - GROUND
2 = BLACK - RUNNING LIGHT
3 = YELLOW - LEFT TURN
4 = RED - BRAKE LIGHT
5 = GREEN - RIGHT TURN
6 WIRE MAIN CABLE
WBL
WBL
AMBER
MARKER
LIGHT
AMBER
MARKER
LIGHT
RED
MARKER
LIGHT
RED
MARKER
LIGHT
LEFT
TURN
LIGHT
RIGHT
TURN
LIGHT
BRAKE
LIGHT
BRAKE
LIGHT
3 LIGHT
MARKER
BAR
BL
BL
BL
BL
BL
BL
BL
R
G
W
W
W
Y
R
ELECTRICAL
