MODEL 2290 CHIPPER KNIFE & HARDWARE
Parts may not be exactly as shown.NOTICE
KNIFE BOLTS MUST BE INSTALLED THROUGH KNIFE AS SHOWN.
NOTICE
Torque Knife Bolt to 210 ft.-lbs. (285 Nm)
Torque Knife Holder Bolt to 250 ft.-lbs. (339 Nm) with Loctite 243 (Blue)
Torque Counter Knife Bolts to 15 ft.-lbs. (20 Nm) with Loctite 243 (Blue)
LOCATION PART NUMBER DESCRIPTION
Knife Holders, Knife Holder Bolts, & Knife Gauges for
other chip sizes available upon request.
BABBITT STYLE KNIFE
LOCATION PART NUMBER DESCRIPTION
1. 500-0001-16 Knife Saver Kit
2. 900-9901-65 File For Knife Saver Kit Only
3. 900-9914-29 Replacement Blades For Knife Saver
4. 900-9914-24 Knife Changing Gloves
KNIFE SAVER KIT

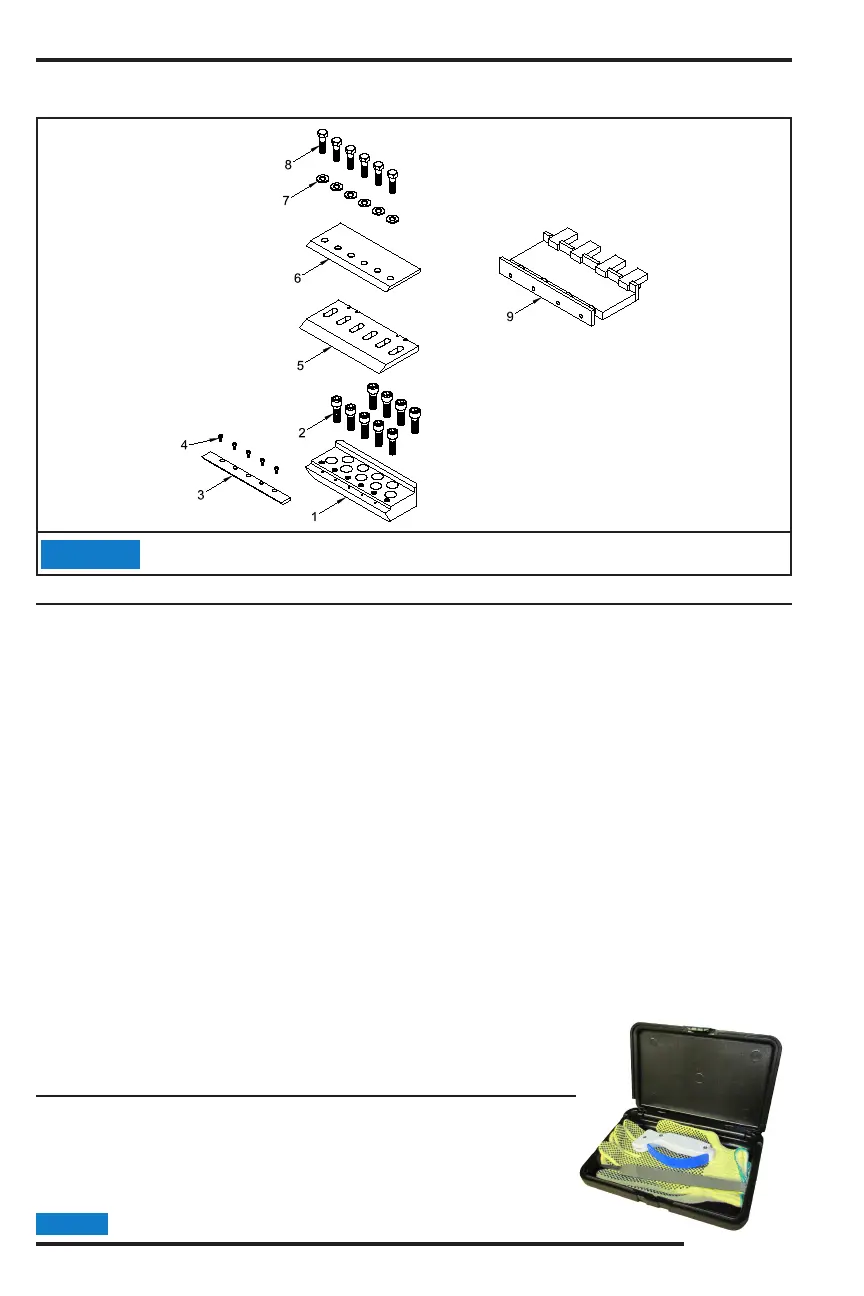

1. 959-3003-46 Knife Holder - Babbitt Style Knife - 5/8” Chip Size (Requires Counter Knife)
2. 900-4914-30 3/4”-10NC x 2 1/4” SHCS Knife Holder Bolt
3. 959-3003-45 Counter Knife
4. 900-4909-76 1/4”-20NC x 1/2” SHCS Counter Knife Bolt - 5/8” Chip Size
5. 900-9906-73 Knife - Babbitt Style
6. 938-3013-37 Top Clamp
7. 900-4901-32 5/8” Mill Carb Washer
8. 900-4914-27 5/8”-18NF x 2 1/4” Hex Head Bolt
9. 959-1000-02 Knife Gauge - 5/8” Chip Size
10. 900-9906-90 Ladle (Not Shown)
11. 900-9900-60 Bar Of Babbitt (Not Shown)
